How can I get a price quote for Siemens 3SE7310-1AE00?

You can request a fast quote for Siemens 3SE7310-1AE00 from Yılsa Engineering. Reference part number CEY-8EF3B0390D62. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE7310-1AE00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE7310-1AE00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE7310-1AE00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

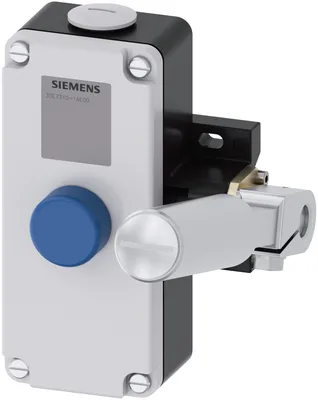

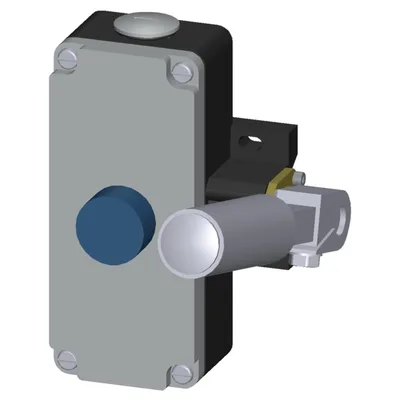

Siemens 3SE7310-1AE00

Conveyor belt unbalance tracker Metal enclosure, 2 x M25 x 1.5 2 NO+2 NC, with latching according to EN ISO 13850 Pushbutton release

SiemensMFR # 3SE7310-1AE00SKU # CEY-8EF3B0390D62

product brand nameSIRIUS

product designationconveyor belt unbalance device

product type designation3SE7

product function EMERGENCY STOP functionNo

product component light sourceNo

insulation voltage rated value400 V

Have questions?Chat on WhatsApp

About This Product

Conveyor belt unbalance tracker Metal enclosure, 2 x M25 x 1.5 2 NO+2 NC, with latching according to EN ISO 13850 Pushbutton release

Siemens 3SE7310-1AE00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationconveyor belt unbalance device

product type designation3SE7

General technical data

product function EMERGENCY STOP functionNo

product component light sourceNo

insulation voltage rated value400 V

degree of pollutionclass 3

surge voltage resistance rated value6 kV

protection class IPIP65

mechanical service life (operating cycles) typical100 000

thermal current6 A

reference code according to IEC 81346-2S

continuous current of the DIAZED fuse link gG6 A

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight1.89 kg

Ambient conditions

ambient temperature during operation-25 ... +70 °C

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts2

at 240 V rated value6 A

at 400 V rated value6 A

at 24 V rated value3 A

at 250 V rated value0.27 A

Enclosure

material of the enclosuremetal

material of the enclosure coverMetal

product component EMERGENCY STOP deviceNo

of the enclosureblack

of the enclosure top partgrey

coating of the enclosurepainted

Display

product function status displayNo

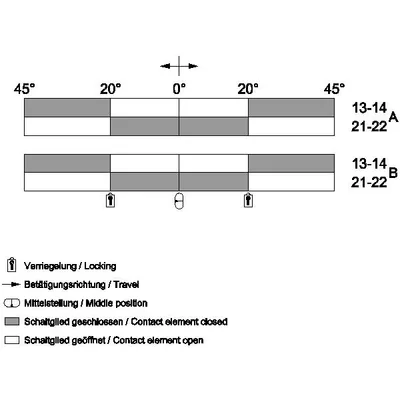

circuit principleJump function

material of the contactSilver

number of switching contacts safety-related2

cable entry type2x M25 x 1,5

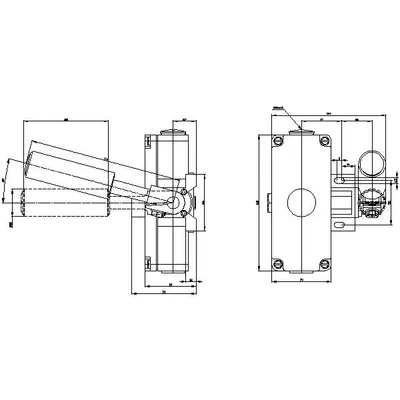

Installation/ mounting/ dimensions

fastening methodscrew fixing

height160 mm

width135 mm

depth206 mm

Connections/ Terminals

type of electrical connectionscrew terminal

solid2x (0.5 ... 2.5 mm²)

finely stranded with core end processing2x (0.5 ... 2.5 mm²)

for AWG cables solid2x (20 ... 14)

for AWG cables stranded2x (20 ... 14)

Safety related data

proportion of dangerous failures with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 31920100 000
