How can I get a price quote for Siemens 3SE7150-1BF00?

You can request a fast quote for Siemens 3SE7150-1BF00 from Yılsa Engineering. Reference part number CEY-8EF3B0302AD3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE7150-1BF00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE7150-1BF00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE7150-1BF00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

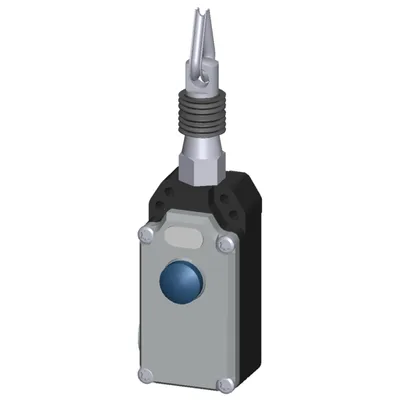

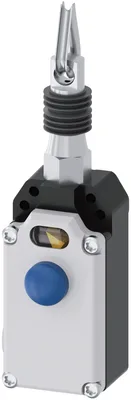

Siemens 3SE7150-1BF00

cable-operated switch metal enclosure, 2 xM20 x1.5; 2 NC, with latching according to EN ISO 13850 and button reset, for wire lengths up to 20 m

SiemensMFR # 3SE7150-1BF00SKU # CEY-8EF3B0302AD3

product brand nameSIRIUS

product designationcable-operated switch

product type designation3SE7

product function EMERGENCY STOP functionYes

product component light sourceNo

insulation voltage rated value400 V

Have questions?Chat on WhatsApp

About This Product

cable-operated switch metal enclosure, 2 xM20 x1.5; 2 NC, with latching according to EN ISO 13850 and button reset, for wire lengths up to 20 m

Siemens 3SE7150-1BF00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationcable-operated switch

product type designation3SE7

General technical data

product function EMERGENCY STOP functionYes

product component light sourceNo

insulation voltage rated value400 V

degree of pollutionclass 3

surge voltage resistance rated value6 kV

protection class IPIP65

mechanical service life (operating cycles) typical100 000

thermal current6 A

reference code according to IEC 81346-2S

continuous current of the DIAZED fuse link gG6 A

Substance Prohibitance (day/month/year)07/01/2006

Net Weight426.54 g

Ambient conditions

ambient temperature during operation-25 ... +70 °C

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts0

at 240 V rated value6 A

at 400 V rated value6 A

at 24 V rated value3 A

at 250 V rated value0.27 A

Enclosure

material of the enclosuremetal

material of the enclosure coverPlastic

product component EMERGENCY STOP deviceNo

of the enclosureblack

of the enclosure top partgrey

coating of the enclosurepainted

Display

product function status displayYes

circuit principleJump function

material of the contactSilver

number of switching contacts safety-related2

cable entry type2x M20 x 1,5

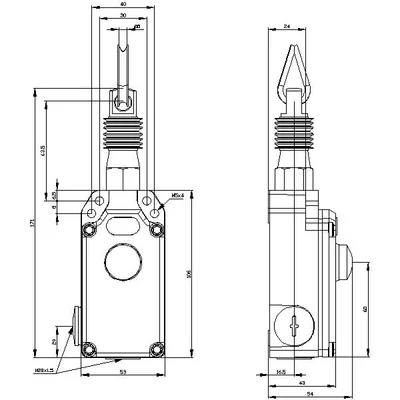

Installation/ mounting/ dimensions

fastening methodscrew fixing

height171 mm

width52 mm

depth54 mm

Connections/ Terminals

type of electrical connectionscrew terminal

solid2x (0.5 ... 2.5 mm²)

finely stranded with core end processing2x (0.5 ... 2.5 mm²)

for AWG cables solid2x (20 ... 14)

for AWG cables stranded2x (20 ... 14)

Safety related data

proportion of dangerous failures with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 31920100 000

Accessories 9

Genuine accessories that can be used with the Siemens 3SE7150-1BF00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SE7921-1AA	Aksesuar · Miscellaneous accessories · fixing elements
3SE7921-1AC	Aksesuar · Miscellaneous accessories · rollers
3SE7950-1AB	Aksesuar · Miscellaneous accessories · turnbuckles
3SX3235	Aksesuar · Miscellaneous accessories · LEDs
3SE7931-1AD	Aksesuar · Miscellaneous accessories · springs
3SE7920-1AB	Seçmeli zorunlu ürün · Miscellaneous accessories · bolts
3SE7930-1AD	Seçmeli zorunlu ürün · Miscellaneous accessories · cable eyes
3SE7941-1AC	Seçmeli zorunlu ürün · Miscellaneous accessories · cable clamps
3SE7910-3AC	Seçmeli zorunlu ürün · Miscellaneous accessories · steel cables
