Siemens 3SE7141-1EG10-0CA1

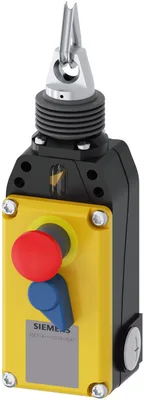

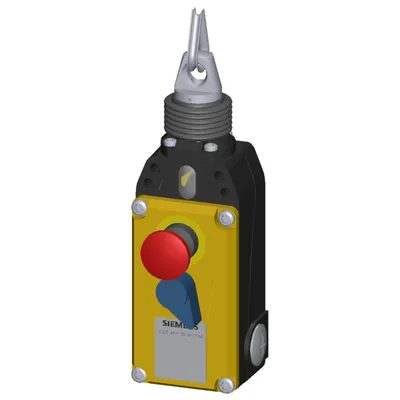

cable-operated switch with emergency stop metal enclosure IP67, yellow cover, 3 xM20 x1.5; slow-action contacts 1 NO+3 NC; latching according to EN ISO 13850, with rotate-to-unlatch mechanism, for cable lengths up to 75 m

SiemensMFR # 3SE7141-1EG10-0CA1SKU # YLSMMRDSUMFCS

product brand nameSIRIUS

product designationcable-operated switch

product type designation3SE7

product function EMERGENCY STOP functionYes

product component light sourceNo

insulation voltage rated value250 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE7141-1EG10-0CA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationcable-operated switch

product type designation3SE7

General technical data

product function EMERGENCY STOP functionYes

product component light sourceNo

insulation voltage rated value250 V

degree of pollutionclass 3

surge voltage resistance rated value2.5 kV

protection class IPIP67

mechanical service life (operating cycles) typical100 000

thermal current2 A

reference code according to IEC 81346-2S

continuous current of the DIAZED fuse link gG2 A

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight0.782 kg

Ambient conditions

ambient temperature during operation-25 ... +70 °C

number of NC contacts for auxiliary contacts3

number of NO contacts for auxiliary contacts1

at 240 V rated value6 A

at 24 V rated value2 A

at 250 V rated value0.25 A

Enclosure

material of the enclosuremetal

material of the enclosure coverPlastic

product component EMERGENCY STOP deviceYes

of the enclosureblack

of the enclosure top partyellow

coating of the enclosurepainted

Display

product function status displayYes

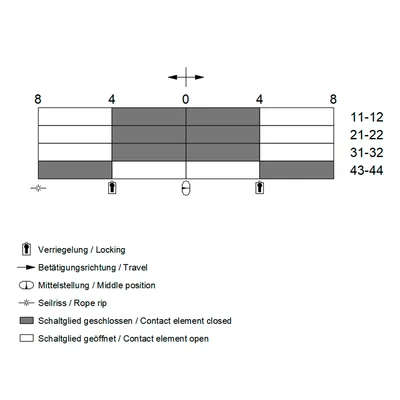

circuit principleSlow-action function

material of the contactSilver

number of switching contacts safety-related3

cable entry type3x M20 x 1,5

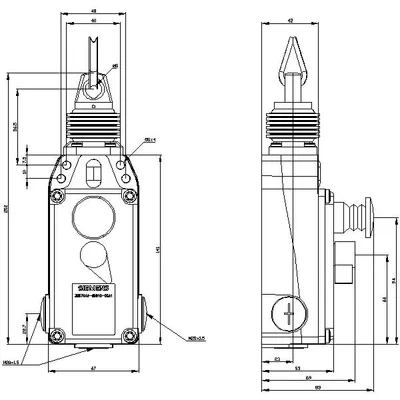

Installation/ mounting/ dimensions

fastening methodscrew fixing

height201 mm

width67 mm

depth83 mm

Connections/ Terminals

type of electrical connectionscrew terminal

solid2x (0.5 ... 2.5 mm²)

finely stranded with core end processing2x (0.5 ... 2.5 mm²)

for AWG cables solid2x (20 ... 14)

for AWG cables stranded2x (20 ... 14)

Safety related data

proportion of dangerous failures with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 31920100 000

Product information

EAN4047621090030

UPC195125270220

Product familySIRIUS 3SE71 cable-operated switches

Life cycle statusActive

Commodity code85365080

Delivery and logistics

Country of originGermany

Standard delivery time5 Day/Days

ReturnableYes

Net weight0.782 Kg

Packaging dimensions (L x W x H)271 x 116 x 101 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-07-06

WEEE category5

REACH informationLead CAS-No. 7439-92-1 > 0,1 % (w / w)

SCIP number46a5b3ec-3c24-4448-ba61-686bf96fa0c0

Siemens catalog

Product group3750

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term

Accessories 9

Genuine accessories that can be used with the Siemens 3SE7141-1EG10-0CA1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SE7921-1AA	Aksesuar · Miscellaneous accessories · fixing elements
3SE7921-1AC	Aksesuar · Miscellaneous accessories · rollers
3SE7950-1AB	Aksesuar · Miscellaneous accessories · turnbuckles
3SX3235	Aksesuar · Miscellaneous accessories · LEDs
3SE7920-1AB	Seçmeli zorunlu ürün · Miscellaneous accessories · bolts
3SE7930-1AD	Seçmeli zorunlu ürün · Miscellaneous accessories · cable eyes
3SE7941-1AC	Seçmeli zorunlu ürün · Miscellaneous accessories · cable clamps
3SE7931-1AD	Seçmeli zorunlu ürün · Miscellaneous accessories · springs
3SE7910-3AH	Seçmeli zorunlu ürün · Miscellaneous accessories · steel cables
