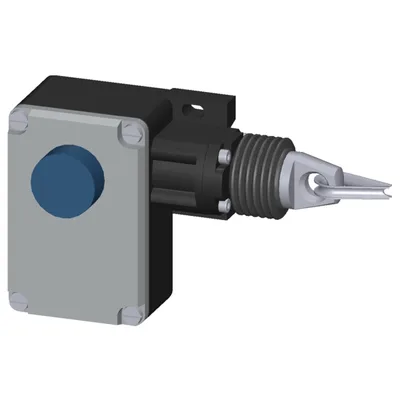

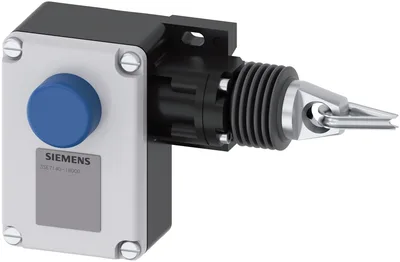

Siemens 3SE7140-1BD00

Cable-operated switch Metal enclosure, 1x M20x1.5; 1 NO+1 NC, latching EN ISO 13850 and pushbutton release, for wire lengths up to 50 m

SiemensMFR # 3SE7140-1BD00SKU # CEY-8EF3B02EE601

product brand nameSIRIUS

product designationcable-operated switch

product type designation3SE7

product function EMERGENCY STOP functionYes

product component light sourceNo

insulation voltage rated value400 V

Have questions?Chat on WhatsApp

About This Product

Cable-operated switch Metal enclosure, 1x M20x1.5; 1 NO+1 NC, latching EN ISO 13850 and pushbutton release, for wire lengths up to 50 m

Siemens 3SE7140-1BD00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationcable-operated switch

product type designation3SE7

General technical data

product function EMERGENCY STOP functionYes

product component light sourceNo

insulation voltage rated value400 V

degree of pollutionclass 3

surge voltage resistance rated value6 kV

protection class IPIP65

mechanical service life (operating cycles) typical100 000

thermal current6 A

reference code according to IEC 81346-2S

continuous current of the DIAZED fuse link gG6 A

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.789 kg

Ambient conditions

ambient temperature during operation-25 ... +70 °C

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

at 240 V rated value6 A

at 400 V rated value6 A

at 24 V rated value3 A

at 250 V rated value0.27 A

Enclosure

material of the enclosuremetal

material of the enclosure coverPlastic

product component EMERGENCY STOP deviceNo

of the enclosureblack

of the enclosure top partgrey

coating of the enclosurepainted

Display

product function status displayNo

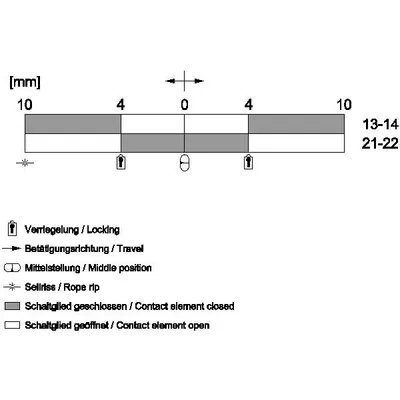

circuit principleJump function

material of the contactSilver

number of switching contacts safety-related1

cable entry type1x M20 x 1,5

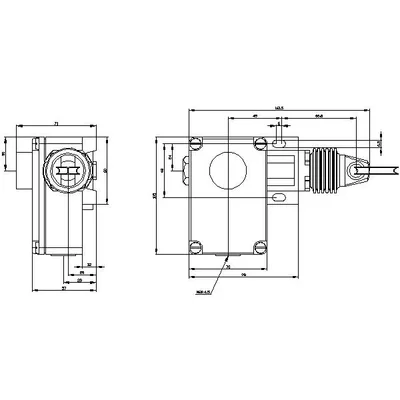

Installation/ mounting/ dimensions

fastening methodscrew fixing

height105 mm

width167 mm

depth71 mm

Connections/ Terminals

type of electrical connectionscrew terminal

solid2x (0.5 ... 2.5 mm²)

finely stranded with core end processing2x (0.5 ... 2.5 mm²)

for AWG cables solid2x (20 ... 14)

for AWG cables stranded2x (20 ... 14)

Safety related data

proportion of dangerous failures with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 31920100 000

Accessories 8

Genuine accessories that can be used with the Siemens 3SE7140-1BD00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SE7921-1AA	Aksesuar · Miscellaneous accessories · fixing elements
3SE7921-1AC	Aksesuar · Miscellaneous accessories · rollers
3SE7950-1AB	Aksesuar · Miscellaneous accessories · turnbuckles
3SX3235	Aksesuar · Miscellaneous accessories · LEDs
3SE7910-3AA	Seçmeli zorunlu ürün · Miscellaneous accessories · steel cables
3SE7920-1AB	Seçmeli zorunlu ürün · Miscellaneous accessories · bolts
3SE7930-1AD	Seçmeli zorunlu ürün · Miscellaneous accessories · cable eyes
3SE7941-1AC	Seçmeli zorunlu ürün · Miscellaneous accessories · cable clamps
