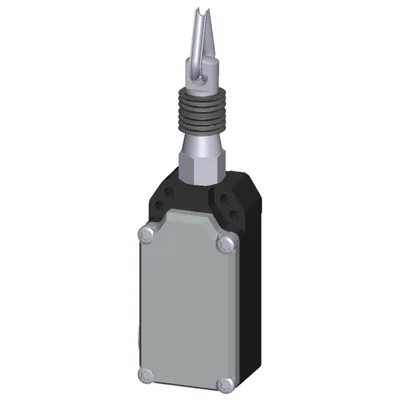

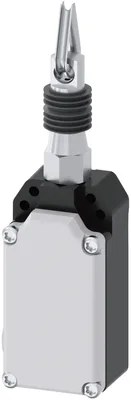

Siemens 3SE7120-2DD01-1AS7

cable-operated switch for 5 m cable length, spring 100 N, metal enclosure, 2x M20 x1.5; 1 NO+1 NC, without latching, only Bowden cable function, maximum actuating force 160 N

SiemensMFR # 3SE7120-2DD01-1AS7SKU # YLSNUCIXQ6AT

product brand nameSIRIUS

product designationcable-operated switch

product type designation3SE7

product function EMERGENCY STOP functionNo

product component light sourceNo

insulation voltage rated value400 V

Have questions?Chat on WhatsApp

About This Product

cable-operated switch for 5 m cable length, spring 100 N, metal enclosure, 2x M20 x1.5; 1 NO+1 NC, without latching, only Bowden cable function, maximum actuating force 160 N

Siemens 3SE7120-2DD01-1AS7

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationcable-operated switch

product type designation3SE7

General technical data

product function EMERGENCY STOP functionNo

product component light sourceNo

insulation voltage rated value400 V

degree of pollutionclass 3

surge voltage resistance rated value6 kV

protection class IPIP65

mechanical service life (operating cycles) typical1 000 000

thermal current6 A

reference code according to IEC 81346-2S

continuous current of the DIAZED fuse link gG6 A

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.433 kg

Ambient conditions

ambient temperature during operation-25 ... +70 °C

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

at 240 V rated value6 A

at 400 V rated value6 A

Enclosure

material of the enclosuremetal

material of the enclosure coverPlastic

product component EMERGENCY STOP deviceNo

of the enclosureblack

of the enclosure top partgrey

coating of the enclosurepainted

Display

product function status displayNo

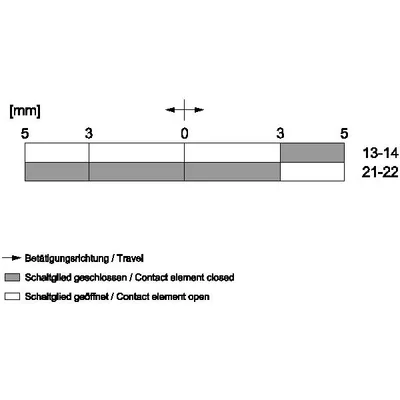

circuit principleJump function

material of the contactSilver

number of switching contacts safety-related1

cable entry type2x M20 x 1,5

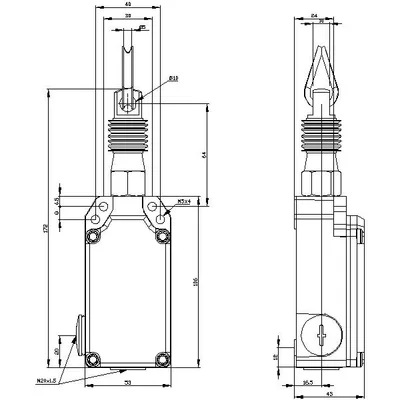

Installation/ mounting/ dimensions

fastening methodscrew fixing

height172 mm

width53 mm

depth43 mm

Connections/ Terminals

type of electrical connectionscrew terminal

solid2x (0.5 ... 2.5 mm²)

finely stranded with core end processing2x (0.5 ... 2.5 mm²)

for AWG cables solid2x (20 ... 14)

for AWG cables stranded2x (20 ... 14)

Product information

EAN4047621062440

Product familySIRIUS 3SE71 cable-operated switches

Life cycle statusActive

Commodity code85365080

Delivery and logistics

Country of originGermany

Standard delivery time10 Day/Days

ReturnableYes

Net weight0.433 Kg

Packaging dimensions (L x W x H)188 x 81 x 71 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-07-06

WEEE category5

REACH informationReach Information

Siemens catalog

Product group3750

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term

Accessories 8

Genuine accessories that can be used with the Siemens 3SE7120-2DD01-1AS7 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SE7921-1AA	Aksesuar · Miscellaneous accessories · fixing elements
3SE7921-1AC	Aksesuar · Miscellaneous accessories · rollers
3SE7950-1AB	Aksesuar · Miscellaneous accessories · turnbuckles
3SX3235	Aksesuar · Miscellaneous accessories · LEDs
3SE7910-3AA	Seçmeli zorunlu ürün · Miscellaneous accessories · steel cables
3SE7920-1AB	Seçmeli zorunlu ürün · Miscellaneous accessories · bolts
3SE7930-1AD	Seçmeli zorunlu ürün · Miscellaneous accessories · cable eyes
3SE7941-1AC	Seçmeli zorunlu ürün · Miscellaneous accessories · cable clamps
