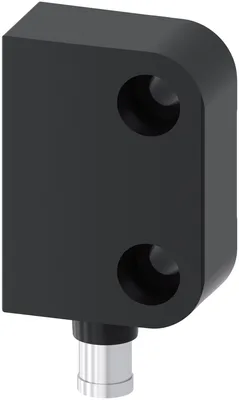

Siemens 3SE6617-3CA01

magnetically operated switch contact block rectangular small 26 x 36 mm, for left-hinged door, contacts: safety contacts 2 NC, signaling contact 1 NC (31-32), with 8 mm latching connection plug 6-pole, without LED, the matching solenoid 3SE6714-3CA or offset by 90° 3SE6724-3CA

SiemensMFR # 3SE6617-3CA01SKU # CEY-8EF3B0390E83

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productRectangular sensor unit

product type designation3SE66

positive openingNo

control function for downstream devicesNo

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE6617-3CA01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productRectangular sensor unit

product type designation3SE66

suitability for use safety-related circuitsYes

General technical data

positive openingNo

control function for downstream devicesNo

cross-circuit/short-circuit recognitionYes

type of voltage of the operating voltageDC

protection class IPIP67

shock resistance according to IEC 60068-2-27Sinusoidal half-wave 30 g / 11 ms

vibration resistance according to IEC 60068-2-610 ... 55 Hz: 1 mm

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight0.031 kg

height of the sensor36 mm

length of the sensor13 mm

width of the sensor26 mm

material of the active sensor areaPlastic, glass-fiber reinforced thermoplastic

Ambient conditions

ambient temperature during operation-25 ... +70 °C

Control circuit/ Control

type of voltageDC

operating voltage rated value30 V

operational current rated value400 mA

operating power rated value10 W

number of NC contacts for auxiliary contacts3

number of NC contacts safety-related2

number of NO contacts for auxiliary contacts0

number of NO contacts safety-related0

Enclosure

material of the enclosurePlastic, glass-fiber reinforced thermoplastic

opening direction of the doorleft

Actuator

design of the actuating elementmagnet

Display

evaluation unit requiredyes

Contact

switching frequency5 Hz

assured operating distance OFF15 mm

assured operating distance ON5 mm

design of the switching functionNC contact

number of switching contacts for signaling function1

safety-related0

Installation/ mounting/ dimensions

fastening methodscrew fixing

Connections/ Terminals

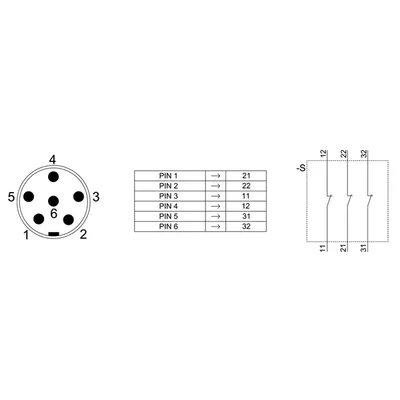

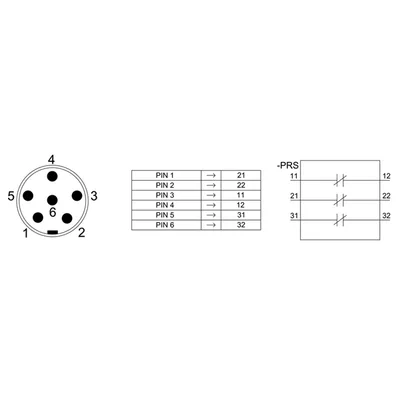

type of electrical connectionLatching connection 8 mm, 6-pole

Inputs/ Outputs

for signaling function0

safety-related0

— for signaling function instantaneous contact1

— safety-related instantaneous contact2

as NO contact safety-related instantaneous contact0

Safety related data

with low demand rate according to SN 3192050 %

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 3192012 500 000

ISO 13849

performance level (PL) according to EN ISO 13849-1e

IEC 61508

Safety Integrity Level (SIL) according to IEC 615083

T1 value for proof test interval or service life according to IEC 6150820 a

Accessories 6

Genuine accessories that can be used with the Siemens 3SE6617-3CA01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SX5600-2GA01	Aksesuar
3SX5601-4GA05	Aksesuar
3RK1902-4BA00-5AA0	Aksesuar
3RK1902-4DA00-5AA0	Aksesuar
3SE6714-3CA	Seçmeli zorunlu ürün · Non-contact safety switch
3SE6724-3CA	Seçmeli zorunlu ürün · Non-contact safety switch
