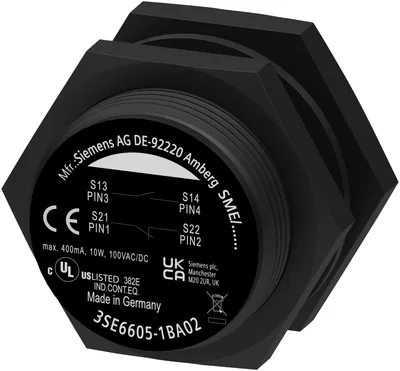

Siemens 3SE6605-1BA02

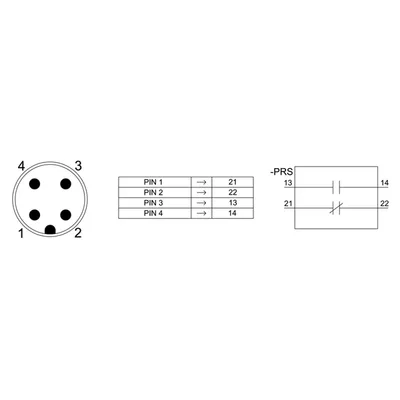

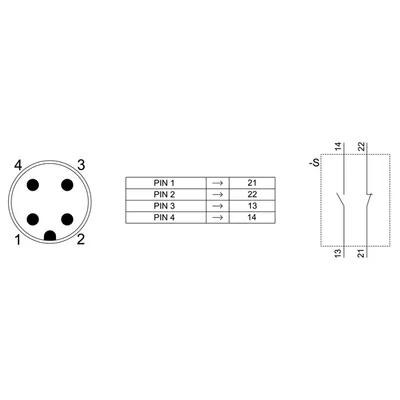

magnetically operated switch contact block round M30 contact elements 1 NO+1 NC with M12 plug 4-pole Pin1=21, Pin2=22 Pin3=13, Pin4=14, required solenoid 3SE6704-1BA coupling with connection cable 5 m 3SX5601-3SB54

SiemensMFR # 3SE6605-1BA02SKU # CEY-8EF3B0390E90

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productRound sensor unit

product type designation3SE66

positive openingNo

cross-circuit/short-circuit recognitionYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE6605-1BA02

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productRound sensor unit

product type designation3SE66

suitability for use safety-related circuitsYes

General technical data

positive openingNo

cross-circuit/short-circuit recognitionYes

product featureM30

type of voltage of the operating voltageAC/DC

protection class IPIP67

shock resistance according to IEC 60068-2-27Sinusoidal half-wave 30 g / 11 ms

vibration resistance according to IEC 60068-2-610 ... 55 Hz: 1 mm

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight0.029 kg

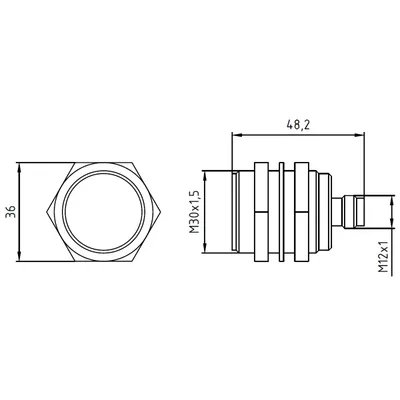

length of the sensor48 mm

diameter of the sensor30 mm

material of the active sensor areaplastic

Ambient conditions

ambient temperature during operation-25 ... +70 °C

Control circuit/ Control

type of voltageAC/DC

operating voltage rated value100 V

operational current rated value400 mA

operating power rated value10 W

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

Enclosure

design of the housingcylinder, thread

material of the enclosureplastic

Actuator

design of the actuating elementmagnet

Display

evaluation unit requiredyes

Contact

circuit principlereed switches

switching frequency5 Hz

assured operating distance OFF15 mm

assured operating distance ON5 mm

design of the switching functionNC contact and NO contact

Installation/ mounting/ dimensions

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionM8 connector, 4-pole

Safety related data

category according to EN 954-14

ISO 13849

performance level (PL) according to EN ISO 13849-1e

IEC 61508

Safety Integrity Level (SIL) according to IEC 615083
