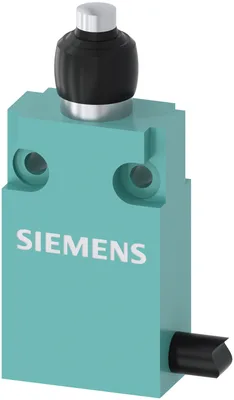

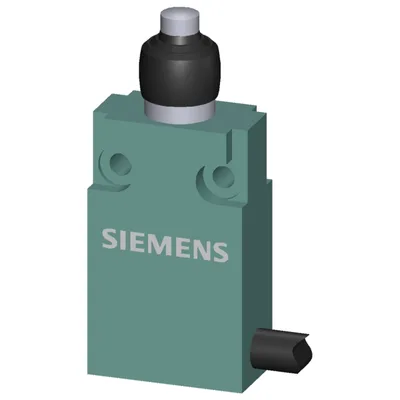

Siemens 3SE5413-0CC22-1EA2

Position switch in compact design 30 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC with rounded plunger with exterior seal

SiemensMFR # 3SE5413-0CC22-1EA2SKU # CEY-8EF3B0390EAF

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

product function positive openingYes

insulation voltage rated value400 V

degree of pollution3

Have questions?Chat on WhatsApp

About This Product

Position switch in compact design 30 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC with rounded plunger with exterior seal

Siemens 3SE5413-0CC22-1EA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

General technical data

product function positive openingYes

insulation voltage rated value400 V

degree of pollution3

surge voltage resistance rated value4 kV

protection class IPIP67

according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current10 A

material of the enclosure of the switch headmetal

reference code according to IEC 81346-2B

active principlemechanical

repeat accuracy0.05 mm

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.288 kg

minimum actuating force in directions of actuation20 N

length of the sensor60 mm

width of the sensor30 mm

Ambient conditions

during operation-25 ... +85 °C

during storage-25 ... +85 °C

explosion protection category for dustnone

design of the switching contactmechanical

operating frequency rated value50 ... 60 Hz

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

at 125 V rated value6 A

at 230 V rated value3 A

at 125 V rated value0.55 A

at 230 V rated value0.27 A

Enclosure

design of the housingblock

material of the enclosuremetal

coating of the enclosurepainted

design of the housing according to standardNo

material of cable sheathPVC

Drive Head

design of the actuating elementrounded plunger

shape of the switch headrounded

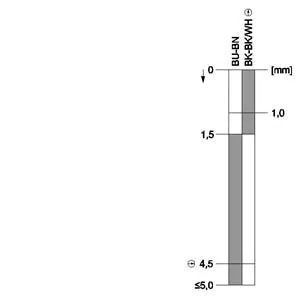

design of the switching functionpositive opening

circuit principlesnap-action contacts

number of switching contacts safety-related1

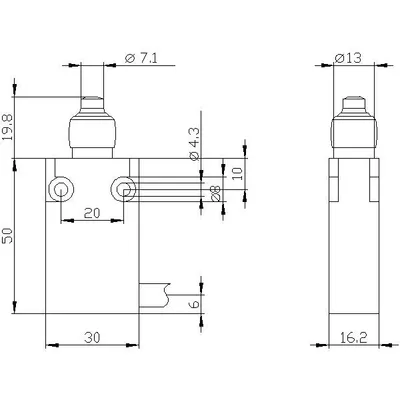

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectioncable, 5 x 0.75mm²

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout
