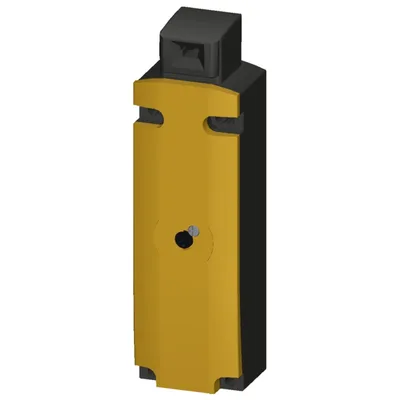

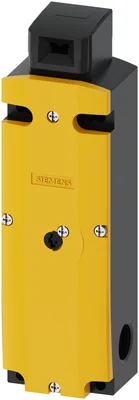

Siemens 3SE5322-0SD21

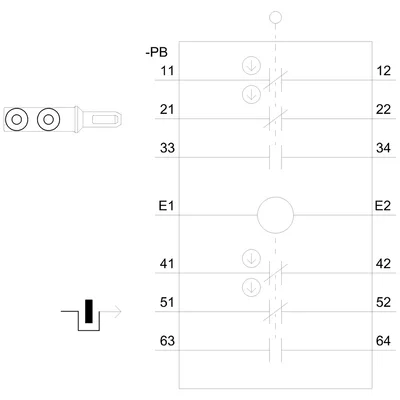

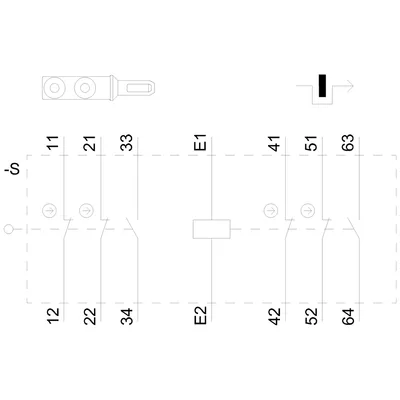

Note: Delivery without actuator. Please order separately. guard lock locking force 1300 N 5 approach directions spring-locked auxiliary release on the front magnet voltage 24 V DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO supplied without actuator, to be ordered separately.

SiemensMFR # 3SE5322-0SD21SKU # CEY-8EF3B030C22A

product brand nameSIRIUS

product designationMechanical safety switches

design of the productwith separate actuator and with tumbler

product type designation3SE5

product function positive openingYes

locking force1 300 N

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5322-0SD21

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical safety switches

design of the productwith separate actuator and with tumbler

product type designation3SE5

manufacturer's article number of the optional actuators3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with vertical fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with vertical fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing

General technical data

product function positive openingYes

locking force1 300 N

according to EN ISO 141191 000 N

insulation voltage rated value250 V

degree of pollutionclass 3

surge voltage resistance rated value4 kV

protection class IPIP66/IP67

shock resistance30g / 11 ms

according to IEC 60068-2-2730 g / 11 ms

vibration resistance0.35 mm / 5 g

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical1 000 000

thermal current10 A

material of the enclosure of the switch headplastic

reference code according to IEC 81346-2B

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG6 A; for a short-circuit current smaller than 400 A

repeat accuracy0.05 mm

Substance Prohibitance (day/month/year)10/01/2011

SVHC substance nameLead CAS-No. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight500.21 g

minimum actuating force in directions of actuation30 N

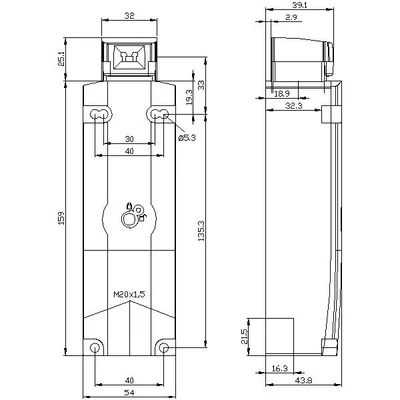

length of the sensor185 mm

width of the sensor54 mm

Ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +80 °C

explosion protection category for dustnone

consumed active power of magnet coil3.5 W

at 24 V rated value6 A

at 120 V rated value6 A

at 240 V rated value3 A

at 24 V rated value3 A

at 125 V rated value0.55 A

at 250 V rated value0.27 A

Enclosure

design of the housingspecial design

material of the enclosureplastic

design of the housing according to standardNo

locking mechanism designspring-actuated lock (closed-circuit principle) with auxiliary release

Drive Head

design of the actuating element5 directions of approach

design of the switching functionpositive opening

number of directions of actuation5

circuit principleslow-action contacts

number of switching contacts safety-related4

cable entry type3x (M20 x 1.5)

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionscrew terminal

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 18)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 18)

Supply voltage

supply voltage of magnet coil24 V

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Safety related data

product function suitable for safety functionYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate according to SN 3192020 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2A
