How can I get a price quote for Siemens 3SE5322-0SB21?

You can request a fast quote for Siemens 3SE5322-0SB21 from Yılsa Engineering. Reference part number CEY-8EF3B03084C3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5322-0SB21 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5322-0SB21 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5322-0SB21?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

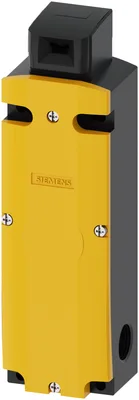

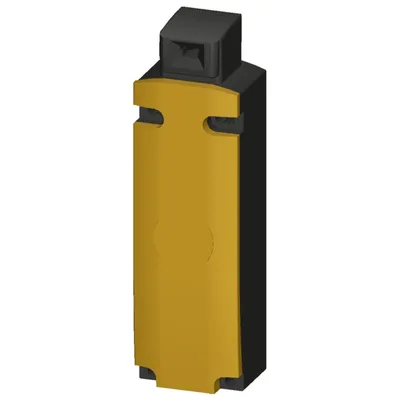

Siemens 3SE5322-0SB21

safety position switch with guard lock locking force 1300 N 5 approach directions solenoid-locked magnet voltage 24 V DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO matching actuator 3SE5000-0AV0. to be ordered separately

SiemensMFR # 3SE5322-0SB21SKU # CEY-8EF3B03084C3

product brand nameSIRIUS

product designationMechanical safety switches

design of the productwith separate actuator and with tumbler

product type designation3SE5

product function positive openingYes

locking force1 300 N

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5322-0SB21

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical safety switches

design of the productwith separate actuator and with tumbler

product type designation3SE5

manufacturer's article number of the optional actuators3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with vertical fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with vertical fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing

General technical data

product function positive openingYes

locking force1 300 N

according to EN ISO 141191 000 N

insulation voltage rated value250 V

degree of pollutionclass 3

surge voltage resistance rated value4 kV

protection class IPIP66/IP67

shock resistance30g / 11 ms

according to IEC 60068-2-2730 g / 11 ms

vibration resistance0.35 mm / 5 g

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical1 000 000

thermal current10 A

material of the enclosure of the switch headplastic

reference code according to IEC 81346-2B

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG6 A; for a short-circuit current smaller than 400 A

repeat accuracy0.05 mm

Substance Prohibitance (day/month/year)10/01/2011

SVHC substance nameLead CAS-No. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight0.495 kg

minimum actuating force in directions of actuation30 N

length of the sensor185 mm

width of the sensor54 mm

Ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +80 °C

explosion protection category for dustnone

consumed active power of magnet coil3.5 W

at 24 V rated value6 A

at 120 V rated value6 A

at 240 V rated value3 A

at 24 V rated value3 A

at 125 V rated value0.55 A

at 250 V rated value0.27 A

Enclosure

design of the housingspecial design

material of the enclosureplastic

design of the housing according to standardNo

locking mechanism designmagnetic field lock (open-circuit principle)

Drive Head

design of the actuating element5 directions of approach

design of the switching functionpositive opening

number of directions of actuation5

circuit principleslow-action contacts

number of switching contacts safety-related4

cable entry type3x (M20 x 1.5)

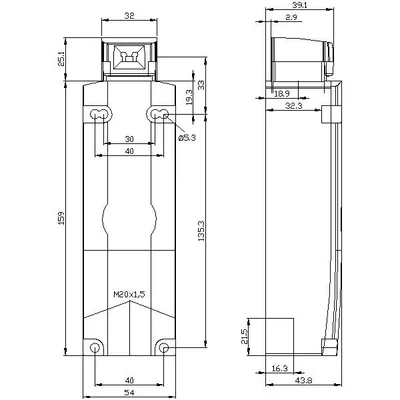

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionscrew terminal

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 18)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 18)

Supply voltage

supply voltage of magnet coil24 V

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Safety related data

product function suitable for safety functionYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2A

Accessories 23

Genuine accessories that can be used with the Siemens 3SE5322-0SB21 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SX9926	Aksesuar · Miscellaneous accessories · cable glands
3SX5100-1SS51	Aksesuar
3SY3128	Aksesuar · Miscellaneous accessories · plugs
3SX5100-1SS08	Aksesuar
3SE5000-0AV08-1AA3	Aksesuar
3SE5000-0AV08-1AA2	Aksesuar
3SX5601-2GA10	Aksesuar
3SY3127	Aksesuar · Miscellaneous accessories · plugs
3SE5000-0AW21	Seçmeli zorunlu ürün
3SE5000-0AV07-1AK2	Seçmeli zorunlu ürün
3SE5000-0AV05-1AA6	Seçmeli zorunlu ürün
3SE5000-0AV07	Seçmeli zorunlu ürün
3SE5000-0AV06	Seçmeli zorunlu ürün
3SE5000-0AV04	Seçmeli zorunlu ürün
3SE5000-0AW53	Seçmeli zorunlu ürün
3SE5000-0AW52	Seçmeli zorunlu ürün
3SE5000-0AV01-1AL7	Seçmeli zorunlu ürün
3SE5000-0AW51	Seçmeli zorunlu ürün
3SE5000-0AV03	Seçmeli zorunlu ürün
3SE5000-0AV02	Seçmeli zorunlu ürün
3SE5000-0AV01	Seçmeli zorunlu ürün
3SE5000-0AV05	Seçmeli zorunlu ürün
3SE5000-0AV05-1AN3	Seçmeli zorunlu ürün
