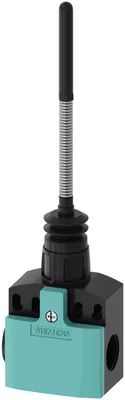

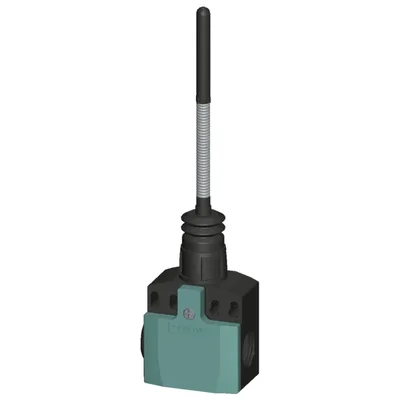

Siemens 3SE5242-0HR01-1AK4

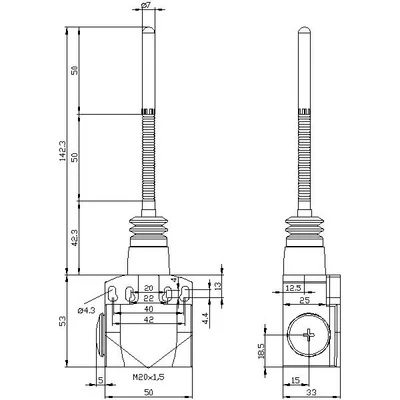

Customer-specific product; Limited sales only! enclosure 50 mm, device connection 2x (M20 x 1.5) 1 NO/1 NC quick-action contacts with spring rod 142.5 mm long red LED, 24 V, visible all-round M12 plug 4-pole with two pipe clamps 25-28 mm as clamp fastening customer-specific

SiemensMFR # 3SE5242-0HR01-1AK4SKU # YLSANHZHPNUL5PZ

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

accessories included2 pipe clips

product function positive openingNo

insulation voltage rated value250 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5242-0HR01-1AK4

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied actuator head for position switches3SE5000-0AR01

accessories included2 pipe clips

General technical data

product function positive openingNo

insulation voltage rated value250 V

degree of pollutionclass 3

surge voltage resistance rated value1 kV

protection class IPIP65, IP67

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical10 000 000

thermal current4 A

material of the enclosure of the switch headplastic

reference code according to IEC 81346-2B

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link4 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG4 A

active principlemechanical

repeat accuracy0.05 mm

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.318 kg

minimum actuating torque in directions of actuation0.25 N·m

length of the sensor195.5 mm

width of the sensor50 mm

Ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Main circuit

design of the switching contactmechanical

operating frequency rated value50 ... 60 Hz

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

at 24 V rated value3 A

Enclosure

design of the housingblock, wide

material of the enclosureplastic

coating of the enclosureOther types

design of the housing according to standardNo

material of cable sheathPVC

Drive Head

design of the actuating elementSpring rod, compl. Length = 142.5 mm (spring 50 mm + plastic plunger 50 mm)

standard-compliant actuator headEN 50047

outer diameter of the switch head7 mm

circuit principlesnap-action contacts

number of switching contacts safety-related0

cable entry typecable with M12 connector

design of plug-in connectioncable with M12 connector, 4-pole: pin 1= terminal 21, pin 2= LED/+ , pin 3= LED/- , pin 4= 22

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionscrew terminal

Supply voltage

type of voltage of the supply voltage of the optional LED displayDC

24 V

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Product information

EAN4011209830073

Life cycle statusDiscontinued, spare parts available

Commodity code85365019

Delivery and logistics

Country of originGermany

Standard delivery timeOn request

ReturnableYes

Net weight0.318 Kg

Packaging dimensions (L x W x H)230 x 150 x 105 MM

Standard package quantity1 Piece

Minimum order quantity50

Dangerous goodsNo

Export control regulationsECCN : N / AL : N

Environment and compliance

RoHS conformitySince: 01-07-06

WEEE category5

REACH informationImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7 > 0,1 % (w / w)

Siemens catalog

Product group5317

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term
