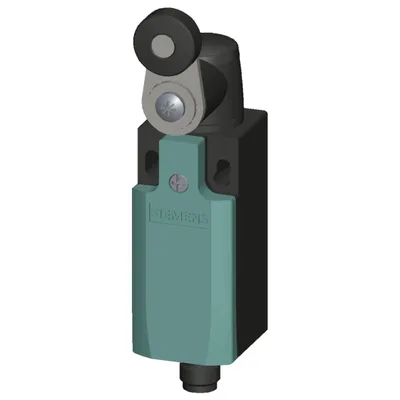

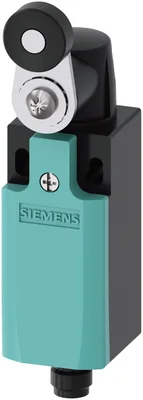

Siemens 3SE5234-0HK21-1AC4

position switch plastic enclosure according to DIN EN 50047, 31 mm 1 NO/1 NC quick action contacts integrated (not replaceable) with M12 plug, 4-pole pin assignment: pin 1 = 21, pin 2 = 22 pin 3 = 13, pin 4 = 14 for max. 250 V and 4 A twist lever, right and/or left switching can be set with plastic roller 19 mm

SiemensMFR # 3SE5234-0HK21-1AC4SKU # CEY-8EF3B0328B4E

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied operating lever3SE5000-0AA21

product function positive openingYes

insulation voltage rated value250 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5234-0HK21-1AC4

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied actuator head for position switches3SE5000-0AK00

of the supplied operating lever3SE5000-0AA21

General technical data

product function positive openingYes

insulation voltage rated value250 V

degree of pollutionclass 3

surge voltage resistance rated value3 kV

protection class IPIP65

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current4 A

material of the enclosure of the switch headplastic

reference code according to IEC 81346-2B

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link4 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG4 A

active principlemechanical

repeat accuracy0.05 mm

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.092 kg

minimum actuating torque in directions of actuation0.25 N·m

length of the sensor125.3 mm

width of the sensor31 mm

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Main circuit

design of the switching contactmechanical

operating frequency rated value50 ... 60 Hz

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

at 24 V rated value4 A

at 125 V rated value4 A

at 240 V rated value4 A

at 24 V rated value3 A

at 125 V rated value0.55 A

at 250 V rated value0.27 A

Enclosure

design of the housingblock, narrow

material of the enclosureplastic

coating of the enclosureOther types

design of the housing according to standardYes

Drive Head

design of the actuating elementTwist lever, metal lever, 21 mm long, straight, plastic roller 19 mm

standard-compliant actuator headEN 50047, design A

shape of the switch headroller

design of the switching functionpositive opening, integrated

circuit principlesnap-action contacts

number of switching contacts safety-related1

cable entry typeM12 plug

design of plug-in connectionM12 plug, 4-pole: Pin 1 = terminal 21, Pin 2 = 22, Pin 3 = 13, Pin 4 = 14

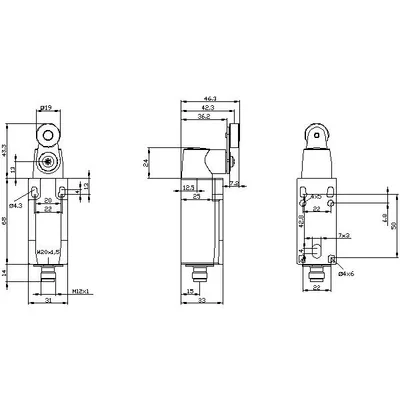

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionM12 plug, fixed

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Safety related data

product function suitable for safety functionYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate according to SN 3192020 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2A
