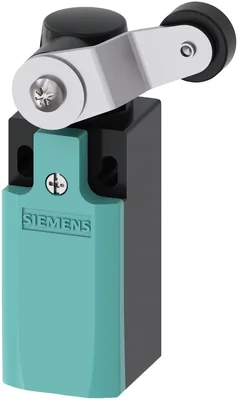

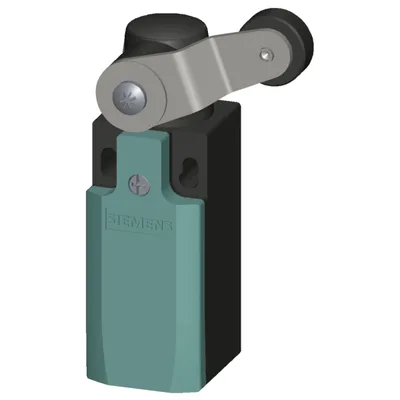

Siemens 3SE5232-0LK15-1AN7

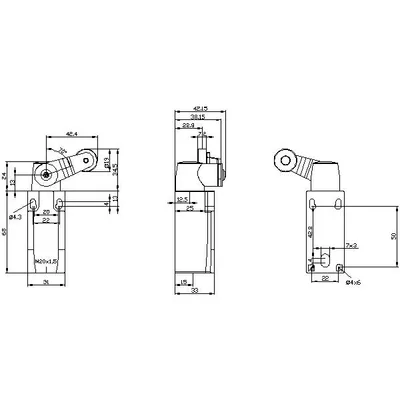

Position switch Plastic enclosure according to EN 50047, 31 mm, Device connection 1 x (M20 x 1.5) 1 NO/2 NC quick action contacts, Twist lever, 35 mm long right/left adjustable, with plastic roller 19 mm, customized: Twist lever on Cover (turned by 180°) assembled and in clockwise at an angle: 70°

SiemensMFR # 3SE5232-0LK15-1AN7SKU # YLS5KIYF3MXAL

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied operating lever3SE5000-0AA15

of the supplied switching contacts3SE5000-0LA00

product function positive openingYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5232-0LK15-1AN7

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied actuator head for position switches3SE5000-0AK00

of the supplied operating lever3SE5000-0AA15

of the supplied switching contacts3SE5000-0LA00

of the supplied empty enclosure with cover3SE5232-0AC05

General technical data

product function positive openingYes

insulation voltage rated value400 V

degree of pollutionclass 3

surge voltage resistance rated value6 kV

protection class IPIP65

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current10 A

material of the enclosure of the switch headplastic

reference code according to IEC 81346-2B

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG6 A

active principlemechanical

repeat accuracy0.05 mm

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.095 kg

minimum actuating torque in directions of actuation0.25 N·m

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Main circuit

design of the switching contactmechanical

operating frequency rated value50 ... 60 Hz

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts1

at 24 V rated value6 A

at 120 V rated value6 A

at 240 V rated value6 A

at 400 V rated value4 A

at 24 V rated value3 A

at 125 V rated value0.55 A

at 250 V rated value0.27 A

at 400 V rated value0.12 A

Enclosure

design of the housingblock, narrow

material of the enclosureplastic

coating of the enclosureOther types

design of the housing according to standardYes

Drive Head

design of the actuating elementTwist lever, metal lever, 35 mm long, step 9 mm, EN50041, plastic roller 19 mm

standard-compliant actuator headEN 50047, design A

shape of the switch headroller

design of the switching functionpositive opening

circuit principlesnap-action contacts

number of switching contacts safety-related2

cable entry type1x (M20 x 1.5)

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionscrew terminal

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 18)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 18)

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Safety related data

product function suitable for safety functionYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate according to SN 3192020 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2A

Product information

EAN4047621050195

Product familyOrdering Data Overview

Life cycle statusActive

Commodity code85365080

Delivery and logistics

Country of originGermany

Standard delivery time5 Day/Days

ReturnableYes

Net weight0.095 Kg

Packaging dimensions (L x W x H)152 x 66 x 45 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-07-06

WEEE category5

REACH informationImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7 > 0,1 % (w / w)

SCIP number0993869e-437b-4e9a-ab3c-7e2a135422b7

Siemens catalog

Product group5317

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term
