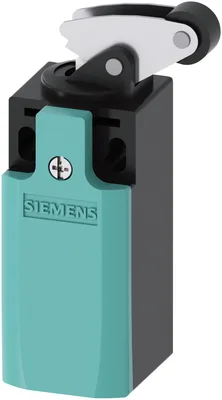

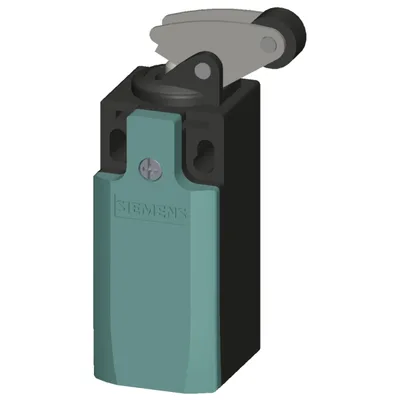

Siemens 3SE5212-0LF10

Position switch Metal enclosure according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 NO/2 NC quick action contacts Angular roller lever with plastic roller 13 mm

SiemensMFR # 3SE5212-0LF10SKU # CEY-8EF3B03915B2

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied switching contacts3SE5000-0LA00

product function positive openingYes

insulation voltage rated value400 V

Have questions?Chat on WhatsApp

About This Product

Position switch Metal enclosure according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 NO/2 NC quick action contacts Angular roller lever with plastic roller 13 mm

Siemens 3SE5212-0LF10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied actuator head for position switches3SE5000-0AF10

of the supplied switching contacts3SE5000-0LA00

of the supplied empty enclosure with cover3SE5212-0AC05

General technical data

product function positive openingYes

insulation voltage rated value400 V

degree of pollutionclass 3

surge voltage resistance rated value6 kV

protection class IPIP66/IP67

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current10 A

material of the enclosure of the switch headmetal

reference code according to IEC 81346-2B

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG6 A

active principlemechanical

repeat accuracy0.05 mm

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.196 kg

minimum actuating force in directions of actuation10 N

length of the sensor90.5 mm

width of the sensor31 mm

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Main circuit

design of the switching contactmechanical

operating frequency rated value50 ... 60 Hz

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts1

at 24 V rated value6 A

at 120 V rated value6 A

at 240 V rated value6 A

at 400 V rated value4 A

at 24 V rated value3 A

at 125 V rated value0.55 A

at 250 V rated value0.27 A

at 400 V rated value0.12 A

Enclosure

design of the housingblock, narrow

material of the enclosuremetal

coating of the enclosurecathodic dip coating

design of the housing according to standardYes

Drive Head

design of the actuating elementRoller lever, metal lever, plastic roller

standard-compliant actuator headEN 50047

shape of the switch headroller

design of the switching functionpositive opening

circuit principlesnap-action contacts

number of switching contacts safety-related2

cable entry type1x (M20 x 1.5)

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionscrew terminal

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 18)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 18)

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Safety related data

product function suitable for safety functionYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate according to SN 3192020 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2A

Accessories 5

Genuine accessories that can be used with the Siemens 3SE5212-0LF10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SY3128	Aksesuar · Miscellaneous accessories · plugs
3SX9926	Aksesuar · Miscellaneous accessories · cable glands
3SE5000-0AF10	Bileşen
3SE5000-0LA00	Bileşen
3SE5212-0AC05	Bileşen
