How can I get a price quote for Siemens 3SE5160-0AA00-1AG0?

You can request a fast quote for Siemens 3SE5160-0AA00-1AG0 from Yılsa Engineering. Reference part number CEY-8EF3B03915F4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5160-0AA00-1AG0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5160-0AA00-1AG0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5160-0AA00-1AG0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

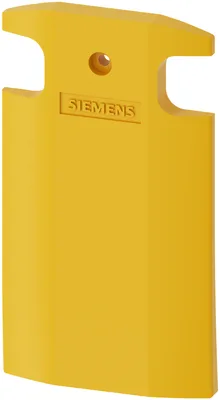

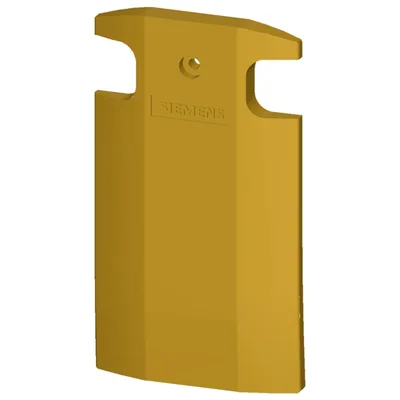

Siemens 3SE5160-0AA00-1AG0

Cover yellow for position switch metal XL, 56 mm wide

SiemensMFR # 3SE5160-0AA00-1AG0SKU # CEY-8EF3B03915F4

product brand nameSIRIUS

product type designation3SE5

insulation voltage rated value400 V

degree of pollutionclass 3

protection class IPIP66/IP67

according to IEC 60068-2-2730 g / 11 ms

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5160-0AA00-1AG0 (Cover yellow for position switch metal XL, 56 mm wide) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3SE5160-0AA00-1AG0 — price, stock availability and technical specifications.

Siemens 3SE5160-0AA00-1AG0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationcover, metal for enclosure EN50041 long, yellow

product type designation3SE5

General technical data

insulation voltage rated value400 V

degree of pollutionclass 3

protection class IPIP66/IP67

according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-60.35 mm/5 g

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.097 kg

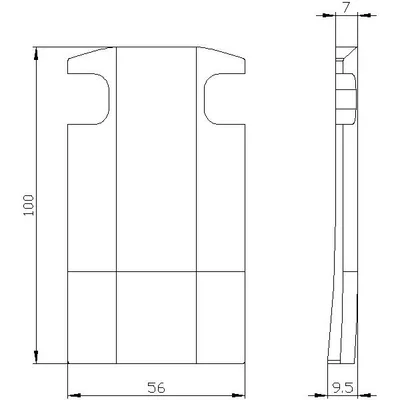

length of the sensor100 mm

width of the sensor56 mm

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Enclosure

design of the housingblock, wide

coating of the enclosurecathodic dip coating

design of the housing according to standardNo

Drive Head

design of the actuating elementOther, without, empty enclosure

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout
