How can I get a price quote for Siemens 3SE5130-3AA00?

You can request a fast quote for Siemens 3SE5130-3AA00 from Yılsa Engineering. Reference part number CEY-8EF3B0391639. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5130-3AA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5130-3AA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5130-3AA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

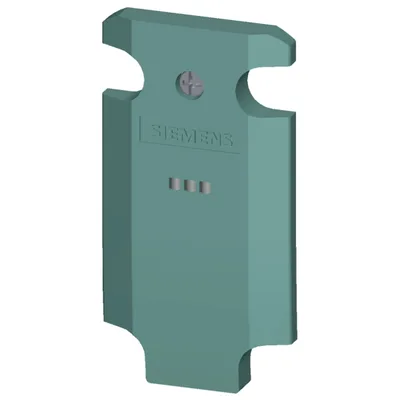

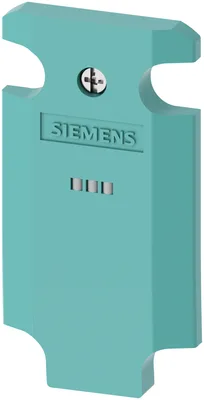

Siemens 3SE5130-3AA00

LED cover, Color turquoise for position switch Plastic 3SE5132, with 2 LEDs, yellow/green, 230 V AC

SiemensMFR # 3SE5130-3AA00SKU # CEY-8EF3B0391639

product brand nameSIRIUS

product type designation3SE5

degree of pollutionclass 3

protection class IPIP66/IP67

according to IEC 60068-2-2730 g / 11 ms

Substance Prohibitance (day/month/year)07/01/2006

Have questions?Chat on WhatsApp

About This Product

LED cover, Color turquoise for position switch Plastic 3SE5132, with 2 LEDs, yellow/green, 230 V AC

Siemens 3SE5130-3AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationCover(plastic) for housing EN50041+LED 230 V AC, turquoise

product type designation3SE5

General technical data

degree of pollutionclass 3

protection class IPIP66/IP67

according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-60.35 mm/5 g

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.02 kg

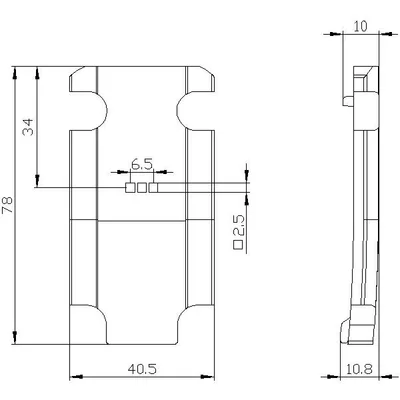

length of the sensor78 mm

width of the sensor40 mm

Ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Enclosure

design of the housingblock, narrow

coating of the enclosureOther types

Drive Head

design of the actuating elementOther, without, cover

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Supply voltage

type of voltage of the supply voltage of the optional LED displayAC

230 V

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Accessories 2

Genuine accessories that can be used with the Siemens 3SE5130-3AA00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
