How can I get a price quote for Siemens 3SE5122-0AA00?

You can request a fast quote for Siemens 3SE5122-0AA00 from Yılsa Engineering. Reference part number CEY-8EF3B0391C64. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5122-0AA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5122-0AA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5122-0AA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

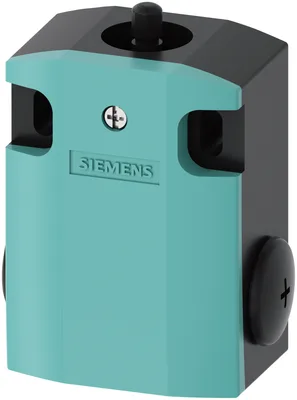

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3SE5122-0AA00

Enclosure for position switch 3SE51, 56 mm wide metal with cover, turquoise Device connection 3x (M20x 1.5)

SiemensMFR # 3SE5122-0AA00SKU # CEY-8EF3B0391C64

product brand nameSIRIUS

product type designation3SE5

insulation voltage rated value400 V

degree of pollutionclass 3

protection class IPIP66/IP67

according to IEC 60068-2-2730 g / 11 ms

Have questions?Chat on WhatsApp

About This Product

Enclosure for position switch 3SE51, 56 mm wide metal with cover, turquoise Device connection 3x (M20x 1.5)

Siemens 3SE5122-0AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationenclosure for standard position switch, metal, 54 mm wide, cover turquoise

product type designation3SE5

General technical data

insulation voltage rated value400 V

degree of pollutionclass 3

protection class IPIP66/IP67

according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-60.35 mm/5 g

reference code according to IEC 81346-2U

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.339 kg

length of the sensor85.7 mm

width of the sensor56 mm

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Enclosure

design of the housingblock, wide

material of the enclosuremetal

coating of the enclosurecathodic dip coating

design of the housing according to standardNo

Drive Head

design of the actuating elementOther, without, empty enclosure

cable entry type3x (M20 x 1.5)

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Accessories 1

Genuine accessories that can be used with the Siemens 3SE5122-0AA00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
