Siemens 3SE5114-0NH82-1AM2

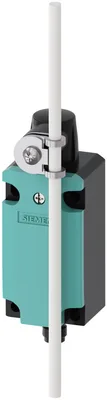

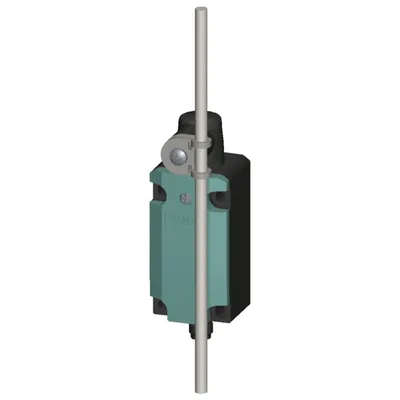

SIRIUS position switch Metal enclosure 40 mm according to EN 50041, rod lever, plastic rod 200 mm 1 NO/1 NC short stroke, M12 connector 5-pole, PIN1=13, PIN2= n/a, PIN3=n/a, PIN4=14, PIN5=PE Application Nagara switch Single-hand operation triggerable start switch (during operation)

SiemensMFR # 3SE5114-0NH82-1AM2SKU # YLSUVRHRCBHW0DS

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied switching contacts3SE5000-0CA00

product function positive openingNo

insulation voltage rated value125 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5114-0NH82-1AM2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied switching contacts3SE5000-0CA00

General technical data

product function positive openingNo

insulation voltage rated value125 V

degree of pollutionclass 3

surge voltage resistance rated value1.5 kV

protection class IPIP65/IP67

according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical10 000 000

thermal current4 A

material of the enclosure of the switch headplastic

reference code according to IEC 81346-2B

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link4 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG4 A

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.369 kg

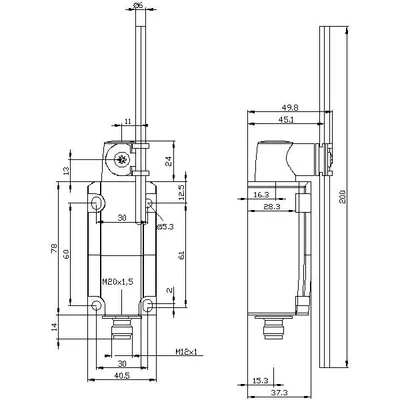

length of the sensor281 mm

width of the sensor40 mm

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Main circuit

design of the switching contactmechanical

operating frequency rated value50 ... 60 Hz

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

at 24 V rated value4 A

at 125 V rated value4 A

at 24 V rated value3 A

at 125 V rated value0.55 A

Enclosure

design of the housingblock, narrow

material of the enclosuremetal

coating of the enclosurecathodic dip coating

design of the housing according to standardYes

Drive Head

design of the actuating elementRod lever, plastic rod, length 200 mm

circuit principlesnap-action contacts

number of switching contacts safety-related0

cable entry typeM12 plug

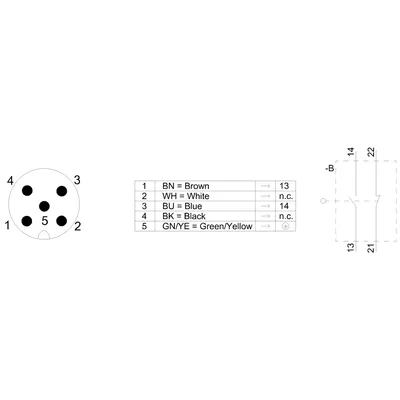

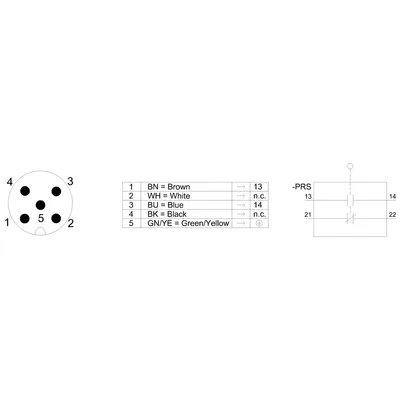

design of plug-in connectionM12 connector, 5-pole: Pin 1= Terminal13, Pin 4= 14, Pin 5= PE

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionM12 plug, fixed

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Product information

EAN4011209947108

Product familyEnclosure width 40 mm acc. to EN 50041

Life cycle statusActive

Commodity code85365080

Delivery and logistics

Country of originGermany

Standard delivery time5 Day/Days

ReturnableYes

Net weight0.369 Kg

Packaging dimensions (L x W x H)213 x 61.5 x 84 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-07-06

WEEE category5

REACH informationImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7 > 0,1 % (w / w)

SCIP number99eefcb3-6d43-4a4c-af9b-e0e1515b7b24

Siemens catalog

Product group5317

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term

Accessories 4

Genuine accessories that can be used with the Siemens 3SE5114-0NH82-1AM2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SY3027	Aksesuar · Miscellaneous accessories · base plates
3SY3110	Aksesuar · Miscellaneous accessories · laminations
3SE5000-0CA00	Bileşen
3SY3128	Bileşen · Miscellaneous accessories · plugs
