How can I get a price quote for Siemens 3SE5114-0CD02-1AL0?

You can request a fast quote for Siemens 3SE5114-0CD02-1AL0 from Yılsa Engineering. Reference part number CEY-8EF3B0391C82. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5114-0CD02-1AL0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5114-0CD02-1AL0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5114-0CD02-1AL0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3SE5114-0CD02-1AL0

position switch, 3SE51 metal enclosure 40 mm according to EN 50041 1 NO/1 NC quick action contacts with M12 plug, 5-pole, fixed pin assignment: Pin1=21, Pin2=22 Pin3=13, Pin4=14, Pin5=PE with roller plunger, 30 N actuating/restoring force only available as complete unit

SiemensMFR # 3SE5114-0CD02-1AL0SKU # CEY-8EF3B0391C82

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied basic switch3SE5114-0CA00-1AL0

of the supplied switching contacts3SE5000-0CA00

product function positive openingYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5114-0CD02-1AL0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied basic switch3SE5114-0CA00-1AL0

of the supplied actuator head for position switches3SE5000-0AD02

of the supplied switching contacts3SE5000-0CA00

General technical data

product function positive openingYes

insulation voltage rated value125 V

degree of pollutionclass 3

surge voltage resistance rated value1.5 kV

protection class IPIP66/IP67

according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical3 000 000

thermal current4 A

material of the enclosure of the switch headmetal

reference code according to IEC 81346-2B

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link4 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG4 A

active principlemechanical

repeat accuracy0.05 mm

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1 Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.347 kg

minimum actuating force in directions of actuation30 N

length of the sensor130.5 mm

width of the sensor40 mm

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Main circuit

design of the switching contactmechanical

operating frequency rated value50 ... 60 Hz

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

at 24 V rated value4 A

at 125 V rated value4 A

at 24 V rated value3 A

at 125 V rated value0.55 A

Enclosure

design of the housingblock, narrow

material of the enclosuremetal

coating of the enclosurecathodic dip coating

design of the housing according to standardYes

Drive Head

design of the actuating elementRoller plunger, high-grade steel roller

standard-compliant actuator headEN 50041, design C

shape of the switch headroller

design of the switching functionpositive opening

circuit principlesnap-action contacts

number of switching contacts safety-related1

cable entry typeM12 plug

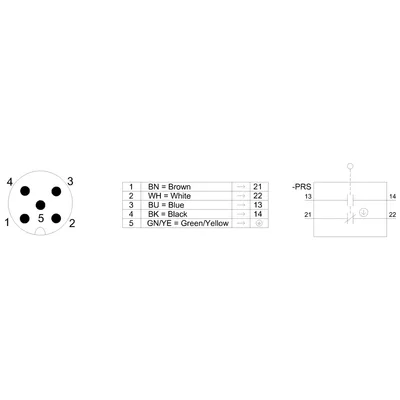

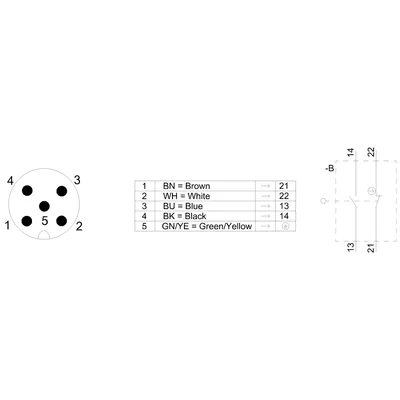

design of plug-in connectionM12 plug, 5-pole: Pin 1 = terminal 21, Pin 2 = 22, Pin 3 = 13, Pin 4 = 14, Pin 5 = PU

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionM12 plug, fixed

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Safety related data

product function suitable for safety functionYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate according to SN 3192020 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2A

Accessories 5

Genuine accessories that can be used with the Siemens 3SE5114-0CD02-1AL0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SY3027	Aksesuar · Miscellaneous accessories · base plates
3SY3110	Aksesuar · Miscellaneous accessories · laminations
3SE5000-0CA00	Bileşen
3SE5000-0AD02	Bileşen
3SY3128	Bileşen · Miscellaneous accessories · plugs
