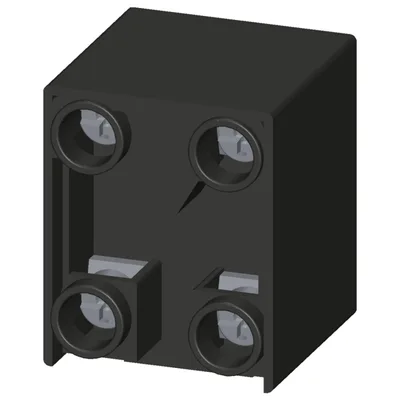

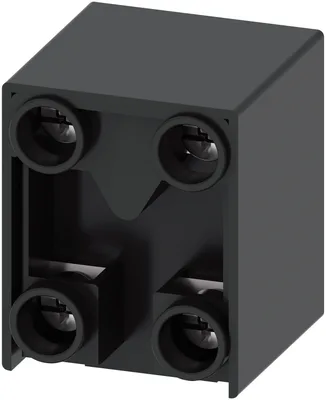

Siemens 3SE5050-0GA00

Contact block IP20 for position switch 3SE5250 open type design 1 NO/1 NC quick action contact 2 x 2 mm contact clearance

SiemensMFR # 3SE5050-0GA00SKU # CEY-8EF3B0391CDE

product brand nameSIRIUS

product designationcontact

product type designation3SE5

product function positive openingYes

insulation voltage rated value400 V

degree of pollutionclass 3

Have questions?Chat on WhatsApp

About This Product

Contact block IP20 for position switch 3SE5250 open type design 1 NO/1 NC quick action contact 2 x 2 mm contact clearance

Siemens 3SE5050-0GA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationcontact

product type designation3SE5

General technical data

product function positive openingYes

insulation voltage rated value400 V

degree of pollutionclass 3

surge voltage resistance rated value6 kV

protection class IPIP20, conductor connected and clamping screw screwed in

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current10 A

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG6 A

active principlemechanical

repeat accuracy0.1 mm

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.022 kg

width of the sensor25 mm

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Main circuit

operating frequency rated value50 ... 60 Hz

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

at 24 V rated value6 A

at 125 V rated value6 A

at 240 V rated value6 A

at 400 V rated value4 A

at 24 V rated value3 A

at 125 V rated value0.55 A

at 250 V rated value0.27 A

at 400 V rated value0.12 A

Enclosure

coating of the enclosureOther types

Drive Head

design of the switching functionpositive opening, 2x2 mm contact opening

circuit principlesnap-action contacts

number of switching contacts safety-related1

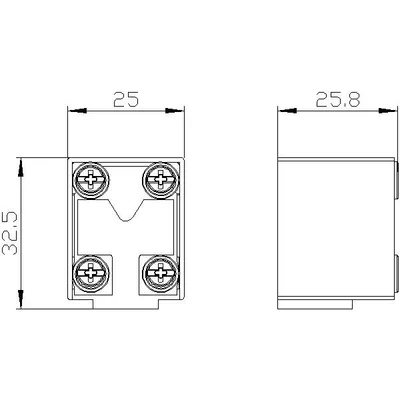

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

Connections/ Terminals

type of electrical connectionscrew terminal

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 18)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 18)

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout
