How can I get a price quote for Siemens 3SE5000-0PA00?

You can request a fast quote for Siemens 3SE5000-0PA00 from Yılsa Engineering. Reference part number CEY-8EF3B02F9BD4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5000-0PA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5000-0PA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5000-0PA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

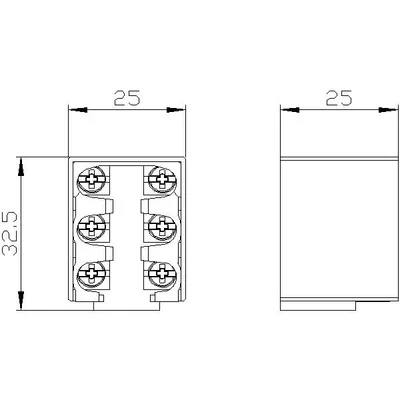

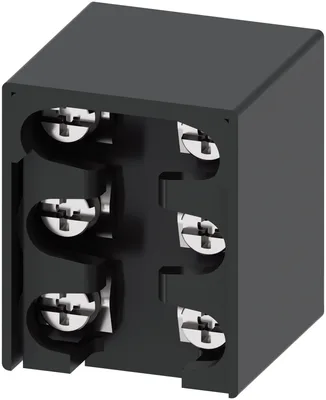

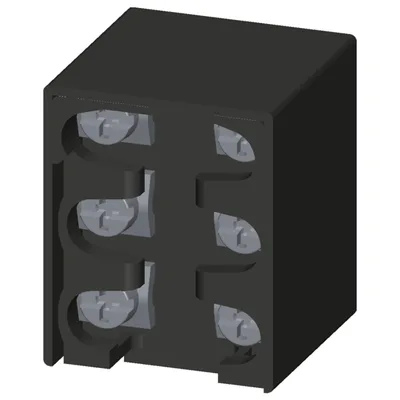

Siemens 3SE5000-0PA00

Contact block for position switch 3SE51/52 2 NO/1 NC slow-action contact

SiemensMFR # 3SE5000-0PA00SKU # CEY-8EF3B02F9BD4

product brand nameSIRIUS

product designationcontact

product type designation3SE5

product function positive openingYes

insulation voltage rated value250 V

degree of pollutionclass 3

Have questions?Chat on WhatsApp

About This Product

Contact block for position switch 3SE51/52 2 NO/1 NC slow-action contact

Siemens 3SE5000-0PA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationcontact

product type designation3SE5

General technical data

product function positive openingYes

insulation voltage rated value250 V

degree of pollutionclass 3

surge voltage resistance rated value4 kV

protection class IPIP00

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current10 A

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG6 A

active principlemechanical

repeat accuracy0.1 mm

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.024 kg

width of the sensor25 mm

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Main circuit

operating frequency rated value50 ... 60 Hz

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts2

at 24 V rated value6 A

at 125 V rated value6 A

at 240 V rated value6 A

at 400 V rated value4 A

at 24 V rated value3 A

at 125 V rated value0.55 A

at 250 V rated value0.27 A

at 400 V rated value0.12 A

Enclosure

coating of the enclosureOther types

Drive Head

design of the switching functionpositive opening

circuit principleslow-action contacts

number of switching contacts safety-related1

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

Connections/ Terminals

type of electrical connectionscrew terminal

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 18)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 18)

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout
