How can I get a price quote for Siemens 3SE5000-0AW57?

You can request a fast quote for Siemens 3SE5000-0AW57 from Yılsa Engineering. Reference part number YLSUXX9JMIQXBZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5000-0AW57 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5000-0AW57 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5000-0AW57?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

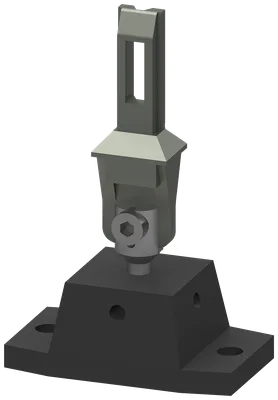

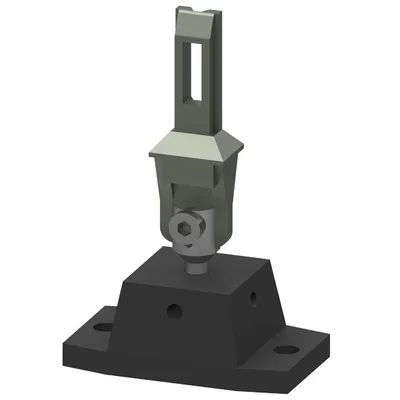

Siemens 3SE5000-0AW57

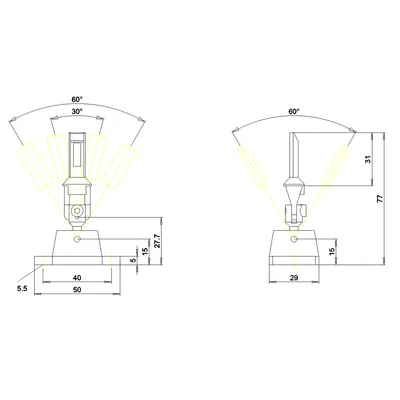

Possibly 3SE5000-0AV07, not made of stainless steel but zinc die-casting universal radius actuator 'heavy duty' version vertical and horizontal adjustable, length = 77 mm for position switch with tumbler 3SE5312/3SE5322 and ASi 3SF13 and position switch with separate actuator 3SE51/3SE52 and AS-i with separate actuator 3SF11/3SF12. suitable for extreme environmental conditions such as minus 40 degree with increased corrosion protection

SiemensMFR # 3SE5000-0AW57SKU # YLSUXX9JMIQXBZ

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

reference code according to IEC 81346-2T

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.125 kg

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5000-0AW57

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical1 000 000

reference code according to IEC 81346-2T

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.125 kg

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

Drive Head

design of the actuating elementuniversal actuator

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Product information

EAN4047621092201

Product familyAccessories and spare parts

Life cycle statusDiscontinued, spare parts available

Commodity code85389099

Delivery and logistics

Country of originGermany

Standard delivery time5 Day/Days

ReturnableNo

Net weight0.125 Kg

Packaging dimensions (L x W x H)75 x 50 x 30 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-07-06

WEEE categoryNo

REACH informationReach Information

Siemens catalog

Product group5318

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term
