How can I get a price quote for Siemens 3SE5000-0AA22?

You can request a fast quote for Siemens 3SE5000-0AA22 from Yılsa Engineering. Reference part number CEY-8EF3B02CE28B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5000-0AA22 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5000-0AA22 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5000-0AA22?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

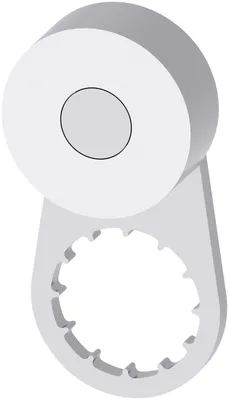

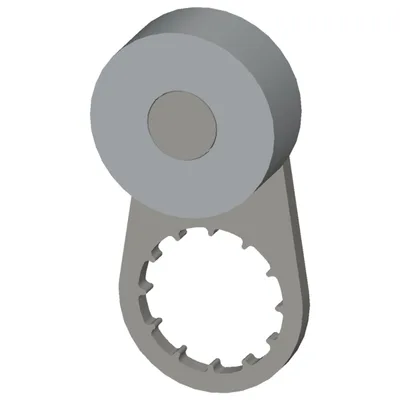

Siemens 3SE5000-0AA22

twist lever for position switch 3SE52 Metal lever, Form A 21 mm long Stainless steel roller 19 mm according to EN 50047

SiemensMFR # 3SE5000-0AA22SKU # CEY-8EF3B02CE28B

product brand nameSIRIUS

product designationactuator for part-turn actuator

product type designation3SE5

of the supplied operating lever3SE5000-0AA22

product function positive openingYes

according to IEC 60068-2-2730 g / 11 ms

Have questions?Chat on WhatsApp

About This Product

twist lever for position switch 3SE52 Metal lever, Form A 21 mm long Stainless steel roller 19 mm according to EN 50047

Siemens 3SE5000-0AA22

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationactuator for part-turn actuator

product type designation3SE5

of the supplied operating lever3SE5000-0AA22

General technical data

product function positive openingYes

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

reference code according to IEC 81346-2T

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.035 kg

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Enclosure

coating of the enclosureOther types

Drive Head

design of the actuating elementTwist lever, metal lever, 21 mm long, straight, high-grade steel roller 19 mm

standard-compliant actuator headEN 50047, design A

shape of the switch headroller

outer diameter of the switch head19 mm

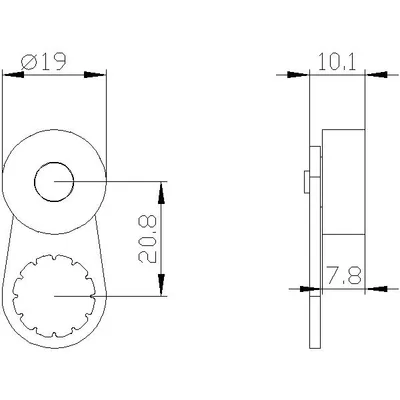

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Accessories 1

Genuine accessories that can be used with the Siemens 3SE5000-0AA22 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
