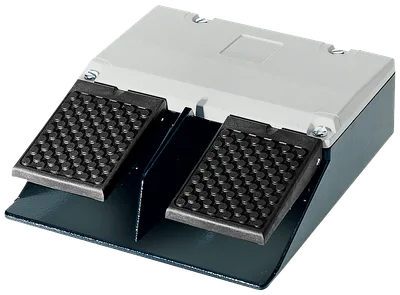

Siemens 3SE2932-1AB20

Old=3SE3932-1AB20 2-pedal without cover, without latching, metal enclosure IP65, cable entry M25 x 1.5 slow-action contacts 2 NO+2 NC per pedal

SiemensMFR # 3SE2932-1AB20SKU # CEY-8EF3B0391396

product brand nameSIRIUS

product designationmomentary-contact foot switch

product type designation3SE29

protection class IPIP65

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

Have questions?Chat on WhatsApp

About This Product

Old=3SE3932-1AB20 2-pedal without cover, without latching, metal enclosure IP65, cable entry M25 x 1.5 slow-action contacts 2 NO+2 NC per pedal

Siemens 3SE2932-1AB20

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationmomentary-contact foot switch

product type designation3SE29

General technical data

protection class IPIP65

mechanical service life (operating cycles) typical1 000 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight2.038 kg

number of switching steps1

number of the actuation pedals2

minimum actuating force in directions of actuation20 N

Ambient conditions

ambient temperature during operation-25 ... +80 °C

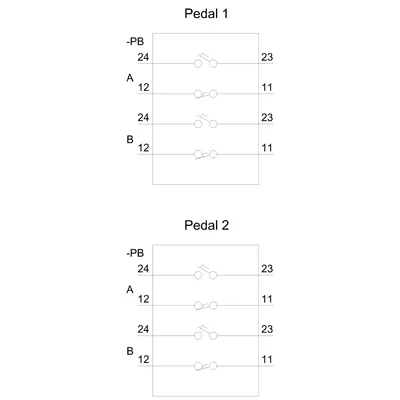

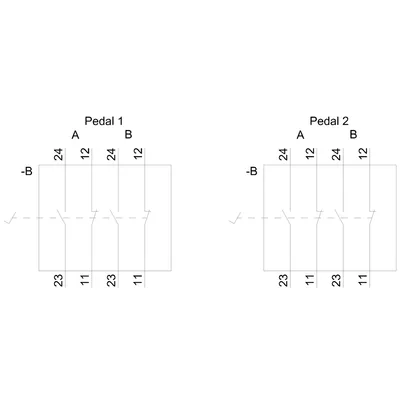

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts2

at 230 V rated value6 A

at 400 V rated value6 A

at 24 V rated value3 A

at 250 V rated value0.25 A

Enclosure

material of the enclosuremetal

of the enclosureblack

of the enclosure top partgrey

Actuator

interlockNo

latchingNo

cable entry typeM25 x 1.5

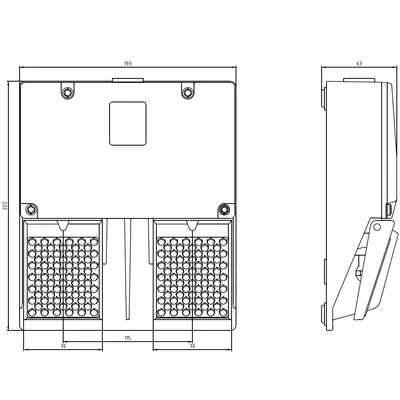

Installation/ mounting/ dimensions

height68 mm

width193 mm

depth221 mm

Safety related data

with low demand rate according to SN 3192050 %

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

IEC 61508

T1 value for proof test interval or service life according to IEC 6150820 a
