Siemens 3SE2283-6GA43

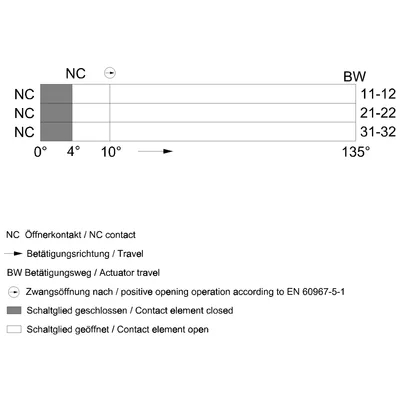

Hinge switch Molded-plastic enclosure with aluminum hinge 3xNC, Slow-action contacts for 40 mm profiles Supplied with additional hinge and fixing material Cable entry 2 x M20 x 1.5 Actuating angle 4°

SiemensMFR # 3SE2283-6GA43SKU # CEY-8EF3B03913A2

product brand nameSIRIUS

product designationSafety hinge switches

product type designation3SE228

product function positive openingYes

insulation voltage rated value250 V

surge voltage resistance rated value4 kV

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE2283-6GA43

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationSafety hinge switches

product type designation3SE228

General technical data

product function positive openingYes

insulation voltage rated value250 V

surge voltage resistance rated value4 kV

protection class IPIP65

shock resistance30g / 18 ms

vibration resistance10 ... 200 Hz: 20g

mechanical service life (operating cycles) typical1 000 000

thermal current2.5 A

reference code according to IEC 81346-2B

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight0.434 kg

length of the sensor92 mm

width of the sensor111.5 mm

Ambient conditions

during operation-25 ... +65 °C

explosion protection category for dustnone

design of the switching contactmechanical

number of NC contacts for auxiliary contacts3

number of NO contacts for auxiliary contacts0

at 125 V rated value4.2 A

at 230 V rated value2 A

at 24 V rated value1 A

Enclosure

design of the housingspecial design

material of the enclosureglass fiber reinforced thermoplast

coating of the enclosurenone

design of the housing according to standardNo

Drive Head

design of the actuating elementrotary actuator

design of the switching functionpositive opening

circuit principleslow-action contacts

number of switching contacts safety-related3

cable entry type2x (M20 x 1.5)

Installation/ mounting/ dimensions

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionscrew terminal

finely stranded with core end processing1x (0,5 ... 1 mm²)

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout
