How can I get a price quote for Siemens 3SE2243-0XX30?

You can request a fast quote for Siemens 3SE2243-0XX30 from Yılsa Engineering. Reference part number CEY-8EF3B02FC76D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE2243-0XX30 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE2243-0XX30 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE2243-0XX30?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

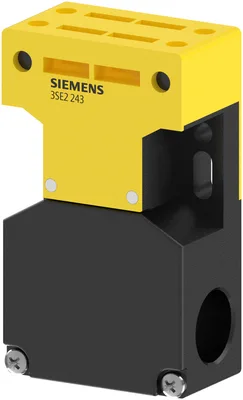

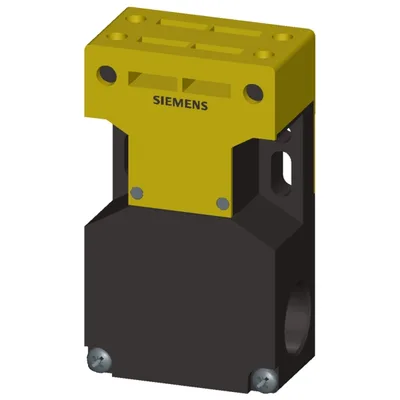

Siemens 3SE2243-0XX30

Not a phase-out type For 3SE2243/3SE2257, from August to October 2024, a color change from orange to yellow is planned. lateral and face-end Slow-action contacts 1 NO+2 NC, 3 x (M20 x 1.5) with automatic ejection Supplied without actuator

SiemensMFR # 3SE2243-0XX30SKU # CEY-8EF3B02FC76D

product brand nameSIRIUS

product designationsafety position switch

product type designation3SE22

insulation voltage rated value500 V

surge voltage resistance rated value6 kV

protection class IPIP67

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE2243-0XX30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationsafety position switch

product type designation3SE22

General technical data

insulation voltage rated value500 V

surge voltage resistance rated value6 kV

protection class IPIP67

mechanical service life (operating cycles) typical1 000 000

thermal current10 A

reference code according to IEC 81346-2B

active principlemechanical

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight0.14 kg

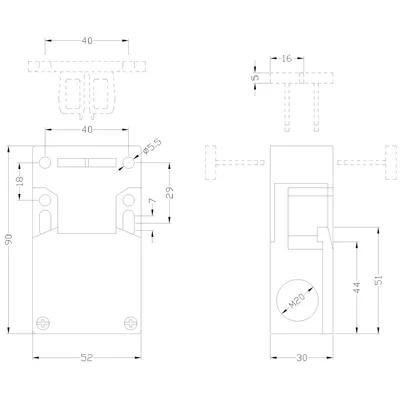

length of the sensor90 mm

width of the sensor52 mm

Ambient conditions

during operation-30 ... +80 °C

during storage-30 ... +80 °C

explosion protection category for dustnone

design of the switching contactmechanical

operating frequency rated value60 ... 50 Hz

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts1

at 230 V rated value4 A

at 24 V rated value4 A

Enclosure

design of the housingwide

material of the enclosureglass fiber reinforced thermoplast

coating of the enclosureOther types

design of the housing according to standardNo

Drive Head

design of the actuating elementwithout

design of the switching functionpositive opening

circuit principleslow-action contacts

number of switching contacts safety-related2

cable entry type3x (M20 x 1.5)

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionscrew terminal

solid2x (0.75 ... 2.5 mm²)

finely stranded with core end processing2x (0.75 ... 2.5 mm²)

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Accessories 5

Genuine accessories that can be used with the Siemens 3SE2243-0XX30 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SX3218	Seçmeli zorunlu ürün · Miscellaneous accessories · actuators
3SX3228	Seçmeli zorunlu ürün · Miscellaneous accessories · actuators
3SX3217	Seçmeli zorunlu ürün · Miscellaneous accessories · actuators
3SX3234	Seçmeli zorunlu ürün · Miscellaneous accessories · actuators
3SX3256	Seçmeli zorunlu ürün · Miscellaneous accessories · actuators
