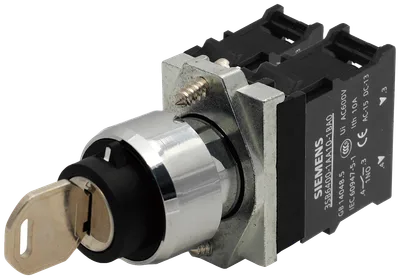

Siemens 3SB6160-4AL11-1NA0
Complete unit combination 22 mm metal shiny round key selector switch 3 switch positions KL-KC-KR with 2 keys 2X60DEG, V position latching removal pos. left, cent., right with holder screw terminal, 2 NO
product brand nameSIRIUS
product categoryCommanding and signaling devices
product designationKey-operated switch
design of the productComplete unit
product type designation3SB6
product lineMetal, shiny, 22 mm
About This Product
Complete unit combination 22 mm metal shiny round key selector switch 3 switch positions KL-KC-KR with 2 keys 2X60DEG, V position latching removal pos. left, cent., right with holder screw terminal, 2 NO
Siemens 3SB6160-4AL11-1NA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIRIUS
product categoryCommanding and signaling devices
product designationKey-operated switch
design of the productComplete unit
product type designation3SB6
product lineMetal, shiny, 22 mm
Enclosure
shape of the enclosure frontround
Actuator
principle of operation of the actuating elementmaintained
product extension optional light sourceNo
color of the actuating elementblack
number of switching positions3
Front ring
product component front ringNo
material of the front ringmetal
color of the front ringchrome
General technical data
product function positive openingYes
product component light sourceNo
protection class IPIP65
mechanical service life (operating cycles) typical50 000
electrical endurance (operating cycles) typical3 000 000
Substance Prohibitance (day/month/year)03/01/2017
Net Weight131.9 g
operating voltage rated value24 ... 415 V
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts2
number of CO contacts for auxiliary contacts0
Ambient conditions
during operation-25 ... +75 °C
during storage80 ... -40 °C
Installation/ mounting/ dimensions
fastening methodscrew fixing
mounting diameter22 mm
mounting height46.5 mm
installation width30 mm
Product information
EAN6939610737553
Product familyOrdering Data Overview
Life cycle statusActive
Commodity code85365000
Delivery and logistics
Country of originChina
Standard delivery time13 Day/Days
ReturnableYes
Net weight0.1319 Kg
Packaging dimensions (L x W x H)163 x 108 x 83 MM
Standard package quantity1 Piece
Minimum order quantity10
Dangerous goodsNo
Export control regulationsAL : N / ECCN : N
Environment and compliance
RoHS conformitySince: 01-03-17
WEEE category5
REACH informationReach Information
Siemens catalog
Product group3774
Catalog IDCC-IC10
Group codeR711
Product classStraightforward, can be reused over the short term
