How can I get a price quote for Siemens 3SB6160-2AM10-1NA0?

You can request a fast quote for Siemens 3SB6160-2AM10-1NA0 from Yılsa Engineering. Reference part number YLSJRSV3ZD1SUUA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SB6160-2AM10-1NA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SB6160-2AM10-1NA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SB6160-2AM10-1NA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

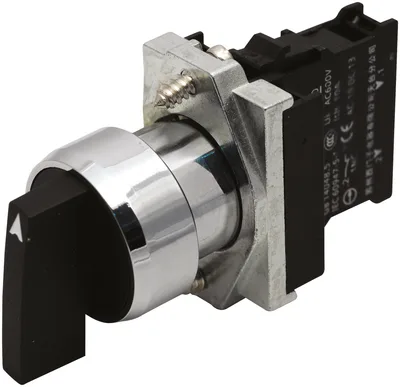

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3SB6160-2AM10-1NA0

Complete unit combination 22 mm metal shiny round selector switch 3 switch positions L>C<R 2X60DEG, V position momentary contact type non-illuminated with holder screw terminal, 2 NO black

SiemensMFR # 3SB6160-2AM10-1NA0SKU # YLSJRSV3ZD1SUUA

product brand nameSIRIUS

product categoryCommanding and signaling devices

product designationSelector switch

design of the productComplete unit

product type designation3SB6

product lineMetal, shiny, 22 mm

Have questions?Chat on WhatsApp

About This Product

Complete unit combination 22 mm metal shiny round selector switch 3 switch positions L>C<R 2X60DEG, V position momentary contact type non-illuminated with holder screw terminal, 2 NO black

Siemens 3SB6160-2AM10-1NA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryCommanding and signaling devices

product designationSelector switch

design of the productComplete unit

product type designation3SB6

product lineMetal, shiny, 22 mm

shape of the enclosure frontround

principle of operation of the actuating elementmomentary

product extension optional light sourceNo

color of the actuating elementblack

number of switching positions3

product component front ringNo

material of the front ringmetal

color of the front ringchrome

product component light sourceNo

protection class IPIP65

mechanical service life (operating cycles) typical300 000

electrical endurance (operating cycles) typical3 000 000

Substance Prohibitance (day/month/year)03/01/2017

Net Weight95.9 g

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts2

number of CO contacts for auxiliary contacts0

during operation-25 ... +75 °C

during storage-40 ... +80 °C

fastening methodscrew fixing

mounting diameter22 mm

mounting height46.5 mm

installation width30 mm

Product information

EAN6939610737430

Product familyOrdering Data Overview

Life cycle statusActive

Commodity code85365000

Delivery and logistics

Country of originChina

Standard delivery time13 Day/Days

ReturnableYes

Net weight0.0959 Kg

Packaging dimensions (L x W x H)163 x 108 x 83 MM

Standard package quantity1 Piece

Minimum order quantity10

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-03-17

WEEE category5

REACH informationReach Information

Siemens catalog

Product group3774

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term
