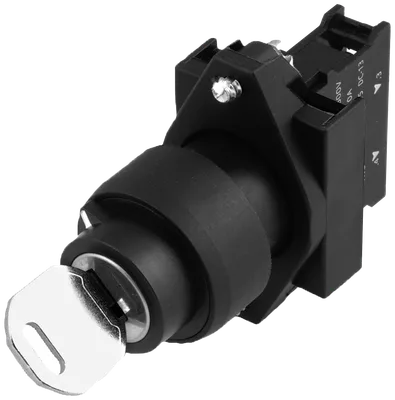

Siemens 3SB6110-4AA11-1BA0

Complete unit combination 22 mm plastic black round key selector switch 2 switch positions KL-KR with 2 keys 90DEG, V position latching removal pos. left and right with holder screw terminal, 1 NO

SiemensMFR # 3SB6110-4AA11-1BA0SKU # YLS9YQGU0NUKLVR

product brand nameSIRIUS

product categoryCommanding and signaling devices

product designationKey-operated switch

design of the productComplete unit

product type designation3SB6

product linePlastic, black, 22 mm

Have questions?Chat on WhatsApp

About This Product

Complete unit combination 22 mm plastic black round key selector switch 2 switch positions KL-KR with 2 keys 90DEG, V position latching removal pos. left and right with holder screw terminal, 1 NO

Siemens 3SB6110-4AA11-1BA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryCommanding and signaling devices

product designationKey-operated switch

design of the productComplete unit

product type designation3SB6

product linePlastic, black, 22 mm

Enclosure

shape of the enclosure frontround

Actuator

principle of operation of the actuating elementmaintained

product extension optional light sourceNo

color of the actuating elementblack

number of switching positions2

Front ring

product component front ringNo

material of the front ringplastic

color of the front ringblack

General technical data

product function positive openingYes

product component light sourceNo

protection class IPIP65

mechanical service life (operating cycles) typical50 000

electrical endurance (operating cycles) typical3 000 000

Substance Prohibitance (day/month/year)03/01/2017

Net Weight69.305 g

operating voltage rated value24 ... 415 V

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts1

number of CO contacts for auxiliary contacts0

Ambient conditions

during operation-25 ... +75 °C

during storage80 ... -40 °C

Installation/ mounting/ dimensions

fastening methodscrew fixing

mounting diameter22 mm

mounting height46.5 mm

installation width30 mm

Product information

EAN6939610742144

Product familyOrdering Data Overview

Life cycle statusActive

Commodity code85365000

Delivery and logistics

Country of originChina

Standard delivery time13 Day/Days

ReturnableYes

Net weight0.069305 Kg

Packaging dimensions (L x W x H)167 x 119 x 83 MM

Standard package quantity1 Piece

Minimum order quantity10

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-03-17

WEEE category5

REACH informationReach Information

Siemens catalog

Product group3774

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term
