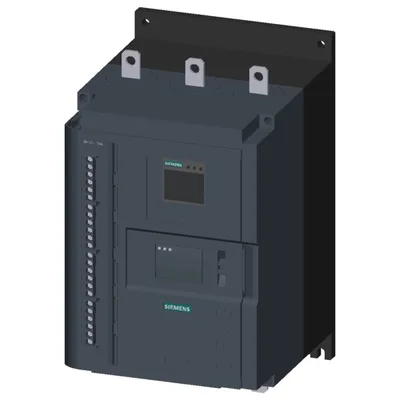

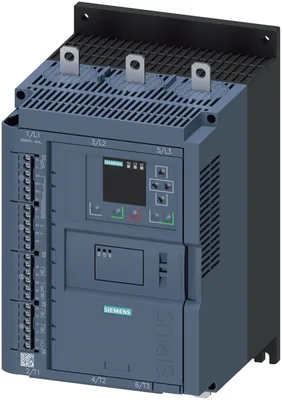

Siemens 3RW5534-6HA14

SIRIUS soft starter 200-480 V 113 A, 110-250 V AC Screw terminals

SiemensMFR # 3RW5534-6HA14SKU # CEY-937FC780C358

product brand nameSIRIUS

product categoryHybrid switching devices

product designationSoft starter

product type designation3RW55

of high feature HMI module usable3RW5980-0HF00

of communication module PROFIBUS usable3RW5980-0CP00

Have questions?Chat on WhatsApp

About This Product

SIRIUS soft starter 200-480 V 113 A, 110-250 V AC Screw terminals

Siemens 3RW5534-6HA14

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryHybrid switching devices

product designationSoft starter

product type designation3RW55

of high feature HMI module usable3RW5980-0HF00

of communication module PROFINET standard usable3RW5980-0CS00

of communication module PROFINET high-feature usable3RW5950-0CH00

of communication module PROFIBUS usable3RW5980-0CP00

of communication module Modbus TCP usable3RW5980-0CT00

of communication module Modbus RTU usable3RW5980-0CR00

of communication module Ethernet/IP3RW5980-0CE00

of circuit breaker usable at 400 V3VA2216-7MN32-0AA0; Type of coordination 1, Iq = 65 kA, CLASS 10

of circuit breaker usable at 400 V at inside-delta circuit3VA2220-7MN32-0AA0; Type of coordination 1, Iq = 65 kA, CLASS 10

of the gG fuse usable up to 690 V3NA3244-6; Type of coordination 1, Iq = 65 kA

of the gG fuse usable at inside-delta circuit up to 500 V3NA3244-6; Type of coordination 1, Iq = 65 kA

of full range R fuse link for semiconductor protection usable up to 690 V3NE1225-0; Type of coordination 2, Iq = 65 kA

of back-up R fuse link for semiconductor protection usable up to 690 V3NE3231; Type of coordination 2, Iq = 65 kA

General technical data

starting voltage [%]20 ... 100 %

stopping voltage [%]50 %; non-adjustable

start-up ramp time of soft starter0 ... 360 s

ramp-down time of soft starter0 ... 360 s

start torque [%]10 ... 100 %

stopping torque [%]10 ... 100 %

torque limitation [%]20 ... 200 %

current limiting value [%] adjustable125 ... 800 %

breakaway voltage [%] adjustable40 ... 100 %

breakaway time adjustable0 ... 2 s

number of parameter sets3

accuracy class5 (based on IEC 61557-12)

CE markingYes

UL approvalYes

CSA approvalYes

HMI-High FeatureYes

is supported HMI-High FeatureYes

product feature integrated bypass contact systemYes

number of controlled phases3

current unbalance limiting value [%]10 ... 60 %

ground-fault monitoring limiting value [%]10 ... 95 %

for main current circuit100 ms

for control circuit100 ms

idle time adjustable0 ... 255 s

insulation voltage rated value480 V

degree of pollution3, acc. to IEC 60947-4-2

impulse voltage rated value6 kV

blocking voltage of the thyristor maximum1 400 V

service factor1.15

surge voltage resistance rated value6 kV

between main and auxiliary circuit480 V; does not apply for thermistor connection

shock resistance15 g / 11 ms, from 6 g / 11 ms with potential contact lifting

vibration resistance15 mm up to 6 Hz; 2 g up to 500 Hz

recovery time after overload trip adjustable60 ... 1 800 s

utilization category according to IEC 60947-4-2AC 53a

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)02/15/2018

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Dibutylbis(pentane-2,4-dionato-O,O')tin CAS-No. 22673-19-4

Net Weight6.493 kg

ramp-up (soft starting)Yes

soft stoppingYes

breakaway pulseYes

adjustable current limitationYes

creep speed in both directions of rotationYes

pump stopYes

DC brakingYes

motor heatingYes

min/max pointerYes

trace functionYes

intrinsic device protectionYes

motor overload protectionYes; Full motor protection (thermistor motor protection and electronic motor overload protection) / When using the motor overload protection according to ATEX, an upstream contactor is required in inside-delta circuit.

evaluation of thermistor motor protectionYes; Type A PTC or Klixon / Thermoclick

inside-delta circuitYes

auto-RESETYes

manual RESETYes

remote resetYes

communication functionYes

operating measured value displayYes

event listYes

error logbookYes

via software parameterizableYes

via software configurableYes

screw terminalYes

spring-loaded terminalNo

PROFIenergyYes; in connection with the PROFINET Standard and PROFINET High-Feature communication modules

firmware updateYes

removable terminal for control circuitYes

voltage rampYes

torque controlYes

combined brakingYes

analog outputYes; 4 ... 20 mA (default) / 0 ... 10 V

programmable control inputs/outputsYes

condition monitoringYes

automatic parameterisationYes

application wizardsYes

alternative stopping modeYes

emergency operation modeYes

reversing operationYes

soft starting at heavy starting conditionsYes

Power Electronics

at 40 °C rated value113 A

at 40 °C rated value minimum23 A

at 50 °C rated value101 A

at 60 °C rated value89 A

at 40 °C rated value196 A

at 50 °C rated value175 A

at 60 °C rated value154 A

rated value200 ... 480 V

at inside-delta circuit rated value200 ... 480 V

relative negative tolerance of the operating voltage-15 %

relative positive tolerance of the operating voltage10 %

relative negative tolerance of the operating voltage at inside-delta circuit-15 %

relative positive tolerance of the operating voltage at inside-delta circuit10 %

at 230 V at 40 °C rated value30 kW

at 230 V at inside-delta circuit at 40 °C rated value55 kW

at 400 V at 40 °C rated value55 kW

at 400 V at inside-delta circuit at 40 °C rated value110 kW

Operating frequency 1 rated value50 Hz

Operating frequency 2 rated value60 Hz

relative negative tolerance of the operating frequency-10 %

relative positive tolerance of the operating frequency10 %

minimum load [%]10 %; Relative to set Ie

at 40 °C after startup34 W

at 50 °C after startup30 W

at 60 °C after startup27 W

at 40 °C during startup1 500 W

at 50 °C during startup1 279 W

at 60 °C during startup1 074 W

type of the motor protectionElectronic, tripping in the event of thermal overload of the motor

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz110 ... 250 V

at 60 Hz110 ... 250 V

relative negative tolerance of the control supply voltage at AC at 50 Hz-15 %

relative positive tolerance of the control supply voltage at AC at 50 Hz10 %

relative negative tolerance of the control supply voltage at AC at 60 Hz-15 %

relative positive tolerance of the control supply voltage at AC at 60 Hz10 %

control supply voltage frequency50 ... 60 Hz

relative negative tolerance of the control supply voltage frequency-10 %

relative positive tolerance of the control supply voltage frequency10 %

control supply current in standby mode rated value100 mA

holding current in bypass operation rated value180 mA

inrush current by closing the bypass contacts maximum0.8 A

inrush current peak at application of control supply voltage maximum43 A

duration of inrush current peak at application of control supply voltage1.6 ms

design of the overvoltage protectionVaristor

design of short-circuit protection for control circuit4 A gG fuse (Icu=1 kA), 6 A quick-acting fuse (Icu=1 kA), C1 miniature circuit breaker (Icu= 600 A), C6 miniature circuit breaker (Icu= 300 A); Is not part of scope of supply

Inputs/ Outputs

number of digital inputs4

parameterizable4

number of digital outputs4

number of digital outputs parameterizable3

number of digital outputs not parameterizable1

digital output version3 normally-open contacts (NO) / 1 changeover contact (CO)

number of analog outputs1

at AC-15 at 250 V rated value3 A

at DC-13 at 24 V rated value1 A

Installation/ mounting/ dimensions

mounting positionVertical (can be rotated +/- 90° and tilted forward or backward +/- 22.5°)

fastening methodscrew fixing

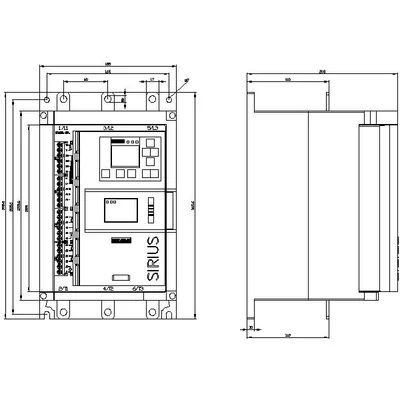

height306 mm

width185 mm

depth203 mm

forwards10 mm

backwards0 mm

upwards100 mm

downwards75 mm

at the side5 mm

weight without packaging6.85 kg

Connections/ Terminals

for main current circuitbusbar connection

for control circuitscrew-type terminals

width of connection bar maximum25 mm

with conductor cross-section = 0.5 mm² maximum50 m

with conductor cross-section = 1.5 mm² maximum150 m

with conductor cross-section = 2.5 mm² maximum250 m

for DIN cable lug for main contacts stranded2x (16 ... 95 mm²)

for DIN cable lug for main contacts finely stranded2x (25 ... 120 mm²)

for control circuit solid1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²)

for control circuit finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables for control circuit solid1x (20 ... 12), 2x (20 ... 14)

between soft starter and motor maximum800 m

at the digital inputs at DC maximum1 000 m

for main contacts with screw-type terminals10 ... 14 N·m

for auxiliary and control contacts with screw-type terminals0.8 ... 1.2 N·m

for main contacts with screw-type terminals89 ... 124 lbf·in

for auxiliary and control contacts with screw-type terminals7 ... 10.3 lbf·in

Ambient conditions

installation altitude at height above sea level maximum5 000 m

during operation-25 ... +60 °C; Please observe derating at temperatures of 40 °C or above

during storage and transport-40 ... +80 °C

during operation according to IEC 607213K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)

Electromagnetic compatibility

EMC emitted interferenceacc. to IEC 60947-4-2: Class A

Communication/ Protocol

PROFINET standardYes

PROFINET high-featureYes

EtherNet/IPYes

Modbus RTUYes

Modbus TCPYes

PROFIBUSYes

UL/CSA ratings

— at 460/480 V according to ULSiemens type: 3VA52, max. 250 A; Iq = 10 kA

— 60/480 V according to ULSiemens type: 3VA52, max. 250 A; Iq max = 65 kA

— at 460/480 V at inside-delta circuit according to ULSiemens type: 3VA52, max. 250 A; Iq = 10 kA

— 60/480 V at inside-delta circuit according to ULSiemens type: 3VA52, max. 250 A; Iq max = 65 kA

— at 575/600 V according to ULSiemens type: 3VA52, max. 250 A; Iq = 10 kA

— 75/600 V at inside-delta circuit according to ULSiemens type: 3VA52, max. 250 A; Iq max = 65 kA

— at 575/600 V at inside-delta circuit according to ULSiemens type: 3VA52, max. 250 A; Iq = 10 kA

— usable for Standard Faults up to 575/600 V according to ULType: Class RK5 / K5, max. 350 A; Iq = 10 kA

— usable for High Faults up to 575/600 V according to ULType: Class J / L, max. 350 A; Iq = 100 kA

— usable for Standard Faults at inside-delta circuit up to 575/600 V according to ULType: Class RK5 / K5, max. 350 A; Iq = 10 kA

— usable for High Faults at inside-delta circuit up to 575/600 V according to ULType: Class J / L, max. 350 A; Iq = 100 kA

at 200/208 V at 50 °C rated value30 hp

at 220/230 V at 50 °C rated value30 hp

at 460/480 V at 50 °C rated value75 hp

at 200/208 V at inside-delta circuit at 50 °C rated value50 hp

at 220/230 V at inside-delta circuit at 50 °C rated value60 hp

at 460/480 V at inside-delta circuit at 50 °C rated value125 hp

contact rating of auxiliary contacts according to ULR300-B300

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with cover

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front with cover

ATEX

Safety Integrity Level (SIL) according to IEC 61508 relating to ATEXSIL 1

PFHD with high demand rate according to IEC 61508 relating to ATEX5E-7 1/h

PFDavg with low demand rate according to IEC 61508 relating to ATEX0.008

hardware fault tolerance according to IEC 61508 relating to ATEX0

T1 value for proof test interval or service life according to IEC 61508 relating to ATEX3 a

ATEXYes

IECExYes

according to ATEX directive 2014/34/EUBVS 18 ATEX F 003 X

type of protection according to ATEX directive 2014/34/EUII (2)G [Ex eb Gb] [Ex db Gb] [Ex pxb Gb], II (2)D [Ex tb Db] [Ex pxb Db], I (M2) [Ex db Mb]

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing92.6 kg

global warming potential [CO2 eq] / during sales2.37 kg

global warming potential [CO2 eq] / during operation324 kg

global warming potential [CO2 eq] / after end of life-19.4 kg

global warming potential [CO2 eq] / total399 kg

Accessories 14

Genuine accessories that can be used with the Siemens 3RW5534-6HA14 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RW5950-0CH00	Aksesuar · Communication modules
3RW5980-0CP00	Aksesuar · Communication modules
3RW5980-0CR00	Aksesuar · Communication modules
3RW5980-0CS00	Aksesuar · Communication modules
3RW5980-0CT00	Aksesuar · Communication modules
3RW5980-0CE00	Aksesuar · Communication modules
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RW5983-0TC20	Aksesuar · Terminal covers
3RW5983-0FC00	Aksesuar · Fan covers
3RW5980-0HF00	Yedek parça · HMI modules
3VA2216-7MN32-0AA0	Seçmeli zorunlu ürün
3NA3244-6	Seçmeli zorunlu ürün
3NE1225-0	Seçmeli zorunlu ürün
3NE3231	Seçmeli zorunlu ürün
