How can I get a price quote for Siemens 3RW3026-1BB04?

You can request a fast quote for Siemens 3RW3026-1BB04 from Yılsa Engineering. Reference part number CEY-8EF3B030B4DF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RW3026-1BB04 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RW3026-1BB04 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RW3026-1BB04?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

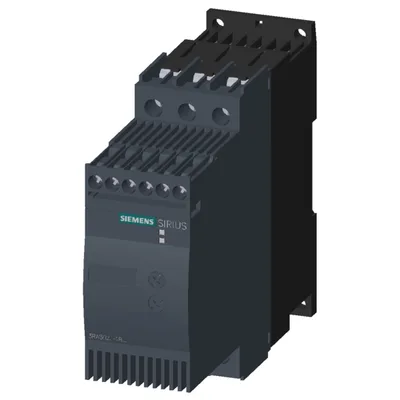

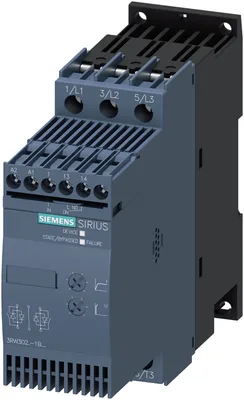

Siemens 3RW3026-1BB04

SIRIUS soft starter S0 25 A, 11 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Screw terminals

SiemensMFR # 3RW3026-1BB04SKU # CEY-8EF3B030B4DF

product brand nameSIRIUS

product designationSoft starter

integrated bypass contact systemYes

thyristorsYes

intrinsic device protectionNo

motor overload protectionNo

Have questions?Chat on WhatsApp

About This Product

SIRIUS soft starter S0 25 A, 11 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Screw terminals

Siemens 3RW3026-1BB04

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

product brand nameSIRIUS

product designationSoft starter

integrated bypass contact systemYes

thyristorsYes

intrinsic device protectionNo

motor overload protectionNo

evaluation of thermistor motor protectionNo

external resetNo

adjustable current limitationNo

inside-delta circuitNo

product component motor brake outputNo

insulation voltage rated value600 V

degree of pollution3, acc. to IEC 60947-4-2

blocking voltage of the thyristor maximum1 600 V

reference code according to EN 61346-2Q

reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750G

Power Electronics

at 40 °C rated value25 A

at 50 °C rated value23 A

at 60 °C rated value21 A

— at standard circuit at 40 °C rated value5.5 kW

— at standard circuit at 40 °C rated value11 kW

yielded mechanical performance [hp] for 3-phase AC motor at 200/208 V at standard circuit at 50 °C rated value5 hp

operating frequency rated value50 ... 60 Hz

relative negative tolerance of the operating frequency-10 %

relative positive tolerance of the operating frequency10 %

operating voltage at standard circuit rated value200 ... 480 V

relative negative tolerance of the operating voltage at standard circuit-15 %

relative positive tolerance of the operating voltage at standard circuit10 %

minimum load [%]10 %

continuous operating current [% of Ie] at 40 °C115 %

power loss [W] at operational current at 40 °C during operation typical8 W

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

control supply voltage frequency 1 rated value50 Hz

control supply voltage frequency 2 rated value60 Hz

relative negative tolerance of the control supply voltage frequency-10 %

relative positive tolerance of the control supply voltage frequency10 %

at 50 Hz rated value24 V

at 60 Hz rated value24 V

relative negative tolerance of the control supply voltage at AC at 50 Hz-20 %

relative positive tolerance of the control supply voltage at AC at 50 Hz20 %

relative negative tolerance of the control supply voltage at AC at 60 Hz-20 %

relative positive tolerance of the control supply voltage at AC at 60 Hz20 %

control supply voltage 1 at DC rated value24 V

relative negative tolerance of the control supply voltage at DC-20 %

relative positive tolerance of the control supply voltage at DC20 %

display version for fault signalred

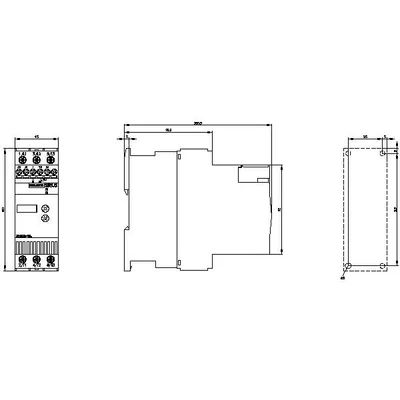

Mechanical data

size of engine control deviceS0

width45 mm

height125 mm

depth150 mm

fastening methodscrew and snap-on mounting

mounting positionWith vertical mounting surface +/-10° rotatable, with vertical mounting surface +/- 10° tiltable to the front and back

upwards60 mm

at the side15 mm

downwards40 mm

wire length maximum300 m

number of poles for main current circuit3

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts1

number of CO contacts for auxiliary contacts0

solid2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²)

finely stranded with core end processing2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²)

using the front clamping point1x 8, 2x (16 ... 10)

solid2x (0.5 ... 2.5 mm²)

finely stranded with core end processing2x (0.5 ... 1.5 mm²)

for auxiliary contacts2x (20 ... 14)

for auxiliary contacts finely stranded with core end processing2x (20 ... 16)

Ambient conditions

installation altitude at height above sea level5 000 m

during transport according to IEC 607212K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)

during storage according to IEC 607211K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4

during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during operation-25 ... +60 °C

during storage-40 ... +80 °C

derating temperature40 °C

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

UL/CSA ratings

— at standard circuit at 50 °C rated value5 hp

— at standard circuit at 50 °C rated value15 hp

contact rating of auxiliary contacts according to ULB300 / R300

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing11 kg

global warming potential [CO2 eq] / during sales0.151 kg

global warming potential [CO2 eq] / during operation128 kg

global warming potential [CO2 eq] / after end of life-2.27 kg

global warming potential [CO2 eq] / total137 kg

Accessories 10

Genuine accessories that can be used with the Siemens 3RW3026-1BB04 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RA2921-1BA00	Aksesuar · Wiring modules, connectors and kits · link modules
3RV2925-5AB	Aksesuar · Plugs, adapters and terminals · infeed terminals
8US1998-7CB45	Aksesuar
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RV2021-4BA10	Seçmeli zorunlu ürün
3NA3822-6	Seçmeli zorunlu ürün
3NE1803-0	Seçmeli zorunlu ürün
3NE4102	Seçmeli zorunlu ürün
3NE8017-1	Seçmeli zorunlu ürün
3NC2263	Seçmeli zorunlu ürün
