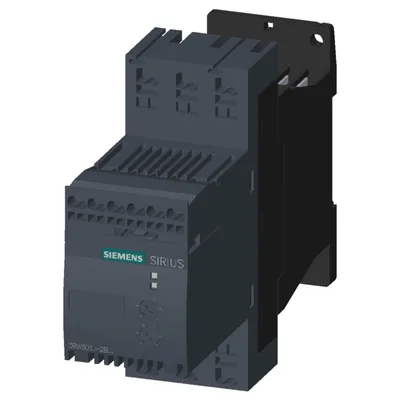

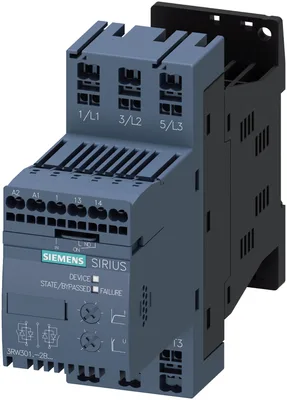

Siemens 3RW3018-2BB04

SIRIUS soft starter S00 17.6 A, 7.5 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Spring-type terminals

SiemensMFR # 3RW3018-2BB04SKU # CEY-8EF3B02FF519

product brand nameSIRIUS

product designationSoft starter

integrated bypass contact systemYes

thyristorsYes

intrinsic device protectionNo

motor overload protectionNo

Have questions?Chat on WhatsApp

About This Product

SIRIUS soft starter S00 17.6 A, 7.5 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Spring-type terminals

Siemens 3RW3018-2BB04

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

product brand nameSIRIUS

product designationSoft starter

integrated bypass contact systemYes

thyristorsYes

intrinsic device protectionNo

motor overload protectionNo

evaluation of thermistor motor protectionNo

external resetNo

adjustable current limitationNo

inside-delta circuitNo

product component motor brake outputNo

insulation voltage rated value600 V

degree of pollution3, acc. to IEC 60947-4-2

blocking voltage of the thyristor maximum1 200 V

reference code according to EN 61346-2Q

reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750G

Power Electronics

at 40 °C rated value17.6 A

at 50 °C rated value17 A

at 60 °C rated value14 A

— at standard circuit at 40 °C rated value4 kW

— at standard circuit at 40 °C rated value7.5 kW

yielded mechanical performance [hp] for 3-phase AC motor at 200/208 V at standard circuit at 50 °C rated value3 hp

operating frequency rated value50 ... 60 Hz

relative negative tolerance of the operating frequency-10 %

relative positive tolerance of the operating frequency10 %

operating voltage at standard circuit rated value200 ... 480 V

relative negative tolerance of the operating voltage at standard circuit-15 %

relative positive tolerance of the operating voltage at standard circuit10 %

minimum load [%]10 %

continuous operating current [% of Ie] at 40 °C115 %

power loss [W] at operational current at 40 °C during operation typical4 W

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

control supply voltage frequency 1 rated value50 Hz

control supply voltage frequency 2 rated value60 Hz

relative negative tolerance of the control supply voltage frequency-10 %

relative positive tolerance of the control supply voltage frequency10 %

at 50 Hz rated value24 V

at 60 Hz rated value24 V

relative negative tolerance of the control supply voltage at AC at 50 Hz-20 %

relative positive tolerance of the control supply voltage at AC at 50 Hz20 %

relative negative tolerance of the control supply voltage at AC at 60 Hz-20 %

relative positive tolerance of the control supply voltage at AC at 60 Hz20 %

control supply voltage 1 at DC rated value24 V

relative negative tolerance of the control supply voltage at DC-20 %

relative positive tolerance of the control supply voltage at DC20 %

display version for fault signalred

Mechanical data

size of engine control deviceS00

width45 mm

height120 mm

depth150 mm

fastening methodscrew and snap-on mounting

mounting positionWith vertical mounting surface +/-10° rotatable, with vertical mounting surface +/- 10° tiltable to the front and back

upwards60 mm

at the side15 mm

downwards40 mm

wire length maximum300 m

number of poles for main current circuit3

Connections/ Terminals

for main current circuitspring-loaded terminals

for auxiliary and control circuitspring-loaded terminals

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts1

number of CO contacts for auxiliary contacts0

solid2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²)

finely stranded with core end processing2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²)

using the front clamping point2x (16 ... 10)

solid1 ... 4 mm²

finely stranded with core end processing1 ... 2.5 mm²

solid2x (0.25 ... 2.5 mm²)

finely stranded with core end processing2x (0.25 ... 1.5 mm²)

for main contacts16 ... 12

for auxiliary contacts2x (24 ... 14)

Ambient conditions

installation altitude at height above sea level5 000 m

during transport according to IEC 607212K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)

during storage according to IEC 607211K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4

during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during operation-25 ... +60 °C

during storage-40 ... +80 °C

derating temperature40 °C

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

UL/CSA ratings

— at standard circuit at 50 °C rated value3 hp

— at standard circuit at 50 °C rated value10 hp

contact rating of auxiliary contacts according to ULB300 / R300

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing11.1 kg

global warming potential [CO2 eq] / during sales0.109 kg

global warming potential [CO2 eq] / during operation54.3 kg

global warming potential [CO2 eq] / after end of life-1.64 kg

global warming potential [CO2 eq] / total63.9 kg
