How can I get a price quote for Siemens 3RW3003-2CB54?

You can request a fast quote for Siemens 3RW3003-2CB54 from Yılsa Engineering. Reference part number CEY-8EF3B03148FB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RW3003-2CB54 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RW3003-2CB54 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RW3003-2CB54?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

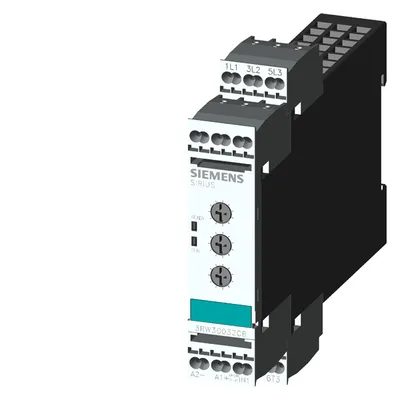

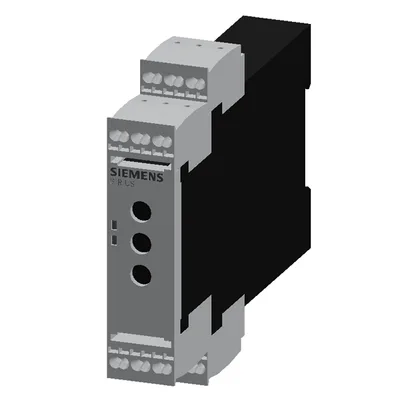

Siemens 3RW3003-2CB54

SIRIUS soft starter 22.5mm 3 A, 1.1 kW/400 V, 40 °C 200-400 V AC, 24-230 V AC/DC spring-type terminals

SiemensMFR # 3RW3003-2CB54SKU # CEY-8EF3B03148FB

product brand nameSIRIUS

product designationSoft starter

integrated bypass contact systemNo

thyristorsYes

intrinsic device protectionNo

motor overload protectionNo

Have questions?Chat on WhatsApp

About This Product

SIRIUS soft starter 22.5mm 3 A, 1.1 kW/400 V, 40 °C 200-400 V AC, 24-230 V AC/DC spring-type terminals

Siemens 3RW3003-2CB54

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

product brand nameSIRIUS

product designationSoft starter

integrated bypass contact systemNo

thyristorsYes

intrinsic device protectionNo

motor overload protectionNo

evaluation of thermistor motor protectionNo

external resetNo

adjustable current limitationNo

inside-delta circuitNo

product component motor brake outputNo

insulation voltage rated value600 V

degree of pollution3, acc. to IEC 60947-4-2

reference code according to EN 61346-2Q

reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750G

Power Electronics

at 40 °C rated value3 A

at 50 °C rated value2.6 A

at 60 °C rated value2.2 A

— at standard circuit at 40 °C rated value0.55 kW

— at standard circuit at 40 °C rated value1.1 kW

yielded mechanical performance [hp] for 3-phase AC motor at 200/208 V at standard circuit at 50 °C rated value0.5 hp

operating frequency rated value50 ... 60 Hz

relative negative tolerance of the operating frequency-10 %

relative positive tolerance of the operating frequency10 %

operating voltage at standard circuit rated value200 ... 400 V

relative negative tolerance of the operating voltage at standard circuit-10 %

relative positive tolerance of the operating voltage at standard circuit10 %

minimum load [%]9 %

continuous operating current [% of Ie] at 40 °C100 %

power loss [W] at operational current at 40 °C during operation typical6.5 W

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

control supply voltage frequency 1 rated value50 Hz

control supply voltage frequency 2 rated value60 Hz

control supply voltage 1 at AC at 50 Hz24 ... 230 V

control supply voltage 1 at AC at 60 Hz24 ... 230 V

relative negative tolerance of the control supply voltage at AC at 50 Hz-10 %

relative positive tolerance of the control supply voltage at AC at 50 Hz10 %

relative negative tolerance of the control supply voltage at AC at 60 Hz-10 %

relative positive tolerance of the control supply voltage at AC at 60 Hz10 %

control supply voltage 1 at DC24 ... 230 V

relative negative tolerance of the control supply voltage at DC-10 %

relative positive tolerance of the control supply voltage at DC10 %

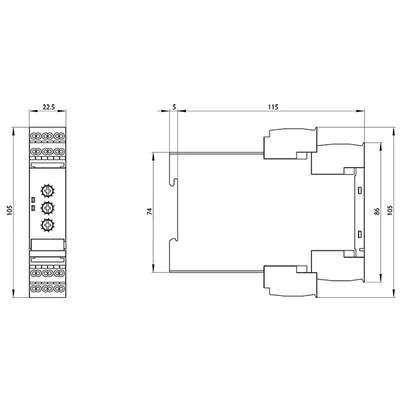

Mechanical data

width22.5 mm

height102 mm

depth123 mm

fastening methodscrew and snap-on mounting

mounting positionWith vertical mounting surface +/-10° rotatable, with vertical mounting surface +/- 10° tiltable to the front and back

wire length maximum100 m

number of poles for main current circuit3

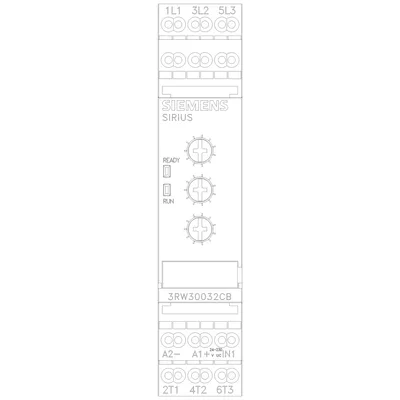

Connections/ Terminals

for main current circuitspring-loaded terminals

for auxiliary and control circuitspring-loaded terminals

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

solid2x (0.25 ... 1.5 mm²)

finely stranded with core end processing2x (0.25 ... 1 mm²)

solid2x (0.25 ... 1.5 mm²)

finely stranded with core end processing2x (0.25 ... 1.0 mm²)

for main contacts2x (24 ... 16)

for auxiliary contacts2x (24 ... 16)

Ambient conditions

installation altitude at height above sea level5 000 m

during transport according to IEC 607212K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)

during storage according to IEC 607211K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4

during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during operation-25 ... +60 °C

during storage-40 ... +80 °C

derating temperature40 °C

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

UL/CSA ratings

— at standard circuit at 50 °C rated value0.5 hp

contact rating of auxiliary contacts according to ULB300 / R300
