How can I get a price quote for Siemens 3RV2917-4A?

You can request a fast quote for Siemens 3RV2917-4A from Yılsa Engineering. Reference part number CEY-8EF3B0327EA7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RV2917-4A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RV2917-4A genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RV2917-4A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

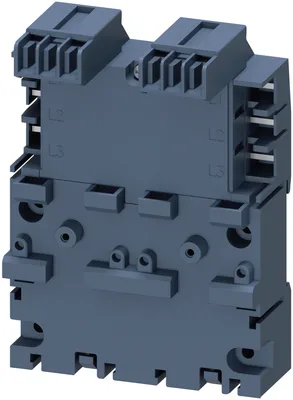

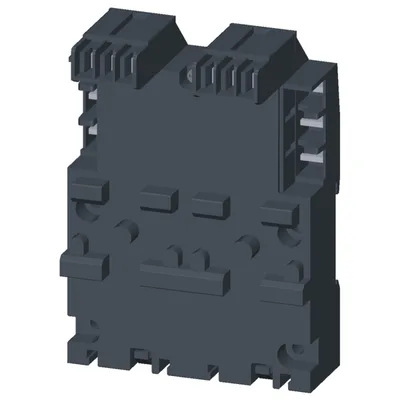

Siemens 3RV2917-4A

3-phase busbar including extension connector for 2 circuit breakers Size S00 and S0

SiemensMFR # 3RV2917-4ASKU # CEY-8EF3B0327EA7

product brand nameSIRIUS

product categoryInfeed systems

product designation3-phase busbar

design of the productfor 2 switches

product type designation3RV29

suitability for usecircuit-breakers 3RV2

Have questions?Chat on WhatsApp

About This Product

3-phase busbar including extension connector for 2 circuit breakers Size S00 and S0

Siemens 3RV2917-4A

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryInfeed systems

product designation3-phase busbar

design of the productfor 2 switches

product type designation3RV29

suitability for usecircuit-breakers 3RV2

General technical data

certificate of suitabilityCE / UL / CSA / CCC

size of the circuit-breakerS00, S0

power loss [W] for rated value of the current at AC in hot operating state per pole7.1 W

type of calculation of power loss current-dependentquadratic

surge voltage resistance rated value6 kV

protection class IP on the front according to IEC 60529IP20

thermal current63 A

Substance Prohibitance (day/month/year)10/01/2009

Net Weight0.212 kg

number of poles for main current circuit3

operating voltage at AC rated value500 V

operational current rated value63 A

UL/CSA ratings

operating voltage at AC according to UL rated value600 V

Ambient conditions

ambient temperature during operation-20 ... +60 °C

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Short-circuit protection

short-circuit ratingsee table in the operating instructions

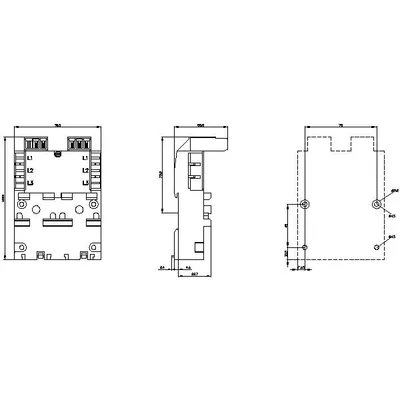

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on fastening on 35 mm DIN rail

height129 mm

width91 mm

depth59 mm

— backwards0 mm

— upwards10 mm

— at the side0 mm

— backwards0 mm

— upwards10 mm

— at the side0 mm

— backwards0 mm

— upwards10 mm

— at the side0 mm

Connections/ Terminals

type of electrical connection for main current circuitplug-in without terminals
