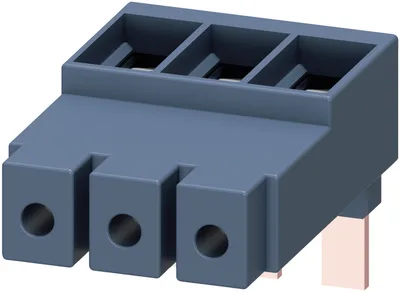

Siemens 3RV1935-5A
Successor SIRIUS Innovation 3RV2 for 3-phase busbar connection from top
product brand nameSIRIUS
product categoryPlugs, adapters and terminals
product designation3-phase supply terminal
design of the productSize S2
product type designation3RV19
certificate of suitabilityCE / UL / CSA / CCC
About This Product
Successor SIRIUS Innovation 3RV2 for 3-phase busbar connection from top
Siemens 3RV1935-5A
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIRIUS
product categoryPlugs, adapters and terminals
product designation3-phase supply terminal
design of the productSize S2
product type designation3RV19
General technical data
certificate of suitabilityCE / UL / CSA / CCC
size of the circuit-breakerS2
insulation voltage with degree of pollution 3 at AC rated value690 V
protection class IP on the front according to IEC 60529IP20
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0.12 kg
ampacity maximum108 A
Ambient conditions
during operation-20 ... +60 °C
during storage-50 ... +80 °C
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

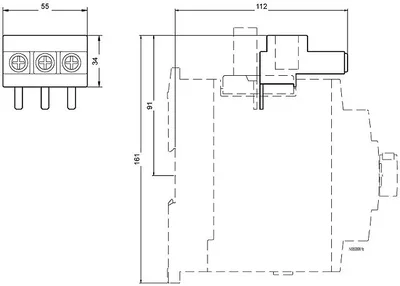

Installation/ mounting/ dimensions
height59 mm
width54 mm
depth44 mm
Connections/ Terminals
type of electrical connection for main current circuitscrew-type terminals
— solid1x (10 ... 50 mm²)
— stranded1x (10 ... 50 mm²)
for AWG cables for main contacts1x (8 ... 0)
solid or stranded10 ... 50 mm²
stranded10 ... 50 mm²
AWG number as coded connectable conductor cross section for main contacts8 ... 0
