How can I get a price quote for Siemens 3RV1927-5A?

You can request a fast quote for Siemens 3RV1927-5A from Yılsa Engineering. Reference part number CEY-937FC77F69D8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RV1927-5A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RV1927-5A genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RV1927-5A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

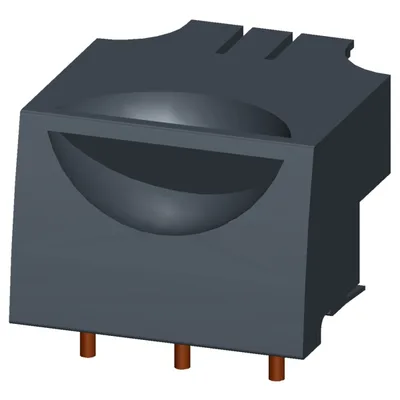

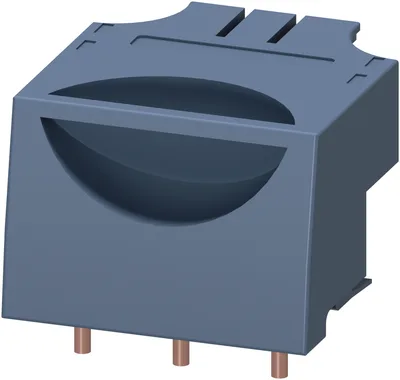

Siemens 3RV1927-5A

cable connector for circuit breaker frame size S0 with screw terminal multi-unit packaging 10 units

SiemensMFR # 3RV1927-5ASKU # CEY-937FC77F69D8

product brand nameSIRIUS

product categoryInfeed systems

product designationConnection plug

product type designation3RV19

suitability for usecircuit-breakers 3RV2

size of the circuit-breakerS0

Have questions?Chat on WhatsApp

About This Product

cable connector for circuit breaker frame size S0 with screw terminal multi-unit packaging 10 units

Siemens 3RV1927-5A

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryInfeed systems

product designationConnection plug

product type designation3RV19

suitability for usecircuit-breakers 3RV2

General technical data

size of the circuit-breakerS0

power loss [W] for rated value of the current at AC in hot operating state per pole1.6 W

type of calculation of power loss current-dependentquadratic

protection class IP on the front according to IEC 60529IP20

thermal current32 A

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.039 kg

number of poles for main current circuit3

operating voltage at AC rated value690 V

operational current rated value32 A

UL/CSA ratings

operating voltage at AC according to UL rated value600 V

Ambient conditions

ambient temperature during operation-20 ... +60 °C

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Short-circuit protection

short-circuit ratingsee table in the operating instructions

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew connection in the circuit breaker, pluggable in the infeed system with spring-loaded mechanism

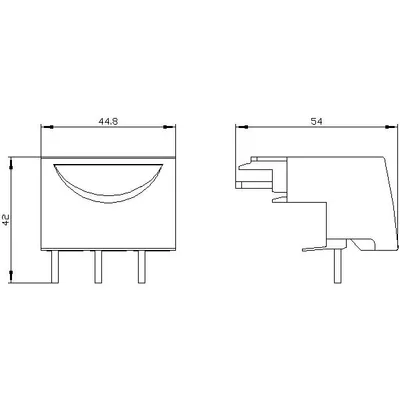

height42 mm

width44.8 mm

depth54 mm

Connections/ Terminals

type of electrical connection for main current circuitscrew-type terminals

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.313 kg

global warming potential [CO2 eq] / during operation8.72 kg

global warming potential [CO2 eq] / after end of life0.0218 kg

global warming potential [CO2 eq] / total9.06 kg
