How can I get a price quote for Siemens 3RV1917-5CA00?

You can request a fast quote for Siemens 3RV1917-5CA00 from Yılsa Engineering. Reference part number CEY-8EF3B03084CF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RV1917-5CA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RV1917-5CA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RV1917-5CA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

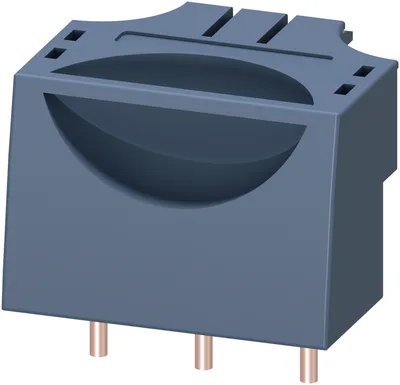

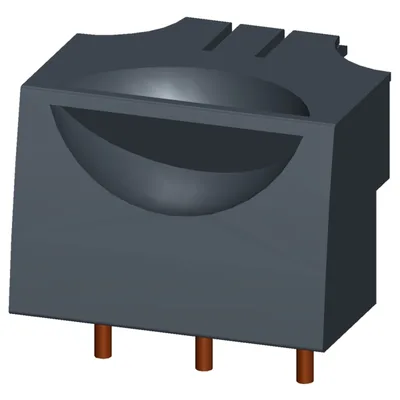

Siemens 3RV1917-5CA00

cable connector for circuit breaker 3RV1011 with screw terminal (individual unit packaging)

SiemensMFR # 3RV1917-5CA00SKU # CEY-8EF3B03084CF

product brand nameSIRIUS

product categoryInfeed systems

product designationConnection plug

product type designation3RV19

suitability for usecircuit breaker 3RV1

size of the circuit-breakerS00

Have questions?Chat on WhatsApp

About This Product

cable connector for circuit breaker 3RV1011 with screw terminal (individual unit packaging)

Siemens 3RV1917-5CA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryInfeed systems

product designationConnection plug

product type designation3RV19

suitability for usecircuit breaker 3RV1

General technical data

size of the circuit-breakerS00

power loss [W] for rated value of the current at AC in hot operating state per pole0.22 W

type of calculation of power loss current-dependentquadratic

protection class IP on the front according to IEC 60529IP20

thermal current12 A

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.026 kg

number of poles for main current circuit3

operating voltage at AC rated value500 V

operational current rated value12 A

UL/CSA ratings

operating voltage at AC according to UL rated value600 V

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Short-circuit protection

short-circuit ratingsee table in the operating instructions

Connections/ Terminals

type of electrical connection for main current circuitplug-in without terminals

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.313 kg

global warming potential [CO2 eq] / during operation8.72 kg

global warming potential [CO2 eq] / after end of life0.0218 kg

global warming potential [CO2 eq] / total9.06 kg
