How can I get a price quote for Siemens 3RU2126-4FB0?

You can request a fast quote for Siemens 3RU2126-4FB0 from Yılsa Engineering. Reference part number CEY-8EF3B0328B70. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RU2126-4FB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RU2126-4FB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RU2126-4FB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

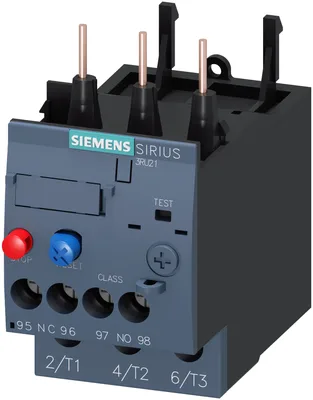

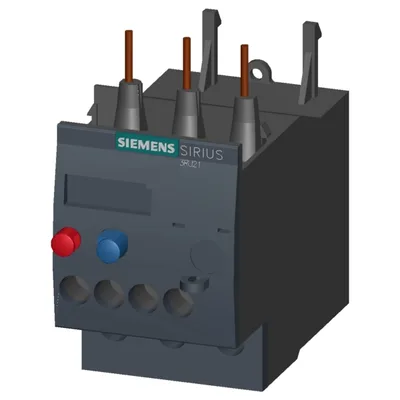

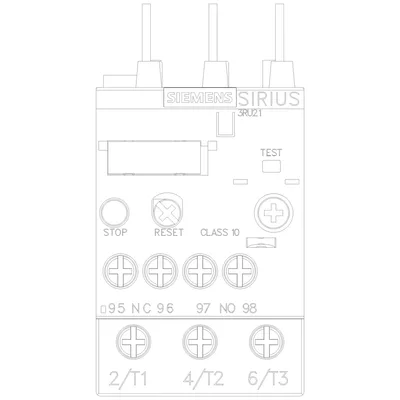

Siemens 3RU2126-4FB0

Overload relay 34...40 A Thermal For motor protection Size S0, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset

SiemensMFR # 3RU2126-4FB0SKU # CEY-8EF3B0328B70

product brand nameSIRIUS

product designationthermal overload relay

product type designation3RU2

size of overload relayS0

per pole3.2 W

surge voltage resistance rated value6 kV

Have questions?Chat on WhatsApp

About This Product

Overload relay 34...40 A Thermal For motor protection Size S0, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset

Siemens 3RU2126-4FB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationthermal overload relay

product type designation3RU2

General technical data

size of overload relayS0

size of contactor can be combined company-specificS0

power loss [W] for rated value of the current at AC in hot operating state9.6 W

per pole3.2 W

type of calculation of power loss current-dependentquadratic

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

in networks with ungrounded star point between auxiliary and auxiliary circuit440 V

in networks with grounded star point between auxiliary and auxiliary circuit440 V

in networks with ungrounded star point between main and auxiliary circuit440 V

in networks with grounded star point between main and auxiliary circuit440 V

shock resistance according to IEC 60068-2-278g / 11 ms

reference code according to IEC 81346-2F

Substance Prohibitance (day/month/year)10/01/2009

Net Weight0.176 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-40 ... +70 °C

during storage-55 ... +80 °C

during transport-55 ... +80 °C

temperature compensation-40 ... +60 °C

relative humidity during operation10 ... 95 %

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release34 ... 40 A

rated value690 V

at AC-3e rated value maximum690 V

operating frequency rated value50 ... 60 Hz

operational current rated value40 A

operational current at AC-3e at 400 V rated value40 A

— at 400 V rated value18.5 kW

— at 500 V rated value22 kW

— at 690 V rated value37 kW

— at 400 V rated value18.5 kW

— at 500 V rated value22 kW

— at 690 V rated value37 kW

Auxiliary circuit

design of the auxiliary switchintegrated

number of NC contacts for auxiliary contacts1

notefor contactor disconnection

number of NO contacts for auxiliary contacts1

notefor message "Tripped"

number of CO contacts for auxiliary contacts0

at 24 V3 A

at 110 V3 A

at 120 V3 A

at 125 V3 A

at 230 V2 A

at 400 V1 A

at 690 V0.75 A

at 24 V2 A

at 60 V0.3 A

at 110 V0.22 A

at 125 V0.22 A

at 220 V0.11 A

contact rating of auxiliary contacts according to ULB600 / R300

Protective and monitoring functions

trip classCLASS 10

design of the overload releasethermal

UL/CSA ratings

at 480 V rated value40 A

at 600 V rated value40 A

Short-circuit protection

for short-circuit protection of the auxiliary switch requiredfuse gG: 6 A, quick: 10 A

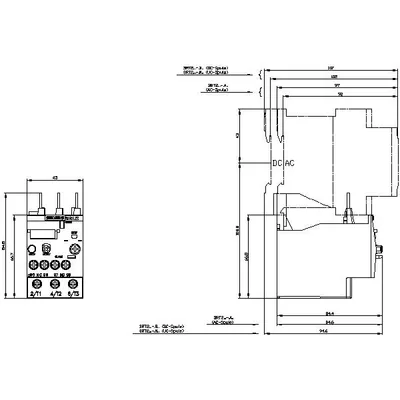

Installation/ mounting/ dimensions

mounting positionfor mounting on contactors: with a vertical mounting plane +/-135° rotatable & +/- 22.5° tiltable, stand-alone installation: with a vertical mounting plane +/-135° rotatable and +/-45° tiltable; for more details see manual

fastening methodContactor mounting

height85 mm

width45 mm

depth85 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitNo

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

arrangement of electrical connectors for main current circuitTop and bottom

— solid or stranded2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²)

— finely stranded with core end processing2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²

for AWG cables for main contacts2x (16 ... 12), 2x (14 ... 8)

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14)

for main contacts with screw-type terminals2 ... 2.5 N·m

for auxiliary contacts with screw-type terminals0.8 ... 1.2 N·m

design of screwdriver shaftDiameter 5 ... 6 mm

size of the screwdriver tipPozidriv PZ 2

for main contactsM4

of the auxiliary and control contactsM3

Safety related data

failure rate [FIT] with low demand rate according to SN 3192050 FIT

MTTF with high demand rate2 280 a

IEC 61508

for proof test interval or service life according to IEC 6150820 a

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Display

display version for switching statusSlide switch

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing1.21 kg

global warming potential [CO2 eq] / during sales0.0471 kg

global warming potential [CO2 eq] / during operation55.4 kg

global warming potential [CO2 eq] / after end of life-0.0268 kg

global warming potential [CO2 eq] / total56.6 kg

Accessories 4

Genuine accessories that can be used with the Siemens 3RU2126-4FB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RV2908-0P	Aksesuar · Sealing covers · sealing covers
3RT2028-1BB40	Seçmeli zorunlu ürün
3RU2926-3AA01	Seçmeli zorunlu ürün · terminal support · stand-alone installation supports
3RT2028-1AP00	Seçmeli zorunlu ürün
