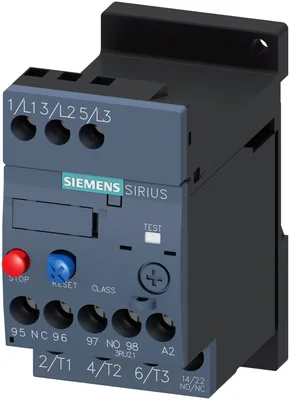

Siemens 3RU2116-1BB1

Overload relay 1.4...2.0 A Thermal For motor protection Size S00, Class 10 Stand-alone installation Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset

SiemensMFR # 3RU2116-1BB1SKU # CEY-8EF3B02FE3C8

product brand nameSIRIUS

product designationthermal overload relay

product type designation3RU2

size of overload relayS00

per pole1.9 W

surge voltage resistance rated value6 kV

Have questions?Chat on WhatsApp

About This Product

Overload relay 1.4...2.0 A Thermal For motor protection Size S00, Class 10 Stand-alone installation Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset

Siemens 3RU2116-1BB1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationthermal overload relay

product type designation3RU2

General technical data

size of overload relayS00

size of contactor can be combined company-specificS00

power loss [W] for rated value of the current at AC in hot operating state5.7 W

per pole1.9 W

type of calculation of power loss current-dependentquadratic

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

in networks with ungrounded star point between auxiliary and auxiliary circuit440 V

in networks with grounded star point between auxiliary and auxiliary circuit440 V

in networks with ungrounded star point between main and auxiliary circuit440 V

in networks with grounded star point between main and auxiliary circuit440 V

shock resistance according to IEC 60068-2-278g / 11 ms

reference code according to IEC 81346-2F

Substance Prohibitance (day/month/year)10/01/2009

Net Weight0.163 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-40 ... +70 °C

during storage-55 ... +80 °C

during transport-55 ... +80 °C

temperature compensation-40 ... +60 °C

relative humidity during operation10 ... 95 %

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release1.4 ... 2 A

rated value690 V

at AC-3e rated value maximum690 V

operating frequency rated value50 ... 60 Hz

operational current rated value2 A

operational current at AC-3e at 400 V rated value2 A

— at 400 V rated value0.75 kW

— at 500 V rated value0.75 kW

— at 690 V rated value1.1 kW

— at 400 V rated value0.75 kW

— at 500 V rated value0.75 kW

— at 690 V rated value1.1 kW

Auxiliary circuit

design of the auxiliary switchintegrated

number of NC contacts for auxiliary contacts1

notefor contactor disconnection

number of NO contacts for auxiliary contacts1

notefor message "Tripped"

number of CO contacts for auxiliary contacts0

at 24 V3 A

at 110 V3 A

at 120 V3 A

at 125 V3 A

at 230 V2 A

at 400 V1 A

at 690 V0.75 A

at 24 V2 A

at 60 V0.3 A

at 110 V0.22 A

at 125 V0.22 A

at 220 V0.11 A

contact rating of auxiliary contacts according to ULB600 / R300

Protective and monitoring functions

trip classCLASS 10

design of the overload releasethermal

UL/CSA ratings

at 480 V rated value2 A

at 600 V rated value2 A

Short-circuit protection

for short-circuit protection of the auxiliary switch requiredfuse gG: 6 A, quick: 10 A

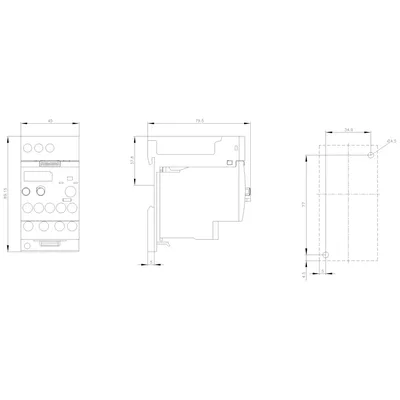

Installation/ mounting/ dimensions

mounting positionstand-alone installation: with a vertical mounting plane +/-135° rotatable and +/-45° tiltable; for more details see manual

fastening methodstand-alone installation

height89 mm

width45 mm

depth80 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitNo

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

arrangement of electrical connectors for main current circuitTop and bottom

— solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x 4 mm²

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for main contacts2x (20 ... 16), 2x (18 ... 14), 2x 12

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14)

for main contacts with screw-type terminals0.8 ... 1.2 N·m

for auxiliary contacts with screw-type terminals0.8 ... 1.2 N·m

design of screwdriver shaftDiameter 5 ... 6 mm

size of the screwdriver tipPozidriv PZ 2

for main contactsM3

of the auxiliary and control contactsM3

Safety related data

failure rate [FIT] with low demand rate according to SN 3192050 FIT

MTTF with high demand rate2 280 a

IEC 61508

for proof test interval or service life according to IEC 6150820 a

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Display

display version for switching statusSlide switch

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.978 kg

global warming potential [CO2 eq] / during sales0.0425 kg

global warming potential [CO2 eq] / during operation39 kg

global warming potential [CO2 eq] / after end of life-0.0449 kg

global warming potential [CO2 eq] / total39.9 kg
