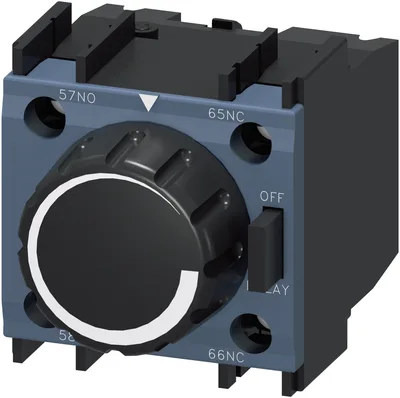

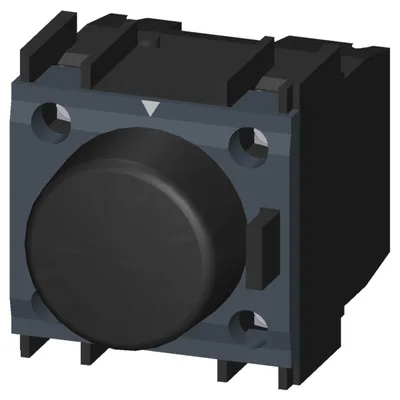

Siemens 3RT2927-2PR11

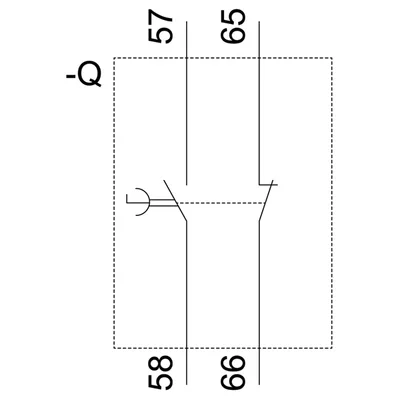

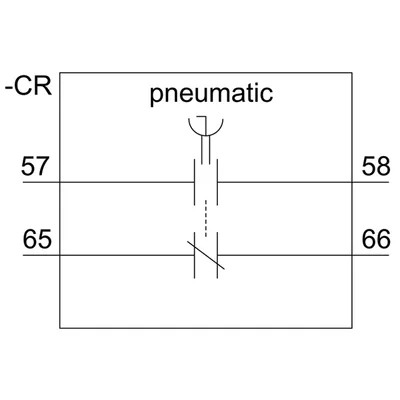

pneumatically time-delayed auxiliary switch, off delayed 10-180 s, 1 NO + 1 NC, for mounting to contactors 3RT202

SiemensMFR # 3RT2927-2PR11SKU # YLS3UF3NDQD4VW

product brand nameSIRIUS

product categoryPneumatic delay blocks

product designationpneumatic delay block

design of the productoff delay

product type designation3RT29

certificate of suitabilityCE / UL / CSA / CCC

Have questions?Chat on WhatsApp

About This Product

pneumatically time-delayed auxiliary switch, off delayed 10-180 s, 1 NO + 1 NC, for mounting to contactors 3RT202

Siemens 3RT2927-2PR11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryPneumatic delay blocks

product designationpneumatic delay block

design of the productoff delay

product type designation3RT29

General technical data

certificate of suitabilityCE / UL / CSA / CCC

size of contactorS0

insulation voltage with degree of pollution 3 at AC rated value690 V

protection class IP on the frontIP20

mechanical service life (operating cycles) typical3 000 000

with 3RT2.2 contactor3 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical200 000

adjustable OFF-delay time10 ... 180 s

relative accuracy of the operating delay time/backslide delay time10 %

active principlepneumatic

Substance Prohibitance (day/month/year)10/01/2009

Net Weight0.09 kg

Switching Function

ON-delayNo

OFF delayYes

number of NC contacts delayed switching1

number of NO contacts delayed switching1

at 500 V rated value2.5 A

at 690 V rated value1.5 A

at 230 V6 A

at 400 V4 A

at 500 V2.5 A

operational current of auxiliary contacts at AC-12 maximum10 A

at 230 V6 A

at 400 V4 A

at 24 V4 A

at 48 V2 A

at 110 V0.7 A

at 220 V0.3 A

at 440 V0.15 A

Ambient conditions

during operation0 ... 60 °C

during storage-50 ... +80 °C

Electrical Safety

touch protection against electrical shockfinger-safe

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredFuse gG 10 A with short-circuit current Ik = 1 kA according to IEC 60947-5-1

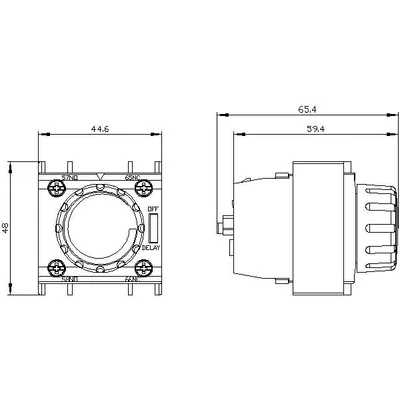

Installation/ mounting/ dimensions

mounting positionany

fastening methodclip-on

height45 mm

width45 mm

depth60 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuitscrew-type terminals

solid or stranded0.5 ... 2.5 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
