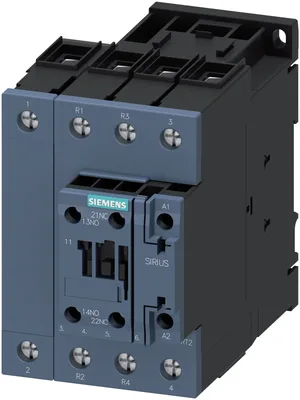

Photo may not represent actual item. Refer to name and product specs for all details.

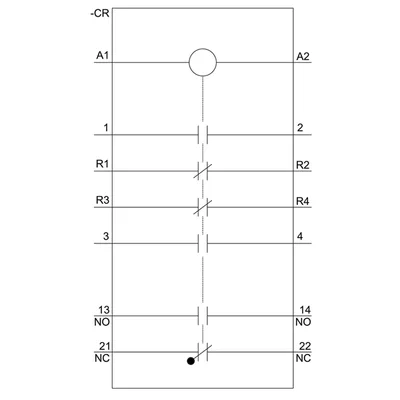

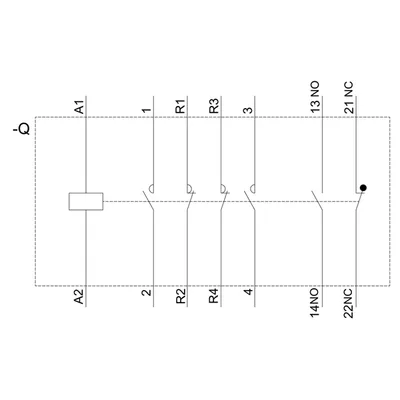

Siemens 3RT2536-1AB00

power contactor, AC-3, 41 A, 22 kW / 400 V, 4-pole, 24 V AC, 50 Hz, main contacts: 2 NO + 2 NC, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S2

SiemensMFR # 3RT2536-1AB00SKU # CEY-8EF3B0392CE4

product brand nameSIRIUS

product designationcontactor

product type designation3RT25

size of contactorS2

function module for communicationNo

auxiliary switchYes

Have questions?Chat on WhatsApp

About This Product

power contactor, AC-3, 41 A, 22 kW / 400 V, 4-pole, 24 V AC, 50 Hz, main contacts: 2 NO + 2 NC, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S2

Siemens 3RT2536-1AB00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationcontactor

product type designation3RT25

General technical data

size of contactorS2

function module for communicationNo

auxiliary switchYes

at AC in hot operating state per pole4 W

without load current share typical6.5 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value690 V

of auxiliary circuit with degree of pollution 3 rated value690 V

of main circuit rated value6 kV

of auxiliary circuit rated value6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1400 V

at AC11.8 g / 5 ms, 7.4 g / 10 ms

at AC18.5 g / 5 ms, 11.6 g / 10 ms

of contactor typical10 000 000

of the contactor with added electronically optimized auxiliary switch block typical5 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)10/01/2014

Net Weight1.094 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-40 ... +70 °C

during storage-55 ... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit4

number of NO contacts for main contacts2

number of NC contacts for main contacts2

— at ambient temperature 40 °C rated value70 A

— at ambient temperature 60 °C rated value60 A

— per NO contact rated value41 A

— per NC contact rated value41 A

minimum cross-section in main circuit at maximum AC-1 rated value25 mm²

— at 24 V rated value60 A

— at 110 V rated value4.5 A

— at 220 V rated value1 A

— at 440 V rated value0.4 A

— at 24 V rated value55 A

— at 110 V rated value45 A

— at 220 V rated value5 A

— at 440 V rated value1 A

— at 24 V per NC contact rated value35 A

— at 24 V per NO contact rated value35 A

— at 110 V per NC contact rated value1.25 A

— at 110 V per NO contact rated value2.5 A

— at 220 V per NC contact rated value0.5 A

— at 220 V per NO contact rated value1 A

— at 440 V per NC contact rated value0.045 A

— at 440 V per NO contact rated value0.1 A

— at 24 V per NC contact rated value55 A

— at 24 V per NO contact rated value55 A

— at 110 V per NC contact rated value12.5 A

— at 110 V per NO contact rated value25 A

— at 220 V per NC contact rated value2.5 A

— at 220 V per NO contact rated value5 A

— at 440 V per NC contact rated value0.135 A

— at 440 V per NO contact rated value0.27 A

at 230 V per NC contact rated value15 kW

at 230 V per NO contact rated value15 kW

at 400 V per NC contact rated value22 kW

at 400 V per NO contact rated value22 kW

limited to 1 s switching at zero current maximum546 A; Use minimum cross-section acc. to AC-1 rated value

limited to 5 s switching at zero current maximum443 A; Use minimum cross-section acc. to AC-1 rated value

limited to 10 s switching at zero current maximum334 A; Use minimum cross-section acc. to AC-1 rated value

limited to 30 s switching at zero current maximum241 A; Use minimum cross-section acc. to AC-1 rated value

limited to 60 s switching at zero current maximum196 A; Use minimum cross-section acc. to AC-1 rated value

power loss [W] at AC-3 at 400 V for rated value of the operational current per conductor4 W

power loss [W] at AC-3e at 400 V for rated value of the operational current per conductor4 W

at AC5 000 1/h

at AC-1 maximum1 000 1/h

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz rated value24 V

at 50 Hz0.8 ... 1.1

apparent pick-up power of magnet coil at AC190 V·A

at 50 Hz190 V·A

inductive power factor with closing power of the coil0.72

at 50 Hz0.72

apparent holding power of magnet coil at AC16 V·A

at 50 Hz16 V·A

inductive power factor with the holding power of the coil0.37

at 50 Hz0.37

at AC10 ... 80 ms

at AC10 ... 18 ms

arcing time10 ... 20 ms

control version of the switch operating mechanismAC

Auxiliary circuit

number of NC contacts for auxiliary contacts instantaneous contact1

number of NO contacts for auxiliary contacts instantaneous contact1

operational current at AC-12 maximum10 A

at 230 V rated value6 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0.15 A

at 24 V rated value10 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0.9 A

at 220 V rated value0.3 A

at 600 V rated value0.1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

for 3-phase AC motor at 460/480 V rated value25 hp

contact rating of auxiliary contacts according to ULA600 / P600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0.4 kA

— with type of coordination 1 requiredgG: 160 A (690 V, 100 kA)

— with type of coordination 2 requiredgG: 80 A (690 V, 100 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (690 V, 1 kA)

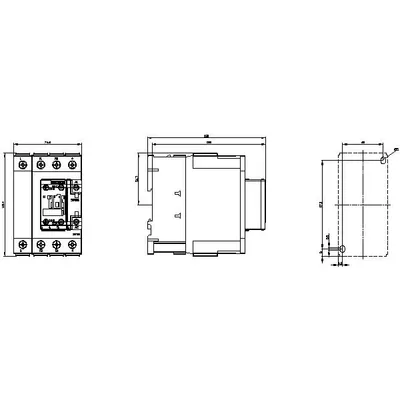

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening method side-by-side mountingYes

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022

height114 mm

width75 mm

depth130 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— at the side10 mm

— downwards50 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— downwards50 mm

— at the side10 mm

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

— solid2x (1 ... 35 mm²), 1x (1 ... 50 mm²)

— solid or stranded2x (1 ... 35 mm²), 1x (1 ... 50 mm²)

— finely stranded with core end processing2x (1 ... 25 mm²), 1x (1 ... 35 mm²)

for AWG cables for main contacts2x (18 ... 2), 1x (18 ... 1)

— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14)

AWG number as coded connectable conductor cross section for main contacts18 ... 1

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 14

Safety related data

mirror contact according to IEC 60947-4-1Yes

positively driven operation according to IEC 60947-5-1No

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
