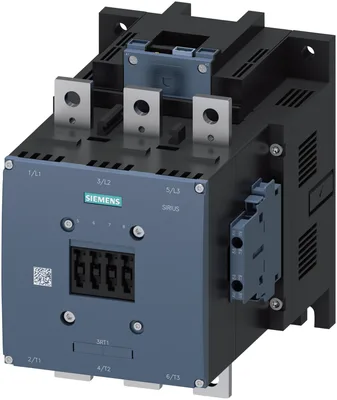

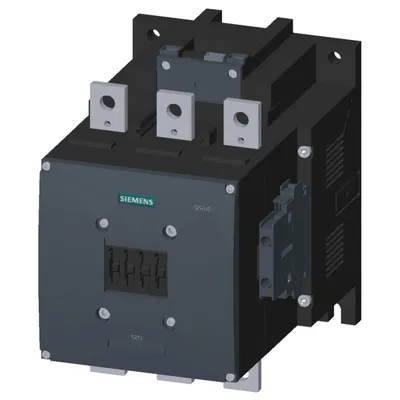

Siemens 3RT1476-6NP36

power contactor AC-1 690 A / 690 V / 40 °C 3-pole, Uc: 200-277 V AC(50-60 Hz) / DC PLC input 24 V DC drive: electronic auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal

SiemensMFR # 3RT1476-6NP36SKU # CEY-8EF3B039392C

product brand nameSIRIUS

product designationContactor

product type designation3RT14

size of contactorS12

function module for communicationNo

auxiliary switchYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3RT1476-6NP36

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationContactor

product type designation3RT14

General technical data

size of contactorS12

function module for communicationNo

auxiliary switchYes

at AC in hot operating state185.7 W

at AC in hot operating state per pole61.9 W

without load current share typical3.6 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value1 000 V

of auxiliary circuit with degree of pollution 3 rated value500 V

of main circuit rated value8 kV

of auxiliary circuit rated value6 kV

at AC8,5 g / 5 ms, 4,2 g / 10 ms

at DC8,5 g / 5 ms, 4,2 g / 10 ms

at AC13,4 g / 5 ms, 6,5 g / 10 ms

at DC13,4 g / 5 ms, 6,5 g / 10 ms

of contactor typical10 000 000

of the contactor with added electronically optimized auxiliary switch block typical5 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight10.111 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

type of voltage for main current circuitAC

— up to 690 V at ambient temperature 40 °C rated value690 A

— up to 690 V at ambient temperature 55 °C rated value600 A

— up to 690 V at ambient temperature 60 °C rated value600 A

— at 400 V rated value170 A

— at 690 V rated value170 A

minimum cross-section in main circuit at maximum AC-1 rated value480 mm²

— at 24 V rated value500 A

— at 60 V rated value500 A

— at 110 V rated value33 A

— at 220 V rated value3.8 A

— at 440 V rated value0.9 A

— at 600 V rated value0.6 A

— at 24 V rated value500 A

— at 60 V rated value500 A

— at 110 V rated value500 A

— at 220 V rated value500 A

— at 440 V rated value4 A

— at 600 V rated value2 A

— at 24 V rated value500 A

— at 60 V rated value500 A

— at 110 V rated value500 A

— at 220 V rated value500 A

— at 440 V rated value11 A

— at 600 V rated value5.2 A

— at 24 V rated value500 A

— at 60 V rated value11 A

— at 110 V rated value3 A

— at 220 V rated value0.6 A

— at 440 V rated value0.18 A

— at 600 V rated value0.125 A

— at 24 V rated value500 A

— at 60 V rated value500 A

— at 110 V rated value500 A

— at 220 V rated value2.5 A

— at 440 V rated value0.65 A

— at 600 V rated value0.37 A

— at 24 V rated value500 A

— at 60 V rated value500 A

— at 110 V rated value500 A

— at 220 V rated value500 A

— at 440 V rated value1.4 A

— at 600 V rated value0.75 A

at AC1 000 1/h

at DC1 000 1/h

at AC-1 maximum600 1/h

Control circuit/ Control

type of voltageAC/DC

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value200 ... 277 V

at 60 Hz rated value200 ... 277 V

control supply voltage at DC rated value200 ... 277 V

initial value0.8

full-scale value1.1

at 50 Hz0.8 ... 1.1

at 60 Hz0.8 ... 1.1

type of PLC-control input according to IEC 60947-1Type 2

consumed current at PLC-control input according to IEC 60947-1 maximum20 mA

design of the surge suppressorwith varistor

— at 50 Hz560 V·A

— at 60 Hz560 V·A

— at 60 Hz750 V·A

— at 50 Hz750 V·A

at 50 Hz750 V·A

at 50 Hz0.8

at minimum rated control supply voltage at DC3 V·A

at maximum rated control supply voltage at DC3.6 V·A

— at 50 Hz5.6 V·A

— at 60 Hz5.6 V·A

— at 50 Hz9 V·A

— at 60 Hz9 V·A

at 50 Hz7 V·A

at 50 Hz0.8

closing power of magnet coil at DC800 W

holding power of magnet coil at DC3.6 W

at AC60 ... 90 ms

at DC60 ... 90 ms

at AC80 ... 100 ms

at DC80 ... 100 ms

arcing time10 ... 15 ms

control version of the switch operating mechanismPLC-IN or Standard A1 - A2 (adjustable)

Auxiliary circuit

number of NC contacts for auxiliary contacts2

attachable4

instantaneous contact2

number of NO contacts for auxiliary contacts2

attachable4

instantaneous contact2

operational current at AC-12 maximum10 A

at 230 V rated value6 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0.9 A

at 220 V rated value0.3 A

at 600 V rated value0.1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0.4 kA

— with type of coordination 1 requiredgG: 800 A (690 V, 50 kA)

— with type of coordination 2 requiredgR: 710 A (690 V, 100 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

Installation/ mounting/ dimensions

mounting positionwith vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back

fastening method side-by-side mountingYes

fastening methodscrew fixing

height214 mm

width160 mm

depth225 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards20 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

for main current circuitConnection bar

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

width of connection bar25 mm

thickness of connection bar6 mm

diameter of holes11 mm

number of holes1

for AWG cables for main contacts2/0 ... 500 kcmil

solid or stranded70 ... 240 mm²

stranded70 ... 240 mm²

solid or stranded0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)

— solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14), 1x 12

AWG number as coded connectable conductor cross section for auxiliary contacts18 ... 14

Safety related data

mirror contact according to IEC 60947-4-1Yes

positively driven operation according to IEC 60947-5-1No

service life maximum20 a

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with box terminal/cover

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front with box terminal/cover
