How can I get a price quote for Siemens 3RS7002-1CE00?

You can request a fast quote for Siemens 3RS7002-1CE00 from Yılsa Engineering. Reference part number CEY-937FC780C3A0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RS7002-1CE00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RS7002-1CE00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RS7002-1CE00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

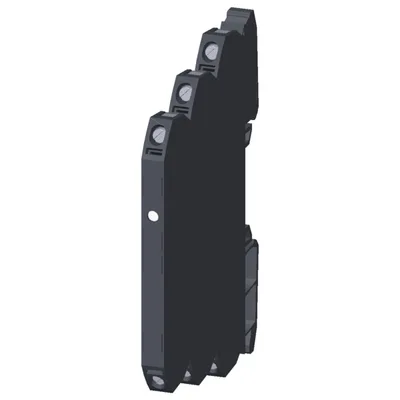

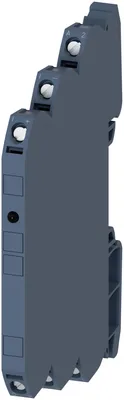

Siemens 3RS7002-1CE00

Separation amplifier 24 V AC/DC, 3-way separation input: 0-20 mA output: 0-20 mA screw terminal

SiemensMFR # 3RS7002-1CE00SKU # CEY-937FC780C3A0

product brand nameSIRIUS

product categorySignal converter

product designationSingle-range converters

design of the productactive

product type designation3RS70

display version LEDYes

Have questions?Chat on WhatsApp

About This Product

Separation amplifier 24 V AC/DC, 3-way separation input: 0-20 mA output: 0-20 mA screw terminal

Siemens 3RS7002-1CE00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categorySignal converter

product designationSingle-range converters

design of the productactive

product type designation3RS70

General technical data

display version LEDYes

number of channels1

consumed active power0.29 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value50 V

surge voltage resistance rated value2 500 V

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

vibration resistance according to IEC 60068-2-66 ... 150 Hz: 2 g

reference code according to IEC 81346-2T

Substance Prohibitance (day/month/year)03/25/2015

Net Weight0.047 kg

Supply voltage

at 50 Hz rated value24 V

at 60 Hz rated value24 V

supply voltage at DC rated value24 V

supply voltage frequency rated value60 ... 50 Hz

at AC at 50 Hz0.8 ... 1.1

at AC at 60 Hz0.8 ... 1.1

at DC0.8 ... 1.1

Precision

relative metering precision0.1 %

relative linearity deviation0.05 %

temperature drift per °C0.015 %/°C

voltage ripple maximum20 mV

limit frequency30 Hz

settling time for 1 % deviation17 ms

rise time6 ms

Main circuit

type of voltageAC/DC

Inputs/ Outputs

input voltage maximum30 V

property of the output short-circuit proofYes

type of signal at input0 ... 20 mA

type of signal at output0 ... 20 mA

input impedance of current input maximum100 Ω

at the current output maximum500 Ω

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1Environment B

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-41 kV 5/50 ns

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

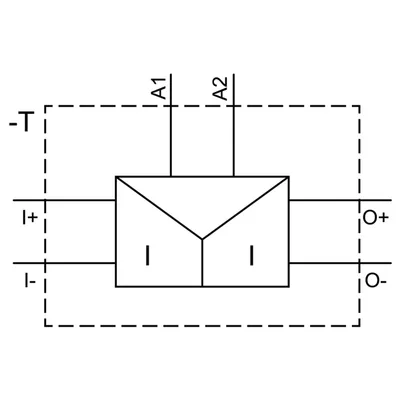

design of the electrical isolation3 paths

between input and outputYes

between the outputsNo

between the inputsNo

between the voltage supply and other circuitsYes

Connections/ Terminals

type of electrical connectionscrew terminal

solid1x (0.25 ... 2.5 mm²)

finely stranded with core end processing1x (0.25 ... 1.5 mm²)

for AWG cables solid1x (20 ... 14)

solid0.25 ... 2.5 mm²

finely stranded with core end processing0.25 ... 1.5 mm²

solid20 ... 14

tightening torque with screw-type terminals0.5 ... 0.6 N·m

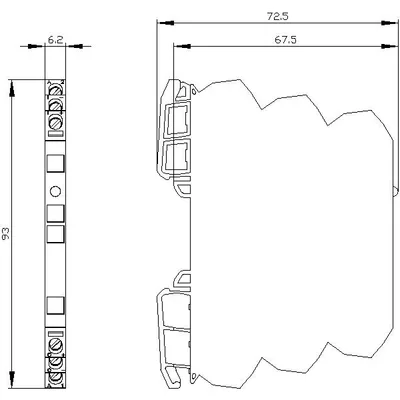

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height93 mm

width6.2 mm

depth72.5 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

relative humidity during operation10 ... 95 %

Accessories 6

Genuine accessories that can be used with the Siemens 3RS7002-1CE00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RQ3901-0A	Aksesuar · Connecting combs
3RQ3901-0B	Aksesuar · Connecting combs
3RQ3901-0C	Aksesuar · Connecting combs
3RQ3901-0D	Aksesuar · Connecting combs
3RQ3900-0A	Aksesuar · Galvanic isolation plates
3RQ3902-0A	Aksesuar · Clip-on labels
