How can I get a price quote for Siemens 3RS1000-2CK10?

You can request a fast quote for Siemens 3RS1000-2CK10 from Yılsa Engineering. Reference part number CEY-8EF3B0394B57. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RS1000-2CK10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RS1000-2CK10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RS1000-2CK10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

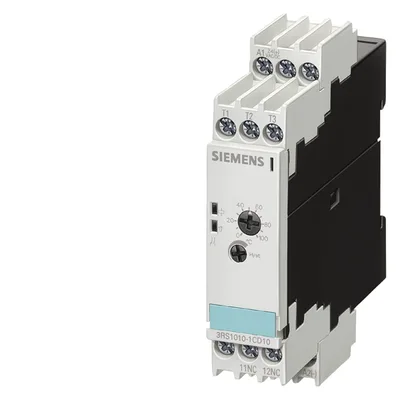

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3RS1000-2CK10

temperature monitoring relay Pt100, overshoot 1 threshold value, width 22.5 mm 0 °C to 100 °C 110-120/220-240 V AC 1 NO + 1 NC, quiescent current principle spring-loaded terminal !!!product phase-out!!! the preferred successor is 3RS2500-2AW30

SiemensMFR # 3RS1000-2CK10SKU # CEY-8EF3B0394B57

product brand nameSIRIUS

product designationTemperature monitoring relay

design of the productOvershoot, 1 threshold value

product type designation3RS10

power loss [W] maximum2 W

power loss [V∙A] maximum4 V·A

Have questions?Chat on WhatsApp

About This Product

Siemens 3RS1000-2CK10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationTemperature monitoring relay

design of the productOvershoot, 1 threshold value

product type designation3RS10

General technical data

power loss [W] maximum2 W

power loss [V∙A] maximum4 V·A

reference code according to IEC 81346-2K

initial value0 °C

full-scale value100 °C

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.155 kg

error memoryNo

external resetNo

design of the sensor connectablePT100 (resistance sensor)

Control circuit/ Control

type of voltageAC

at 50 Hz rated value110 V

at 60 Hz rated value110 V

at 50 Hz rated value230 V

at 60 Hz rated value230 V

supply voltage frequency for auxiliary and control circuit50 ... 60 Hz

number of measuring circuits1
