How can I get a price quote for Siemens 3RQ3118-2AE00?

You can request a fast quote for Siemens 3RQ3118-2AE00 from Yılsa Engineering. Reference part number CEY-8EF3B03940C5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RQ3118-2AE00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RQ3118-2AE00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RQ3118-2AE00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

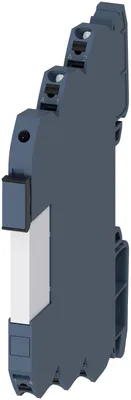

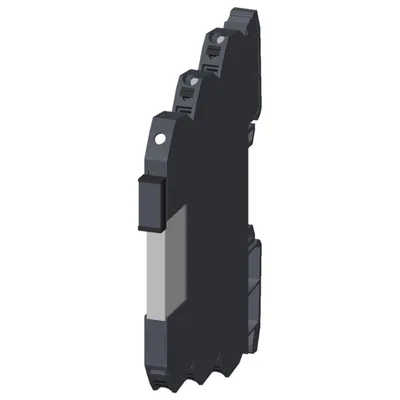

Siemens 3RQ3118-2AE00

!!! phased-out product !!! the preferred successor is 3RQ4118-2AE00 output coupler with plug-in relay, 1 change-over contact spring-loaded terminal (push-in) 115 V AC/DC enclosure width 6.2 mm thermal current 6 A

SiemensMFR # 3RQ3118-2AE00SKU # CEY-8EF3B03940C5

product brand nameSIRIUS

product designationCoupling relays with plug-in relay

design of the productOutput coupling link

product type designation3RQ3

display version LEDYes

relay outputYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3RQ3118-2AE00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categorySIRIUS 3RQ3 coupling relays in slim design

product designationCoupling relays with plug-in relay

design of the productOutput coupling link

product type designation3RQ3

General technical data

display version LEDYes

product feature protective coating on printed-circuit boardNo

relay outputYes

semi-conductor outputNo

consumed active power0.5 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

surge voltage resistance rated value4 kV

between control and auxiliary circuit300 V

percental drop-out voltage related to the input voltage9.6 %

flammability class of enclosure materialUL94 V-0

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-66 ... 150 Hz: 2 g

operating frequency maximum72 000 1/h

switching behaviormonostable

mechanical service life (operating cycles) typical10 000 000

thermal current6 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)03/25/2015

Net Weight0.031 kg

Control circuit/ Control

at 50 Hz rated value115 V

at 60 Hz rated value115 V

1 rated value50 Hz

2 rated value60 Hz

control supply voltage at DC rated value115 V

initial value0.8

full-scale value1.1

initial value0.8

full-scale value1.1

initial value0.8

full-scale value1.1

at AC maximum8 ms

at DC maximum6 ms

OFF-delay time maximum17 ms

Mechanical data

product component plug-in socketYes

design of the relay operating mechanismpoled

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 4 A

Auxiliary circuit

type of switching contactChange-over contact

material of switching contactsAgSnO2

number of CO contacts for auxiliary contacts1

at 24 V3 A

at 250 V3 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)

Main circuit

type of voltageAC/DC

Inputs/ Outputs

property of the output short-circuit proofNo

ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1ambience A (industrial sector)

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Display

display version as status display by LEDLED green

Connections/ Terminals

product function removable terminalNo

for auxiliary and control circuitspring-loaded terminals (push-in)

solid1x (0.25 ... 2.5 mm²)

finely stranded with core end processing1x (0.25 ... 1.5 mm²)

finely stranded without core end processing1x (0.25 ... 2.5 mm²)

for AWG cables solid1x (20 ... 14)

for AWG cables stranded1x (20 ... 14)

solid0.25 ... 2.5 mm²

finely stranded with core end processing0.25 ... 1.5 mm²

finely stranded without core end processing0.25 ... 2.5 mm²

solid20 ... 14

stranded20 ... 14

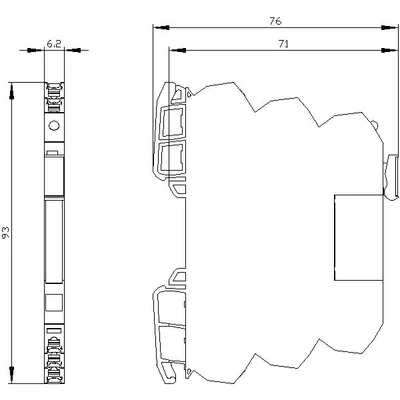

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height93 mm

width6.2 mm

depth76 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity during operation10 ... 95 %

Accessories 4

Genuine accessories that can be used with the Siemens 3RQ3118-2AE00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RQ3901-0A	Aksesuar · Connecting combs
3RQ3901-0B	Aksesuar · Connecting combs
3RQ3901-0C	Aksesuar · Connecting combs
3RQ3901-0D	Aksesuar · Connecting combs
