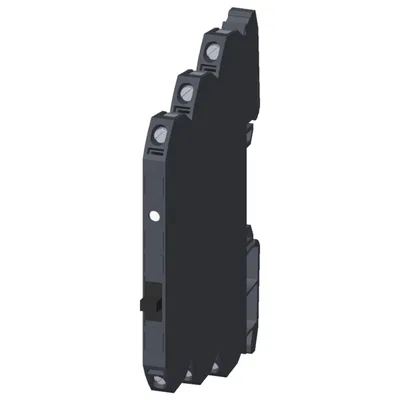

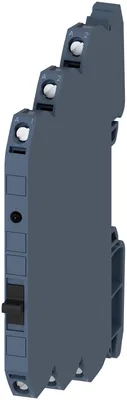

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3RQ3065-1SM30

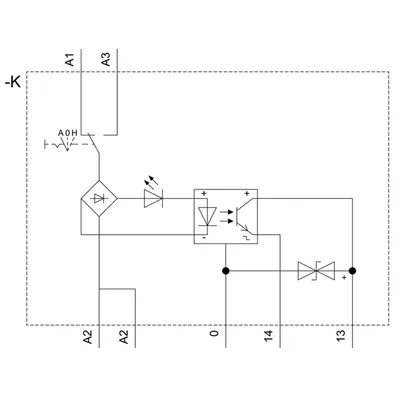

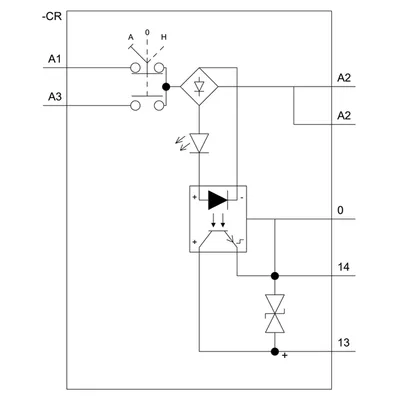

!!! phased-out product !!! the preferred successor is 3RQ4128-1AB30 output coupler optocoupler 1 NO, transistor, 24 V DC output max. 30 V DC, 5 A with M-0-A switch short-circuit-proof screw terminal width 6.2 mm thermal current 5 A

SiemensMFR # 3RQ3065-1SM30SKU # CEY-8EF3B02C962C

product brand nameSIRIUS

design of the productOutput coupling link

product type designation3RQ3

display version LEDYes

relay outputNo

semi-conductor outputYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3RQ3065-1SM30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categorySIRIUS 3RQ3 coupling relays in slim design

product designationCoupling relays with semiconductor output (not plug-in)

design of the productOutput coupling link

product type designation3RQ3

General technical data

display version LEDYes

product feature protective coating on printed-circuit boardNo

relay outputNo

semi-conductor outputYes

consumed active power0.3 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value50 V

surge voltage resistance rated value2.5 kV

flammability class of enclosure materialUL94 V-0

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-66 ... 150 Hz: 2 g

switching frequency100 Hz

thermal current5 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)03/25/2015

Net Weight0.032 kg

Control circuit/ Control

control supply voltage at DC rated value11 ... 30 V

initial value1

full-scale value1

minimum switching voltage when switching on11 V

maximum switching voltage when switching off5 V

at DC maximum0.2 ms

OFF-delay time maximum0.3 ms

Mechanical data

product component plug-in socketNo

Auxiliary circuit

type of switching contactNO contact

number of NO contacts for auxiliary contacts1

Main circuit

type of voltageDC

Inputs/ Outputs

property of the output short-circuit proofYes

switching voltage of the semiconductor output at DC10 ... 30 V

ampacity of the semiconductor output at DC5 mA

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1ambience A (industrial sector)

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Display

display version as status display by LEDLED green

Connections/ Terminals

product function removable terminalNo

for auxiliary and control circuitscrew-type terminals

solid1x (0.25 ... 2.5 mm²)

finely stranded with core end processing1x (0.25 ... 1.5 mm²)

for AWG cables solid1x (20 ... 14)

solid0.25 ... 2.5 mm²

finely stranded with core end processing0.25 ... 1.5 mm²

solid20 ... 14

tightening torque with screw-type terminals0.5 ... 0.6 N·m

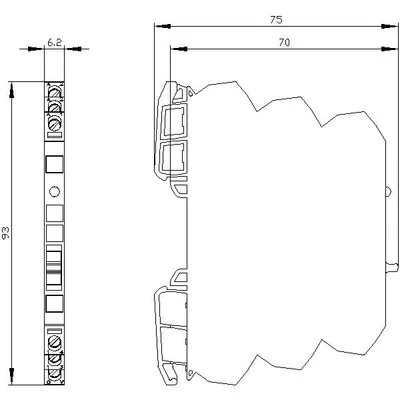

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height93 mm

width6.2 mm

depth75 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity during operation10 ... 95 %
