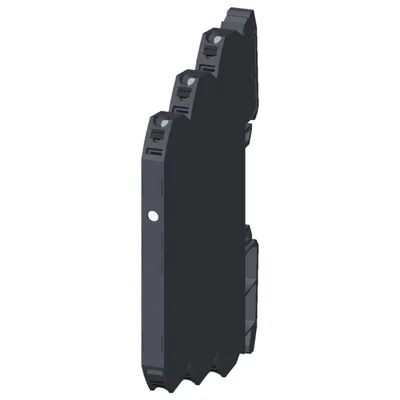

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3RQ3018-2AB01

!!! phased-out product !!! the preferred successor is 3RQ4018-2AB01 output coupler 1 change-over contact hard gold-plated 24 V AC/DC enclosure width 6.2 mm spring-loaded terminal (push-in) thermal current 6 A

SiemensMFR # 3RQ3018-2AB01SKU # CEY-937FC77DF5F9

product brand nameSIRIUS

design of the productOutput coupling link

product type designation3RQ3

display version LEDYes

relay outputYes

semi-conductor outputNo

Have questions?Chat on WhatsApp

About This Product

Siemens 3RQ3018-2AB01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categorySIRIUS 3RQ3 coupling relays in slim design

product designationCoupling relays with relay output (not plug-in)

design of the productOutput coupling link

product type designation3RQ3

General technical data

display version LEDYes

product feature protective coating on printed-circuit boardNo

relay outputYes

semi-conductor outputNo

consumed active power0.3 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

surge voltage resistance rated value4 kV

between control and auxiliary circuit300 V

percental drop-out voltage related to the input voltage10 %

flammability class of enclosure materialUL94 V-0

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-66 ... 150 Hz: 2 g

operating frequency maximum72 000 1/h

switching behaviormonostable

mechanical service life (operating cycles) typical10 000 000

thermal current6 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)03/25/2015

Net Weight0.034 kg

Control circuit/ Control

at 50 Hz rated value24 V

at 60 Hz rated value24 V

1 rated value50 Hz

2 rated value60 Hz

control supply voltage at DC rated value24 V

initial value0.8

full-scale value1.25

initial value0.8

full-scale value1.25

initial value0.8

full-scale value1.25

at AC maximum12 ms

at DC maximum12 ms

OFF-delay time maximum14 ms

Mechanical data

product component plug-in socketNo

design of the relay operating mechanismpoled

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 4 A

Auxiliary circuit

type of switching contactChange-over contact

material of switching contactsAgSnO2 hard gold-plated

number of CO contacts for auxiliary contacts1

at 24 V3 A

at 250 V3 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (5 V, 1 mA)

Main circuit

type of voltageAC/DC

Inputs/ Outputs

property of the output short-circuit proofNo

ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1ambience A (industrial sector)

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Display

display version as status display by LEDLED green

Connections/ Terminals

product function removable terminalNo

for auxiliary and control circuitspring-loaded terminals (push-in)

solid1x (0.25 ... 2.5 mm²)

finely stranded with core end processing1x (0.25 ... 1.5 mm²)

finely stranded without core end processing1x (0.25 ... 2.5 mm²)

for AWG cables solid1x (20 ... 14)

for AWG cables stranded1x (20 ... 14)

solid0.25 ... 2.5 mm²

finely stranded with core end processing0.25 ... 1.5 mm²

finely stranded without core end processing0.25 ... 2.5 mm²

solid20 ... 14

stranded20 ... 14

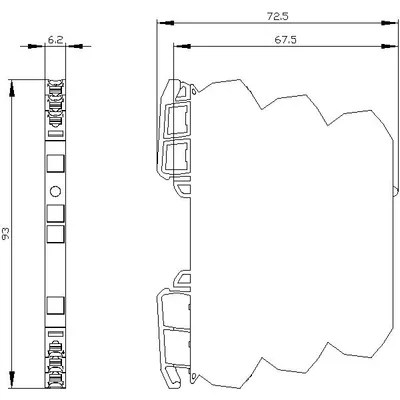

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height93 mm

width6.2 mm

depth72.5 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity during operation10 ... 95 %

Accessories 4

Genuine accessories that can be used with the Siemens 3RQ3018-2AB01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RQ3901-0A	Aksesuar · Connecting combs
3RQ3901-0B	Aksesuar · Connecting combs
3RQ3901-0C	Aksesuar · Connecting combs
3RQ3901-0D	Aksesuar · Connecting combs
