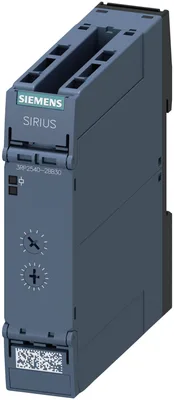

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3RP2540-2BB30

Timing relay, electronic OFF delay without control signal or smooth passing make contact non-volatile 7 time ranges 0.05...600 s 24 V AC/DC, 2 change-over contacts with LED, Spring-type terminal (push-in)

SiemensMFR # 3RP2540-2BB30SKU # CEY-8EF3B02D961B

product brand nameSIRIUS

product designationtiming relay

product type designation3RP25

relay outputYes

semi-conductor outputNo

power loss [W] maximum2 W

Have questions?Chat on WhatsApp

About This Product

Siemens 3RP2540-2BB30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationtiming relay

design of the productOFF-delay without control signal, non-volatile, passing make contact

product type designation3RP25

General technical data

product feature protective coating on printed-circuit boardNo

relay outputYes

semi-conductor outputNo

product extension required remote controlNo

product extension optional remote controlNo

power loss [W] maximum2 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

test voltage for isolation test2.5 kV

degree of pollution3

surge voltage resistance rated value4 000 V

shock resistance according to IEC 60068-2-2711 g / 15 ms

vibration resistance according to IEC 60068-2-610 ... 55 Hz / 0.35 mm

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

adjustable time0.05 ... 600 s

adjustable time noteminimum value at function N = 0.5 s

relative setting accuracy relating to full-scale value5 %; +/-

thermal current5 A

ON period/maximum minimum250 ms

recovery time250 ms

reference code according to IEC 81346-2K

relative repeat accuracy1 %; +/-

influence of the surrounding temperature1% in the whole temperature range to the set runtime

power supply influence1% in the whole voltage range to the set runtime

Substance Prohibitance (day/month/year)09/12/2014

SVHC substance nameLead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.129 kg

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value24 V

at 60 Hz rated value24 V

at 50 Hz rated value24 V

at 60 Hz rated value24 V

control supply voltage frequency 150 ... 60 Hz

control supply voltage at DC rated value24 V

control supply voltage 1 at DC rated value24 V

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

at 24 V2 A

at 24 V1 ms

Switching Function

ON-delayNo

ON-delay/instantaneous contactNo

passing make contactYes

passing make contact/instantaneous contactNo

OFF delayYes

flashing symmetrically with interval start/instantaneousNo

flashing symmetrically with interval startNo

flashing symmetrically with pulse start/instantaneousNo

flashing symmetrically with pulse startNo

flashing asymmetrically with interval startNo

flashing asymmetrically with pulse startNo

star-delta circuit with delay timeNo

star-delta circuitNo

additive ON-delayNo

passing break contactNo

passing break contact/instantaneousNo

OFF delayNo

OFF delay/instantaneousNo

pulse delayedNo

pulse delayed/instantaneousNo

pulse-shapingNo

pulse-shaping/instantaneousNo

additive ON-delay/instantaneousNo

ON-delay/OFF-delay/instantaneousNo

passing make contactNo

passing make contact/instantaneous contactNo

retrotriggerable with deactivated control signal/instantaneous contactNo

retrotriggerable with switched-on control signalNo

retrotriggerable with switched-on control signal/instantaneous contactNo

retriggerable with deactivated control signalNo

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A

Auxiliary circuit

material of switching contactsAgSnO2

delayed switching0

instantaneous contact0

delayed switching0

instantaneous contact0

delayed switching2

instantaneous contact0

at 24 V3 A

at 250 V3 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

operating frequency with 3RT2 contactor maximum5 000 1/h

contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)

switching capacity current with inductive load0.01 ... 3 A

Inputs/ Outputs

at the relay outputs switchover delayed/without delayNo

non-volatileYes

at 24 V1 A

at 125 V0.2 A

Electromagnetic compatibility

EMC emitted interference according to IEC 61812-1ambience A (industrial sector)

EMC immunity according to IEC 61812-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

Safety related data

category according to EN 954-1none

Electrical Safety

protection class IP on the front according to IEC 60529IP20

type of insulationBasic insulation

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionspring-loaded terminal (push-in)

for auxiliary and control circuitspring-loaded terminals (push-in)

solid1x (0.5 ... 4 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²)

finely stranded without core end processing0.5 ... 4 mm²

for AWG cables solid1x (20 ... 12)

for AWG cables stranded20 ... 12

solid0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

finely stranded without core end processing0.5 ... 4 mm²

solid20 ... 12

stranded20 ... 12

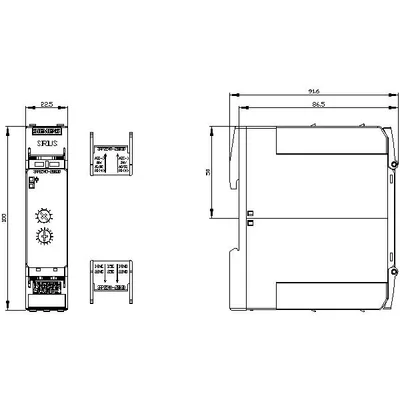

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

height100 mm

width22.5 mm

depth90 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity during operation10 ... 95 %

Accessories 7

Genuine accessories that can be used with the Siemens 3RP2540-2BB30 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3ZY1311-0AA00	Aksesuar · Further accessories
3ZY1321-2AA00	Aksesuar · Further accessories
3ZY1440-1AA00	Aksesuar · Further accessories
3ZY1122-2BA00	Aksesuar · Removable terminals
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3ZY1450-1AB00	Aksesuar · Further accessories
