How can I get a price quote for Siemens 3RP2505-2CW30?

You can request a fast quote for Siemens 3RP2505-2CW30 from Yılsa Engineering. Reference part number CEY-8EF3B02D9612. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RP2505-2CW30 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RP2505-2CW30 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RP2505-2CW30?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

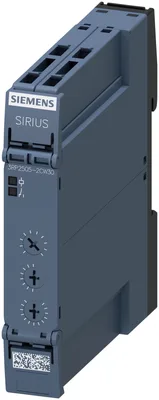

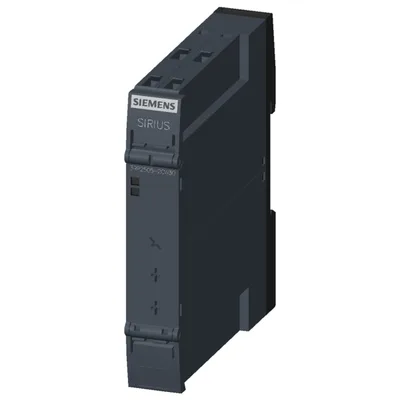

Siemens 3RP2505-2CW30

Timing relay, Multifunction 1 NO semiconductor 13 functions 7 time ranges (0.05 s...100 h) 12-240 V AC/DC at 50/60 Hz AC with LED, Spring-type terminal (push-in)

SiemensMFR # 3RP2505-2CW30SKU # CEY-8EF3B02D9612

product brand nameSIRIUS

product designationtiming relay

design of the product13 functions

product type designation3RP25

relay outputNo

semi-conductor outputYes

Have questions?Chat on WhatsApp

About This Product

Timing relay, Multifunction 1 NO semiconductor 13 functions 7 time ranges (0.05 s...100 h) 12-240 V AC/DC at 50/60 Hz AC with LED, Spring-type terminal (push-in)

Siemens 3RP2505-2CW30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationtiming relay

design of the product13 functions

product type designation3RP25

General technical data

product feature protective coating on printed-circuit boardNo

relay outputNo

semi-conductor outputYes

product extension required remote controlNo

product extension optional remote controlNo

power loss [W] maximum2 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

test voltage for isolation test2.5 kV

degree of pollution3

surge voltage resistance rated value4 000 V

shock resistance according to IEC 60068-2-2711 g / 15 ms

vibration resistance according to IEC 60068-2-610 ... 55 Hz / 0.35 mm

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical300 000

adjustable time0.05 s ... 100 h

relative setting accuracy relating to full-scale value5 %; +/-

thermal current1 A

ON period/maximum minimum35 ms

recovery time400 ms

reference code according to IEC 81346-2K

relative repeat accuracy1 %; +/-

influence of the surrounding temperature1% in the whole temperature range to the set runtime

power supply influence1% in the whole voltage range to the set runtime

Substance Prohibitance (day/month/year)09/12/2014

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.109 kg

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value12 ... 240 V

at 60 Hz rated value12 ... 240 V

at 50 Hz12 ... 240 V

at 60 Hz12 ... 240 V

control supply voltage frequency 150 ... 60 Hz

control supply voltage at DC rated value12 ... 240 V

control supply voltage 1 at DC12 ... 240 V

initial value0.8

full-scale value1.1

initial value0.8

full-scale value1.1

initial value0.8

full-scale value1.1

at 24 V0.5 A

at 240 V5 A

at 24 V0.4 ms

at 240 V0.5 ms

Switching Function

ON-delayYes

ON-delay/instantaneous contactNo

passing make contactYes

passing make contact/instantaneous contactNo

OFF delayNo

flashing symmetrically with interval start/instantaneousNo

flashing symmetrically with interval startYes

flashing symmetrically with pulse start/instantaneousNo

flashing symmetrically with pulse startYes

flashing asymmetrically with interval startNo

flashing asymmetrically with pulse startNo

star-delta circuit with delay timeNo

star-delta circuitNo

additive ON-delayYes

passing break contactYes

passing break contact/instantaneousNo

OFF delayYes

OFF delay/instantaneousNo

pulse delayedYes

pulse delayed/instantaneousNo

pulse-shapingYes

pulse-shaping/instantaneousNo

additive ON-delay/instantaneousNo

ON-delay/OFF-delay/instantaneousNo

passing make contactYes

passing make contact/instantaneous contactNo

retrotriggerable with deactivated control signal/instantaneous contactNo

retrotriggerable with switched-on control signalYes

retrotriggerable with switched-on control signal/instantaneous contactNo

retriggerable with deactivated control signalYes

design of the control terminal non-floatingYes

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A

Auxiliary circuit

delayed switching0

instantaneous contact0

delayed switching1

instantaneous contact0

delayed switching0

instantaneous contact0

at 24 V1 A

at 250 V1 A

at 24 V1 A

at 125 V1 A

at 250 V1 A

operating frequency with 3RT2 contactor maximum5 000 1/h

switching capacity current with inductive load0.01 ... 1 A

Inputs/ Outputs

at the relay outputs switchover delayed/without delayNo

non-volatileNo

residual current maximum0.5 mA

Electromagnetic compatibility

EMC emitted interference according to IEC 61812-1ambience A (industrial sector)

EMC immunity according to IEC 61812-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

Safety related data

category according to EN 954-1none

Electrical Safety

protection class IP on the front according to IEC 60529IP20

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionspring-loaded terminal (push-in)

for auxiliary and control circuitspring-loaded terminals (push-in)

solid1x (0.5 ... 4 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²)

finely stranded without core end processing0.5 ... 4 mm²

for AWG cables solid1x (20 ... 12)

for AWG cables stranded20 ... 12

solid0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

finely stranded without core end processing0.5 ... 4 mm²

solid20 ... 12

stranded20 ... 12

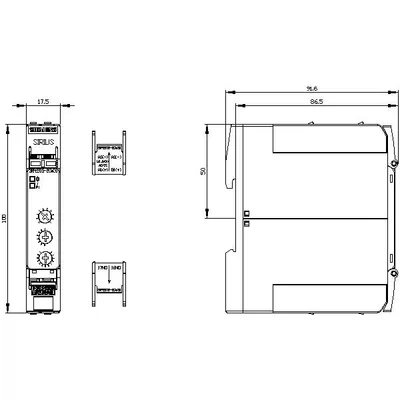

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

height100 mm

width17.5 mm

depth90 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity during operation10 ... 95 %

Accessories 7

Genuine accessories that can be used with the Siemens 3RP2505-2CW30 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3ZY1311-0AA00	Aksesuar · Further accessories
3ZY1440-1AA00	Aksesuar · Further accessories
3ZY1122-2BA00	Aksesuar · Removable terminals
3ZY1321-1AA00	Aksesuar · Further accessories
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3ZY1450-1AA00	Aksesuar · Further accessories
