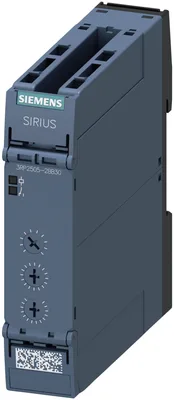

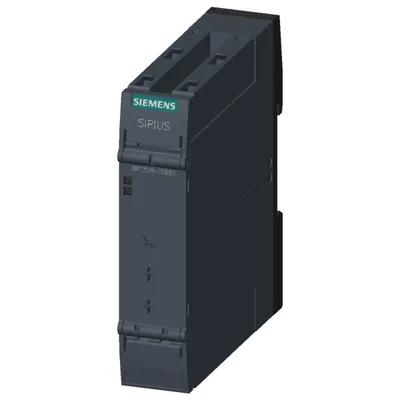

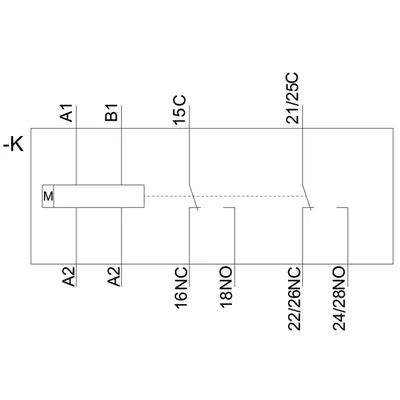

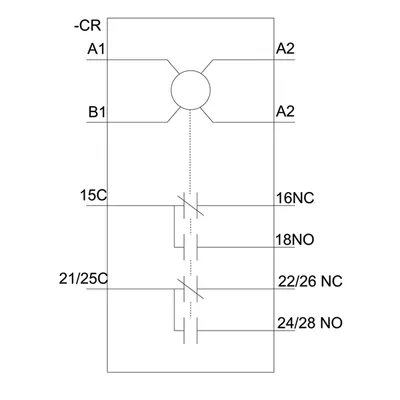

Siemens 3RP2505-2BB30

Timing relay, Multifunction 2 change-over contacts, 27 functions 7 time ranges (0.05 s...100 h) 24 V AC/DC at 50/60 Hz AC with LED Spring-type terminal (push-in)

SiemensMFR # 3RP2505-2BB30SKU # CEY-8EF3B02D962E

product brand nameSIRIUS

product designationtiming relay

design of the product27 functions

product type designation3RP25

relay outputYes

semi-conductor outputNo

Have questions?Chat on WhatsApp

About This Product

Timing relay, Multifunction 2 change-over contacts, 27 functions 7 time ranges (0.05 s...100 h) 24 V AC/DC at 50/60 Hz AC with LED Spring-type terminal (push-in)

Siemens 3RP2505-2BB30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationtiming relay

design of the product27 functions

product type designation3RP25

General technical data

product feature protective coating on printed-circuit boardNo

relay outputYes

semi-conductor outputNo

product extension required remote controlNo

product extension optional remote controlNo

power loss [W] maximum2 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

test voltage for isolation test2.5 kV

degree of pollution3

surge voltage resistance rated value4 000 V

shock resistance according to IEC 60068-2-2711 g / 15 ms

vibration resistance according to IEC 60068-2-610 ... 55 Hz / 0.35 mm

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

adjustable time0.05 s ... 100 h

relative setting accuracy relating to full-scale value5 %; +/-

thermal current5 A

ON period/maximum minimum35 ms

recovery time150 ms

reference code according to IEC 81346-2K

relative repeat accuracy1 %; +/-

influence of the surrounding temperature1% in the whole temperature range to the set runtime

power supply influence1% in the whole voltage range to the set runtime

Substance Prohibitance (day/month/year)09/12/2014

SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.133 kg

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value24 V

at 60 Hz rated value24 V

at 50 Hz rated value24 V

at 60 Hz rated value24 V

control supply voltage frequency 150 ... 60 Hz

control supply voltage at DC rated value24 V

control supply voltage 1 at DC rated value24 V

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

at 24 V2 A

at 24 V1 ms

Switching Function

ON-delayYes

ON-delay/instantaneous contactYes

passing make contactYes

passing make contact/instantaneous contactYes

OFF delayNo

flashing symmetrically with interval start/instantaneousYes

flashing symmetrically with interval startYes

flashing symmetrically with pulse start/instantaneousYes

flashing symmetrically with pulse startYes

flashing asymmetrically with interval startNo

flashing asymmetrically with pulse startNo

star-delta circuit with delay timeNo

star-delta circuitYes

additive ON-delayYes

passing break contactYes

passing break contact/instantaneousYes

OFF delayYes

OFF delay/instantaneousYes

pulse delayedYes

pulse delayed/instantaneousYes

pulse-shapingYes

pulse-shaping/instantaneousYes

additive ON-delay/instantaneousYes

ON-delay/OFF-delay/instantaneousYes

passing make contactYes

passing make contact/instantaneous contactYes

retrotriggerable with deactivated control signal/instantaneous contactYes

retrotriggerable with switched-on control signalYes

retrotriggerable with switched-on control signal/instantaneous contactYes

retriggerable with deactivated control signalYes

design of the control terminal non-floatingYes

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A

Auxiliary circuit

material of switching contactsAgSnO2

delayed switching0

instantaneous contact0

delayed switching0

instantaneous contact0

delayed switching2

instantaneous contact0

at 24 V3 A

at 250 V3 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

operating frequency with 3RT2 contactor maximum5 000 1/h

contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)

contact rating of auxiliary contacts according to ULR300 / B300

switching capacity current with inductive load0.01 ... 3 A

Inputs/ Outputs

at the relay outputs switchover delayed/without delayYes

non-volatileNo

at 24 V1 A

at 125 V0.2 A

Electromagnetic compatibility

EMC emitted interference according to IEC 61812-1ambience A (industrial sector)

EMC immunity according to IEC 61812-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

Safety related data

category according to EN 954-1none

Electrical Safety

protection class IP on the front according to IEC 60529IP20

type of insulationBasic insulation

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionspring-loaded terminal (push-in)

for auxiliary and control circuitspring-loaded terminals (push-in)

solid1x (0.5 ... 4 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²)

finely stranded without core end processing0.5 ... 4 mm²

for AWG cables solid1x (20 ... 12)

for AWG cables stranded20 ... 12

solid0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

finely stranded without core end processing0.5 ... 4 mm²

solid20 ... 12

stranded20 ... 12

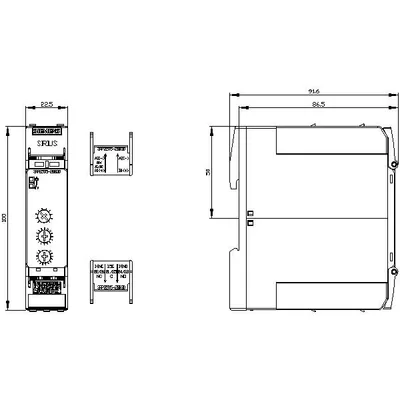

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

height100 mm

width22.5 mm

depth90 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity during operation10 ... 95 %
